TMS-1LB - Lawn-Boy String Trimmer (SN: 900000001 - 999999999) (1959) MODEL TMS-1LB TRACTOR Parts Diagram

String Trimmer

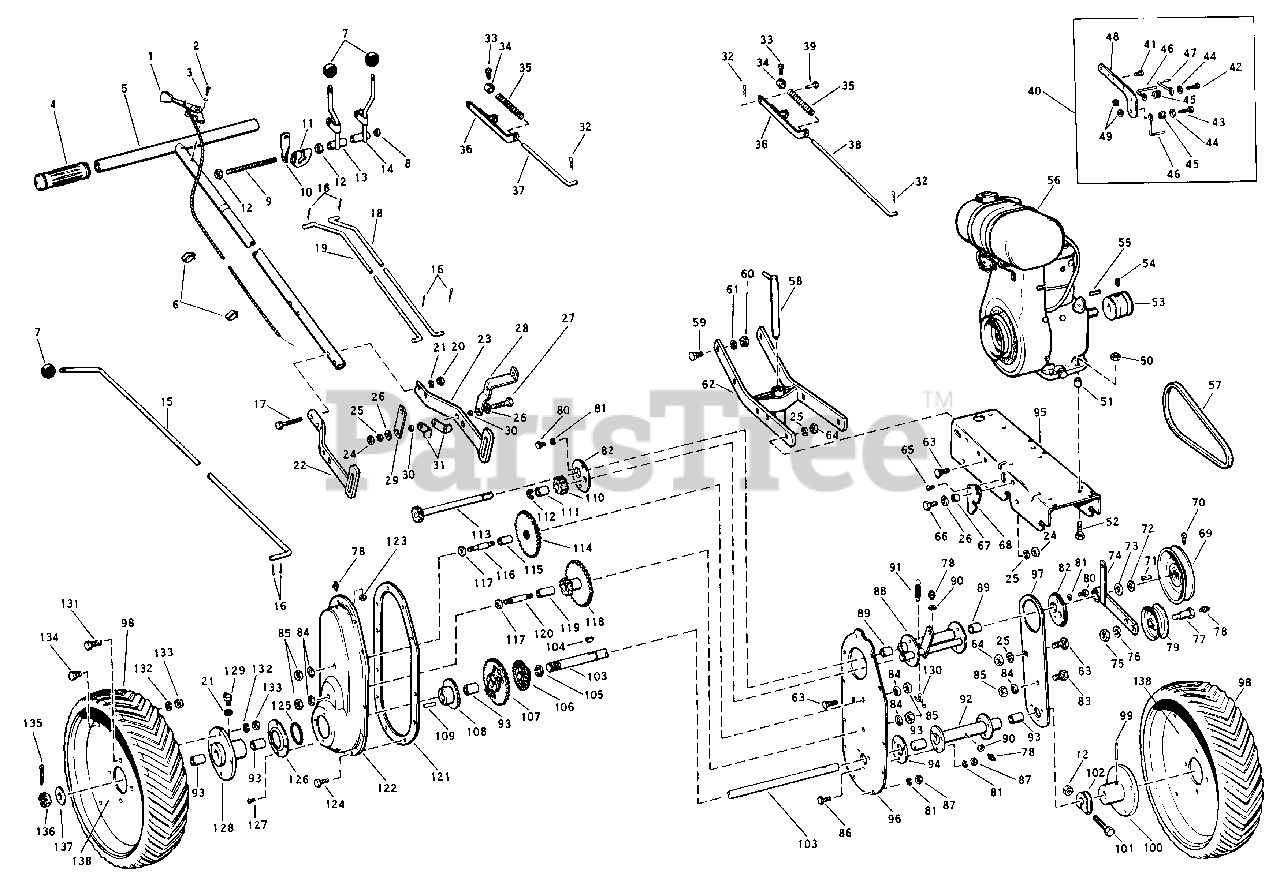

MODEL TMS-1LB TRACTOR Parts Diagram

  • Title

1

Lawn-Boy 45038

Throttle Cable Assembly

$

$

Currently unavailable

2

Lawn-Boy 42302

Machine Screw #10-32 x 3/8 Lg.

$3.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 42251

Lockwasher #10

$

$

Currently unavailable

4

Lawn-Boy 42281

Grip

$

$

Currently unavailable

5

Lawn-Boy 32123

Handle Bar Tube Assembly

$

$

Currently unavailable

6

Lawn-Boy 45041

Cable Clip

$

$

Currently unavailable

7

Lawn-Boy 43501

Knob 5/16-18

$

$

Currently unavailable

8

Lawn-Boy 44687

Retaining Ring Truarc 5555-37

$

$

Currently unavailable

9

Lawn-Boy 45022

Control Shaft

$

$

Currently unavailable

10

Lawn-Boy 45034

Shift Rod Support

$

$

Currently unavailable

11

Lawn-Boy 43691

Collar

$

$

Currently unavailable

12

Lawn-Boy 43082

Hex Nut 3/8-24

$

$

Not available

13

Lawn-Boy 45023

Control Lever Assembly RH

$

$

Currently unavailable

14

Lawn-Boy 45024

Control Lever Assembly LH

$

$

Currently unavailable

15

Lawn-Boy 45035

Shift Rod

$

$

Currently unavailable

16

Lawn-Boy 42275

Cotter Pin 3/32 x 3/4 Lg.

$

$

Not available

17

Lawn-Boy 43427

Hex Hd. Capscrew 5/16-18 x 2 Lg.

$

$

Currently unavailable

18

Lawn-Boy 45029

Control Rod LH

$

$

Currently unavailable

19

Lawn-Boy 45028

Control Rod RH

$

$

Currently unavailable

20

Lawn-Boy 43540

Hex Nut 5/16-18

$

$

Currently unavailable

21

Lawn-Boy 42368

Lockwasher 5/16

$

$

Not available

22

Lawn-Boy 32233

RH Handle Bar Bracket Assy.

$

$

Currently unavailable

23

Lawn-Boy 32234

LH Handle Bar Bracket Assy.

$

$

Currently unavailable

24

Lawn-Boy 43681

Hex Jam Nut 3/8-16

$

$

Currently unavailable

25

Lawn-Boy 42735

Lockwasher 3/8

$

$

Currently unavailable

26

Lawn-Boy 42910

Washer 3/8

$3.23

$

Usually ships in 3-6 days

0

27

Lawn-Boy 44351

Hex Head Capscrew 3/8-16 x 1-1/2 Lg.

$

$

Currently unavailable

28

Lawn-Boy 45017

Implement Lever

$

$

Currently unavailable

29

Lawn-Boy 45399

Clutch Lever

$

$

Currently unavailable

30

Lawn-Boy 45020

Spacer 5/8 x 3/8 ID x 7/32 Lg.

$

$

Currently unavailable

31

Lawn-Boy 45019

Stop Lever

$

$

Currently unavailable

32

Lawn-Boy 44638

Spring Clip

$

$

Currently unavailable

33

Lawn-Boy 42984

Set Screw

$

$

Currently unavailable

34

Lawn-Boy 43203

Set Collar

$

$

Currently unavailable

35

Lawn-Boy 44691

Control Spring

$

$

Currently unavailable

36

Lawn-Boy 45030

Spring Bracket Assembly

$

$

Currently unavailable

37

Lawn-Boy 45032

Transmission Control Spring Rod

$

$

Currently unavailable

38

Lawn-Boy 45033

Implement Control Spring Rod

$

$

Currently unavailable

39

Lawn-Boy 44692

Pin

$

$

Currently unavailable

40

Lawn-Boy 32125

Belt Guide Assembly

$

$

Currently unavailable

41

Lawn-Boy 44398

Machine Screw and Washer 5/16-18 x 1/2 Lg.

$

$

Currently unavailable

42

Lawn-Boy 42436

Hex Head Capscrew 5/16-18 x 1-1/4 Lg.

$3.23

$

Usually ships in 3-6 days

0

43

Lawn-Boy 44913

Hex Head Capscrew 5/16-18 x 1-1/8 Lg.

$

$

Currently unavailable

44

Lawn-Boy 42309

Washer 5/16

$

$

Currently unavailable

45

Lawn-Boy 44562

Spring

$

$

Currently unavailable

46

Lawn-Boy 45015

Belt Guide

$

$

Currently unavailable

47

Lawn-Boy 45243

Front Belt Guide

$

$

Currently unavailable

48

Lawn-Boy 44559

Belt Guide Bracket

$

$

Currently unavailable

49

Lawn-Boy 42308

Hex Jam Nut 5/16-18

$

$

Currently unavailable

50

Lawn-Boy 44405

Nut and Washer 5/16-18

$

$

Currently unavailable

51

Lawn-Boy 44243

Spacer

$

$

Currently unavailable

52

Lawn-Boy 45460

Hex Head Capscrew 5/16-18 x 1-1/4 Lg.

$

$

Currently unavailable

53

Lawn-Boy 45395

Engine Sheave, 2 Groove 2-1/4 OD

$

$

Currently unavailable

54

Lawn-Boy 44350

Set Screw 5/16-18 x 1/4 Lg.

$

$

Currently unavailable

55

Lawn-Boy 42269

Key 3/16 Sq. x 1-1/8 Lg.

$

$

Currently unavailable

56

Lawn-Boy 44555

Engine, Clinton B-1290

$

$

Currently unavailable

57

Lawn-Boy 42499

"V" Belt 36" A Section

$

$

Not available

58

Lawn-Boy 43620

Hitch Pin Assembly

$

$

Currently unavailable

59

Lawn-Boy 43236

Carriage Bolt 3/8-16 x 1 Lg.

$

$

Currently unavailable

60

Lawn-Boy 42921

Hex Nut 3/8-16

$

$

Not available

61

Lawn-Boy 42384

Lockwasher 3/8

$

$

Not available

62

Lawn-Boy 21363

Frame Assembly

$

$

Currently unavailable

63

Lawn-Boy 42709

Carriage Bolt 3/8-16 x 1-1/4 Lg.

$

$

Currently unavailable

64

Lawn-Boy 42761

Hex Nut 3/8-16

$

$

Currently unavailable

65

Lawn-Boy 44813

Drive Screw #10 x 3/8 Lg. P-K Type U

$

$

Currently unavailable

66

Lawn-Boy 42688

Hex Head Capscrew 3/8-16 x 3/4 Lg.

$

$

Currently unavailable

67

Lawn-Boy 44815

Spacer 3/8 ID x 5/8 OD x 1/8 Thick

$

$

Currently unavailable

68

Lawn-Boy 44814

Hitch Latch

$

$

Currently unavailable

69

Lawn-Boy 44716

Pulley 5.4 OD x 5/8 Bore

$

$

Currently unavailable

70

Lawn-Boy 45219

Set Screw 5/16-18 x 5/8 Lg.

$

$

Currently unavailable

71

Lawn-Boy 42865

Key 3/16 Sq. x 3/4 Lg.

$

$

Not available

72

Lawn-Boy 44527

Retaining Ring Truarc 5100-62

$

$

Currently unavailable

73

Lawn-Boy 43444

Washer

$

$

Currently unavailable

74

Lawn-Boy 44983

Idler Pulley Lever Assembly

$

$

Currently unavailable

75

Lawn-Boy 44789

Hex Jam Nut 1/2-20

$

$

Currently unavailable

76

Lawn-Boy 43644

Lockwasher 1/2

$

$

Currently unavailable

77

Lawn-Boy 44570

Idler Pulley Shaft

$

$

Currently unavailable

78

Lawn-Boy 42643

Grease Fitting 1/4-28 Straight

$

$

Currently unavailable

79

Lawn-Boy 44569

Idler Pulley

$

$

Currently unavailable

80

Lawn-Boy 43093

Capscrew 1/4-28 x 1/2 Lg.

$

$

Currently unavailable

81

Lawn-Boy 42849

Lockwasher 1/4

$

$

Not available

82

Lawn-Boy 45400

Pilot Assembly

$

$

Currently unavailable

83

Lawn-Boy 44965

Hex Head Capscrew 7/16-14 x 3/4 Lg.

$

$

Currently unavailable

84

Lawn-Boy 44989

Lockwasher 7/16, Shakeproof

$

$

Currently unavailable

85

Lawn-Boy 43811

Hex Jam Nut 7/16-14

$

$

Currently unavailable

86

Lawn-Boy 43820

Hex Head Capscrew 1/4-20 x 5/8 Lg.

$

$

Currently unavailable

87

Lawn-Boy 42380

Hex Nut 1/4-20

$

$

Currently unavailable

88

Lawn-Boy 32195

Input Tube and Idler Shaft Assy.

$

$

Currently unavailable

89

Lawn-Boy 44134

Bushing (Oilite)

$

$

Currently unavailable

90

Lawn-Boy 42244

Lockwasher 1/4

$

$

Currently unavailable

91

Lawn-Boy 45036

Shift Rod Spring

$

$

Currently unavailable

92

Lawn-Boy 44966

Axle Tube Assembly

$

$

Currently unavailable

93

Lawn-Boy 44607

Bushing (Oilite)

$

$

Currently unavailable

94

Lawn-Boy 44969

Axle Tube Gasket 1/32 Thick

$

$

Currently unavailable

95

Lawn-Boy 10734

Engine Mount

$

$

Currently unavailable

96

Lawn-Boy 21361

Back Plate

$

$

Currently unavailable

97

Lawn-Boy 32113

Left Support Plate

$

$

Currently unavailable

98

Lawn-Boy 32115

Tire 4 x 16

$1.49

$

In Stock, Qty 11

0

99

Lawn-Boy 44447

Roll Pin 1/4 x 1-3/4 Lg.

$

$

Currently unavailable

100

Lawn-Boy 45012

Left Wheel Hub

$

$

Currently unavailable

101

Lawn-Boy 42954

Hex Head Capscrew 3/8-24 x 2 Lg.

$3.23

$

Usually ships in 3-6 days

0

102

Lawn-Boy 44999

Collar

$

$

Currently unavailable

103

Lawn-Boy 44998

Axle

$

$

Currently unavailable

104

Lawn-Boy 43686

Woodruff Key #505

$

$

Currently unavailable

105

Lawn-Boy 44798

Retaining Ring, 3/4 Shaft, Truarc 5100-75

$

$

Currently unavailable

106

Lawn-Boy 44960

Left Differential Gear

$

$

Currently unavailable

107

Lawn-Boy 45000

Final Drive Gear and Differential Pinion Assembly

$

$

Currently unavailable

108

Lawn-Boy 45413

Right Differential Gear

$

$

Currently unavailable

109

Lawn-Boy 45414

Roll Pin 1/4 x 1-1/8 Lg.

$

$

Currently unavailable

110

Lawn-Boy 45401

Idler Pinion Assembly

$

$

Currently unavailable

111

Lawn-Boy 45530

Bushing (Oilite)

$

$

Currently unavailable

112

Lawn-Boy 43348

Retaining Ring

$

$

Currently unavailable

113

Lawn-Boy 44980

Input Gear Assembly

$

$

Currently unavailable

114

Lawn-Boy 44990

First Intermediate Gear and Pinion Assembly

$

$

Currently unavailable

115

Lawn-Boy 44993

Bushing (Oilite)

$

$

Currently unavailable

116

Lawn-Boy 44987

First Intermediate Shaft

$

$

Currently unavailable

117

Lawn-Boy 45545

Washer

$

$

Currently unavailable

118

Lawn-Boy 44994

Second Intermediate Gear and Pinion Assembly

$

$

Currently unavailable

119

Lawn-Boy 44997

Bushing (Oilite)

$

$

Currently unavailable

120

Lawn-Boy 44988

Second Intermediate Shaft

$

$

Currently unavailable

121

Lawn-Boy 32119

Gear Case Cover Gasket

$3.23

$

Usually ships in 3-6 days

0

122

Lawn-Boy 21437

Gear Case Cover

$

$

Currently unavailable

123

Lawn-Boy 42351

Hex Jam Nut 1/4-28

$

$

Not available

124

Lawn-Boy 44764

Hex Head Capscrew 1/4-20 x 1/2 Lg.

$

$

Currently unavailable

125

Lawn-Boy 44547

Ring (Neoprene)

$

$

Currently unavailable

126

Lawn-Boy 44546

Oil Seal Retainer

$

$

Currently unavailable

127

Lawn-Boy 42496

Self Tapping Screw #8-32 x 1/4 Lg.

$

$

Not available

128

Lawn-Boy 45415

Right Wheel Hub Assembly

$

$

Currently unavailable

129

Lawn-Boy 42878

Grease Fitting 5/16-32
(Superseded to 42878-03)

$

$

Not available

130

Lawn-Boy 45037

Spring Anchor

$

$

Currently unavailable

131

Lawn-Boy 45013

Hex Hd. Capscrew 5/16-18 x 1 Lg.

$

$

Currently unavailable

132

Lawn-Boy 42922

Lockwasher 5/16

$

$

Not available

133

Lawn-Boy 42923

Hex Nut 5/16-18

$

$

Not available

134

Lawn-Boy 45014

Hex Head Capscrew 5/16-18 x 5/8 Lg.

$

$

Currently unavailable

135

Lawn-Boy 42652

Cotter Pin 1/8 x 1-1/2 Lg.

$

$

Not available

136

Lawn-Boy 45176

Slotted Hex Nut 3/4-10

$

$

Currently unavailable

137

Lawn-Boy 45011

Washer 3/4

$

$

Currently unavailable

138

Lawn-Boy 32114

Half Wheel Rim

$

$

Currently unavailable
