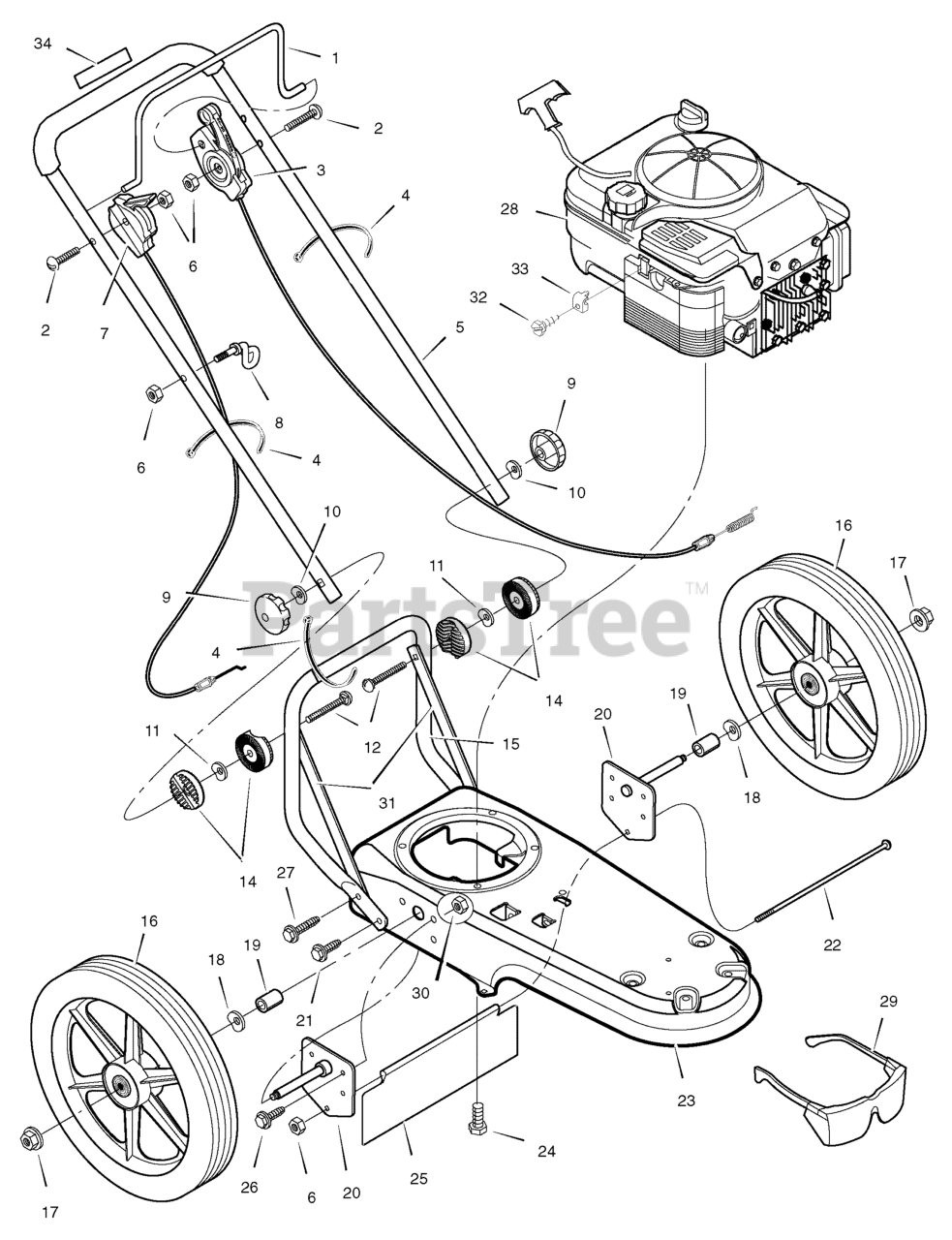

TM6000x11NB - Murray Walk-Behind Trimmer (2007) Handle And Wheels Parts Diagram

Walk-Behind Trimmer

Handle And Wheels Parts Diagram

  • Title
1

Murray MU740198E701MA

LEVER, Stop

$

$

Currently unavailable

$

$

Currently unavailable

3

Murray MU740193MA

CABLE, Control Latching

$

$

Currently unavailable

4

Murray MU071372MA

TIE, Cable

$

$

Currently unavailable

5

$

$

Currently unavailable

$

$

Currently unavailable

7

Murray MU1601039MA

CONTROL, Throttle

$

$

Currently unavailable

8

Murray MU672510MA

GUIDE, Rope

$

$

Currently unavailable

9

Murray MU740202MA

KNOB, Handlebar

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray MU711936MA

WASHER, Spring

$

$

Currently unavailable

$

$

Currently unavailable

14

Murray MU740158MA

PIVOT, Handlebar

$

$

Currently unavailable

15

Murray MU740195E701MA

HANDLEBAR, Lower

$

$

Currently unavailable

16

Murray MU740185MA

WHEEL & TIRE

$

$

Currently unavailable

17

Murray MU015X84MA

NUT, Axle

$

$

Currently unavailable

18

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Murray MU740188MA

ASSEMBLY, Axle & Bracket

$

$

Currently unavailable

$

$

Currently unavailable

22

Murray MU711935MA

BOLT, Carriage

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

25

Murray MU740192MA

SHIELD, Trailing

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

28

ENGINE

Note: (Engine Model: 122H02020134B1)

$

$

Not available

29

Murray MU711890MA

PROTECTION, Eye

$

$

Currently unavailable

$

$

Currently unavailable

31

Murray MU1601040MA

SUPPORT, Handle

$

$

Currently unavailable

$

$

Currently unavailable

33

Murray MU042294MA

CLAMP, Throttle

$

$

Currently unavailable

34

Murray MU712409MA

DECAL, Engine Stop

$

$

Currently unavailable

--

Murray MU407002

DECAL, Powertrim

Note: (Not shown)

$

$

Currently unavailable

--

Murray MU410087

DECAL, Hayter

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray MU713006

DECAL, Warning

Note: (Not shown)

$

$

Currently unavailable

--

Murray 1740514

INSTRUCTION BOOK & PARTS LIST

$

$

Currently unavailable
