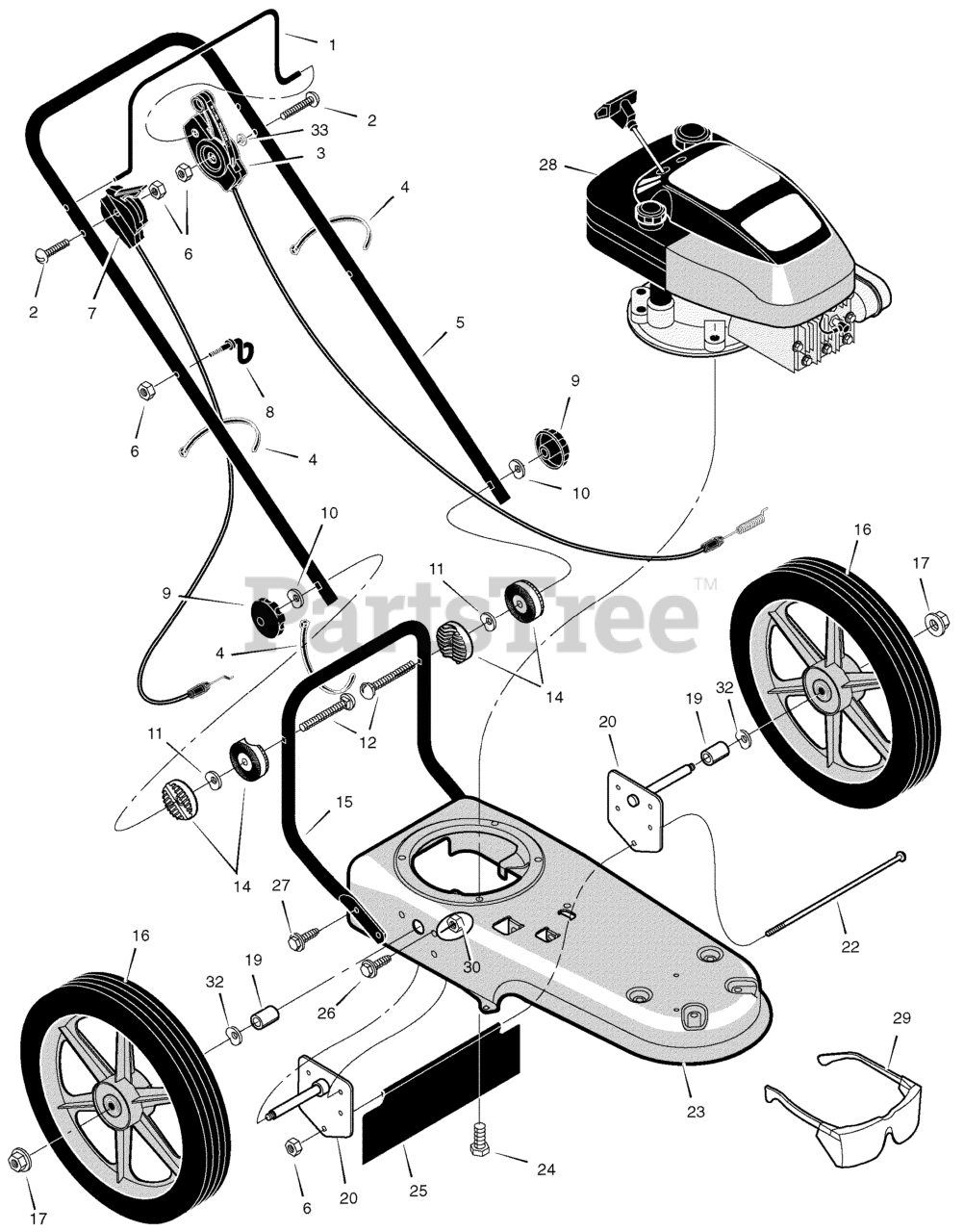

TM5000x89B - Yard King Walk-Behind Trimmer (2004) Mower Housing & Handle Assembly Parts Diagram

Walk-Behind Trimmer

Mower Housing & Handle Assembly Parts Diagram

  • Title

1

Murray 740198E020

Lever, Stop

$

$

Currently unavailable

2

Murray 323035

Bolt

$4.49

$

Usually ships in 2-12 days

0

3

Murray 740193

Cable, Control Latching

$

$

Not available

4

Murray 71372

Tie, Cable

$4.49

$

In Stock, only 1 left!

0

5

Murray 740196E701

Handle

$

$

Not available

6

Murray 15X116

Nut

$4.49

$

In Stock, Qty 20+

0

7

Murray 740194

Control, Throttle

$25.99

$

In Stock, only 3 left!

0

8

Murray 672510

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

9

Murray 740202

Knob, Handle

$

$

Not available

10

Murray 783000

Washer

$5.49

$

Usually ships in 2-12 days

0

11

Murray 711936

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

12

Murray 711937

Bolt

$192.99

$

Usually ships in 2-12 days

0

14

Murray 740158

Pivot, Handle

$

$

Not available

15

Murray 740195E701

Handle, Lower

$170.99

$

Usually ships in 2-12 days

0

16

Murray 740185

Wheel & Tire

$74.99

$

Usually ships in 2-12 days

0

17

Murray 710140

Nut, Axle

$10.99

$

Usually ships in 2-12 days

0

19

Murray 740190

Spacer

$5.49

$

Usually ships in 2-12 days

0

20

Murray 740188

Assembly, Axle & Bracket

$48.99

$

Usually ships in 2-12 days

0

22

Murray 711935

Bolt, Carriage

$8.49

$

Usually ships in 2-12 days

0

23

Murray 740150E020

Frame, Trimmer

$193.99

$

Usually ships in 2-12 days

0

24

Murray 0025X6

Bolt
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

25

Murray 740192

Shield, Trailing

$25.99

$

Usually ships in 2-12 days

0

26

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

27

Murray 26X274

Screw

$3.99

$

Usually ships in 2-12 days

0

28

Engine *

$

$

Not available

29

Murray 711890

Protection, Eye

$

$

Not available

30

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

32

Murray 0020X3

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

33

Murray 672292

Spacer, PM .26x.5x.2

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040203L

Instruction Book & Parts List

$

$

Currently unavailable
