TM5000x89A - Yard King Walk-Behind Trimmer (2000) Illustrated Parts List Parts Diagram

Walk-Behind Trimmer

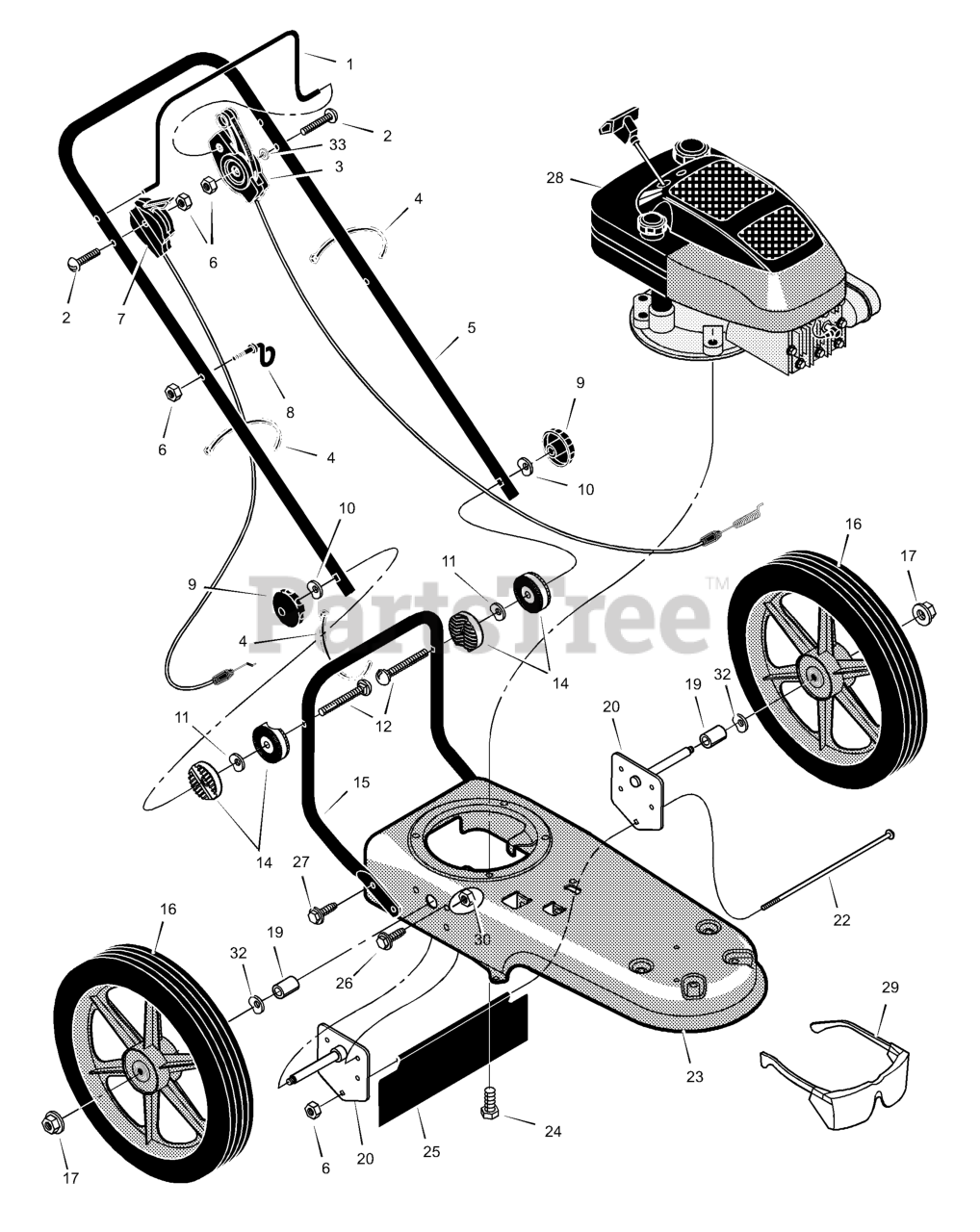

Illustrated Parts List Parts Diagram

  • Title

1

Murray 740198-823

Lever, Stop

$

$

Currently unavailable

2

Murray 323035MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

3

Murray 740193MA

Cable, Control Latching

$57.99

$

Usually ships in 2-12 days

0

4

Murray 712267

Tie, Cable

$3.99

$

Usually ships in 2-12 days

0

5

Murray 740196-846

Handle

$10.99

$

Usually ships in 2-12 days

0

6

Murray 710203

Nut

$19.99

$

Usually ships in 2-12 days

0

7

Murray 740194

Control, Throttle

$25.99

$

In Stock, only 3 left!

0

8

Murray 672510MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

9

Murray 740202

Knob, Handle

$

$

Not available

10

Murray 783000MA

Washer

$5.49

$

Usually ships in 2-12 days

0

11

Murray 711936MA

Washer, Spring

$4.99

$

Usually ships in 2-12 days

0

12

Murray 711937MA

Bolt

$33.99

$

Usually ships in 2-12 days

0

14

Murray 740158

Pivot, Handle

$

$

Not available

15

Murray 740195-846

Handle, Lower

$

$

Currently unavailable

16

Murray 740185

Wheel & Tire

$74.99

$

Usually ships in 2-12 days

0

17

Murray 710140

Nut, Axle

$10.99

$

Usually ships in 2-12 days

0

19

Murray 740190MA

Spacer

$5.49

$

Usually ships in 2-12 days

0

20

Murray 740188MA

Assembly, Axle & Bracket

$48.99

$

Usually ships in 2-12 days

0

22

Murray 711935

Bolt, Carriage

$8.49

$

Usually ships in 2-12 days

0

23

Murray 740150-823

Frame, Trimmer

$

$

Currently unavailable

24

Murray 710265

Bolt

$23.99

$

Usually ships in 2-12 days

0

25

Murray 740192MA

Shield, Trailing

$25.99

$

Usually ships in 2-12 days

0

26

Murray 48901

Bolt
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

27

Murray 710079

Screw

$

$

Not available

28

Engine *

$

$

Not available

29

Murray 711890

Protection, Eye

$

$

Not available

30

Murray 710205

Nut

$14.99

$

In Stock, only 1 left!

0

32

Murray 710258

Washer, Spring

$10.99

$

Usually ships in 2-12 days

0

33

Murray 672292MA

Spacer, PM .26x.5x.2

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-000209M

Instruction Book & Parts List

$

$

Currently unavailable
