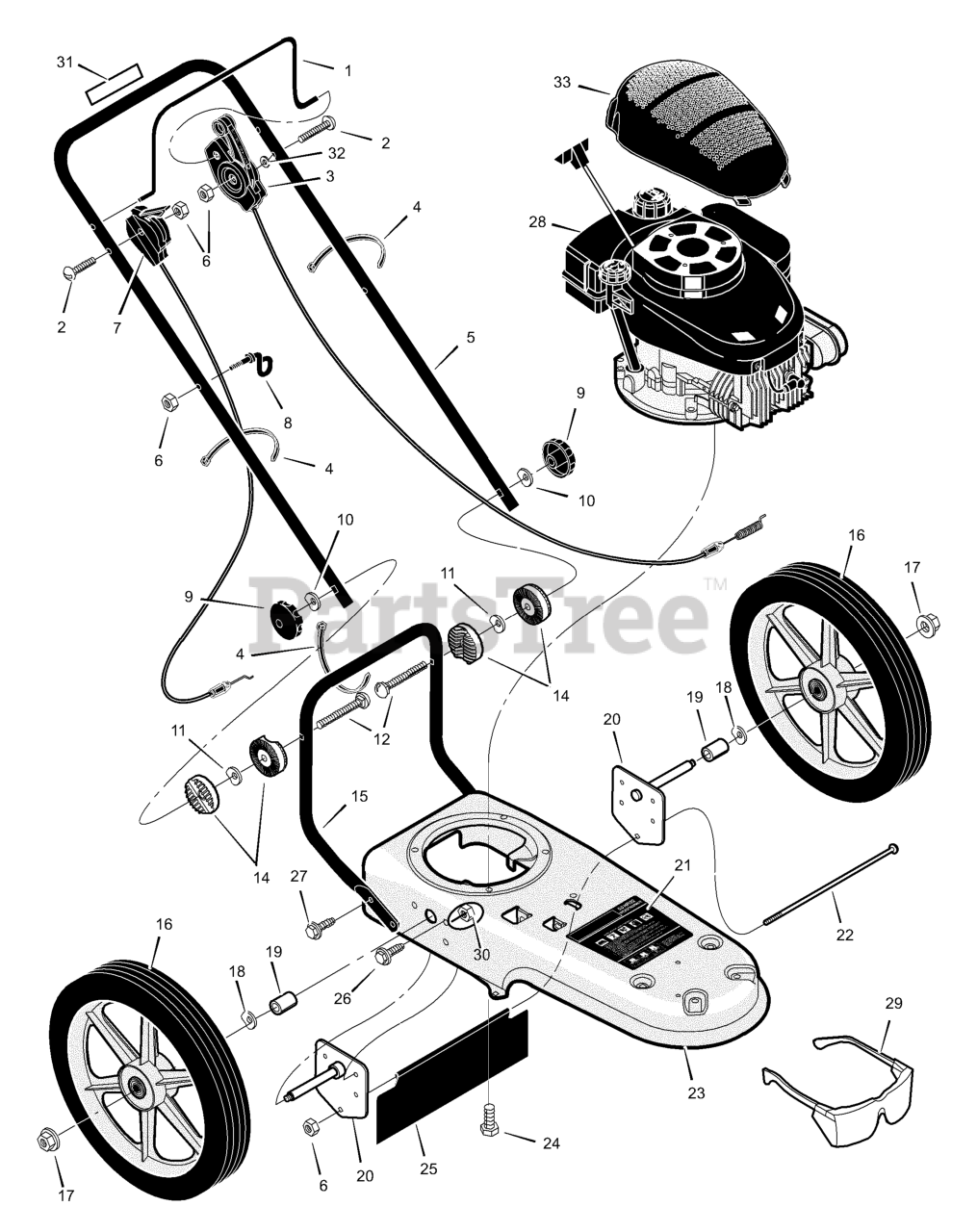

TM5000x50D - Murray Walk-Behind Trimmer (2003) Mower Housing Assembly Parts Diagram

Walk-Behind Trimmer

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 740198E735

Lever, Stop

$

$

Currently unavailable

$4.49

$

Usually ships in 2-12 days

0

3

Murray 740193MA

Cable, Control Latching

$57.99

$

Usually ships in 2-12 days

0

4

Murray 712267

Tie, Cable

$3.99

$

Usually ships in 2-12 days

0

5

Murray 740196

Handle

$34.99

$

In Stock, only 1 left!

0

6

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 740194

Control, Throttle

$25.99

$

In Stock, only 3 left!

0

8

Murray 672510MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

9

Murray 740202

Knob, Handle

$

$

Not available

10

$5.49

$

Usually ships in 2-12 days

0

11

Murray 711936MA

Washer, Spring

$4.99

$

Usually ships in 2-12 days

0

12

$33.99

$

Usually ships in 2-12 days

0

14

Murray 740158

Pivot, Handle

$

$

Not available

15

Murray 740195

Handle, Lower

$170.99

$

Usually ships in 2-12 days

0

16

Murray 740185

Wheel & Tire

$74.99

$

Usually ships in 2-12 days

0

17

Murray 015X84MA

Nut, Axle
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Murray 0020X3MA

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

19

$5.49

$

Usually ships in 2-12 days

0

20

Murray 740188MA

Assembly, Axle & Bracket

$48.99

$

Usually ships in 2-12 days

0

21

Murray 713006

Decal
(Superseded to 1928721SM)

$4.99

$

In Stock, Qty 5

0

22

Murray 711935

Bolt, Carriage

$8.49

$

Usually ships in 2-12 days

0

23

Murray 740150E735

Frame, Trimmer

$

$

Currently unavailable

24

$5.49

$

Usually ships in 2-12 days

0

25

Murray 740192MA

Shield, Trailing

$25.99

$

Usually ships in 2-12 days

0

26

Murray 48901

Bolt
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

27

$3.99

$

Usually ships in 2-12 days

0

28

Engine *

$

$

Not available

29

Murray 711890

Protection, Eye

$

$

Not available

30

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

31

$6.99

$

Usually ships in 2-12 days

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1601001MA

Shroud, Engine

Note: (Optional)

$27.99

$

Usually ships in 2-12 days

0

--

Murray F-030201L

Instruction Book & Parts List

$

$

Currently unavailable
