TM5000x11C - Murray Walk-Behind Trimmer (2001) Illustration & Parts List Parts Diagram

Walk-Behind Trimmer

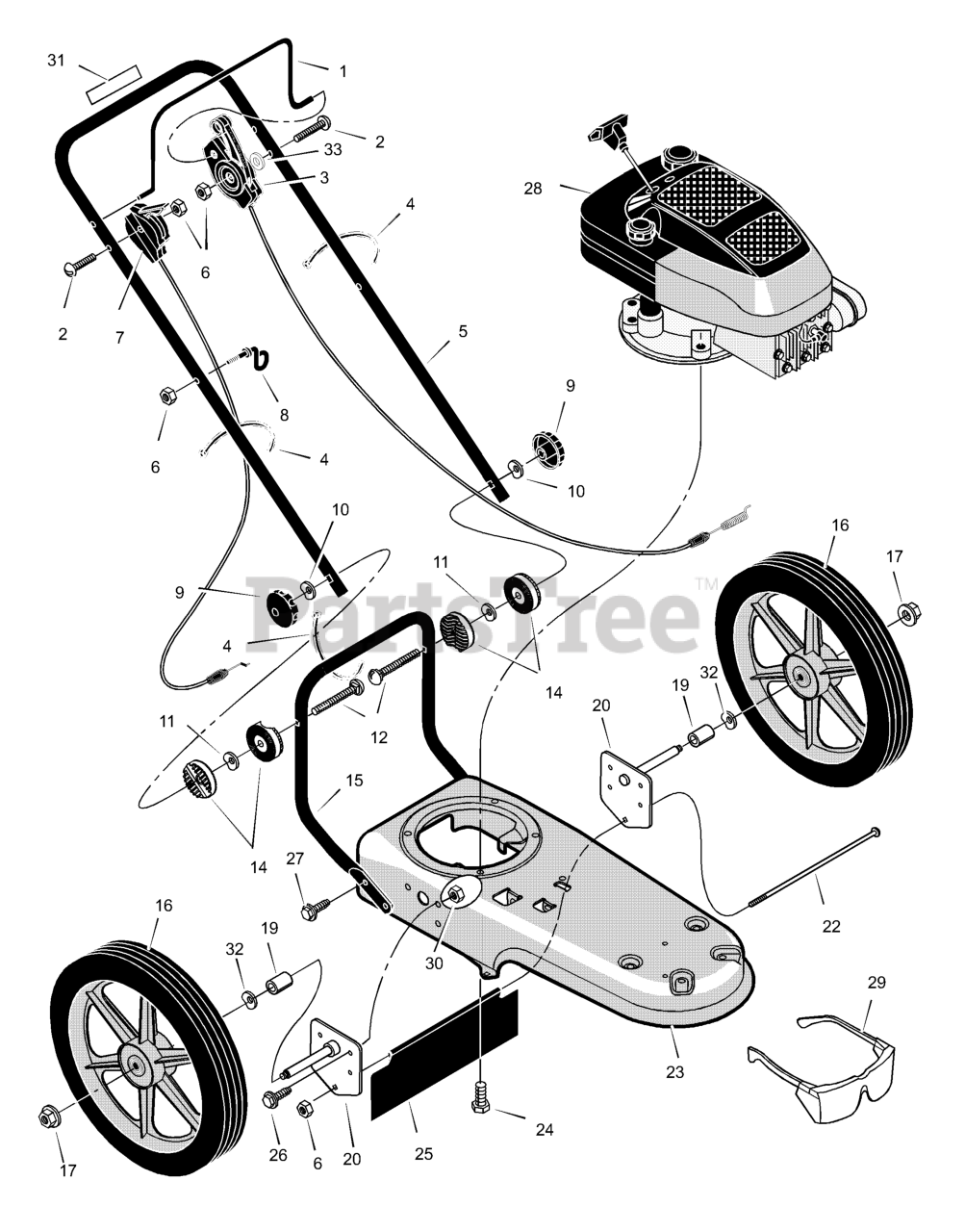

Illustration & Parts List Parts Diagram

  • Title
1

Murray MU740198-848

LEVER, Stop

$

$

Currently unavailable

$

$

Currently unavailable

3

Murray MU740193

CABLE, Control Latching

$

$

Currently unavailable

4

Murray MU712267

TIE, Cable

$

$

Currently unavailable

5

Murray MU740196

HANDLEBAR

$

$

Currently unavailable

$

$

Currently unavailable

7

Murray MU740194

CONTROL, Throttle

$

$

Currently unavailable

8

Murray MU672510

GUIDE, Rope

$

$

Currently unavailable

9

Murray MU740202

KNOB, Handlebar

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray MU711936

WASHER, Spring

$

$

Currently unavailable

12

$

$

Currently unavailable

14

Murray MU740158

PIVOT, Handlebar

$

$

Currently unavailable

15

Murray MU740195

HANDLEBAR, Lower

$

$

Currently unavailable

16

Murray MU740185

WHEEL & TIRE

$

$

Currently unavailable

17

Murray MU15X84

NUT, Axle

$

$

Currently unavailable

18

Murray MU20X3

WASHER

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Murray MU740188

ASSEMBLY, Axle & Bracket

$

$

Currently unavailable

22

Murray MU711935

BOLT, Carriage

$

$

Currently unavailable

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Murray MU740192

SHIELD, Trailing

$

$

Currently unavailable

26

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Engine

$

$

Not available

29

Murray MU711890

PROTECTION, Eye

$

$

Currently unavailable

$

$

Currently unavailable

31

Murray MU712409

DECAL, Engine Stop

$

$

Currently unavailable

32

Murray MU20X3

WASHER, Spring

$

$

Currently unavailable

33

Murray MU672292

SPACER, PM .26x.5x.2

$

$

Currently unavailable

--

Murray MU713004

DECAL, Powertrim

Note: (Not shown)

$

$

Currently unavailable

--

Murray MU712416

DECAL, Hayter

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray MU713006

DECAL, Warning

Note: (Not shown)

$

$

Currently unavailable

--

Murray MUF-010202M

INSTRUCTION BOOK & PARTS LIST

$

$

Currently unavailable
