TM5000x11A - Murray Walk-Behind Trimmer (2000) Trimmer Head Assembly Parts Diagram

Walk-Behind Trimmer

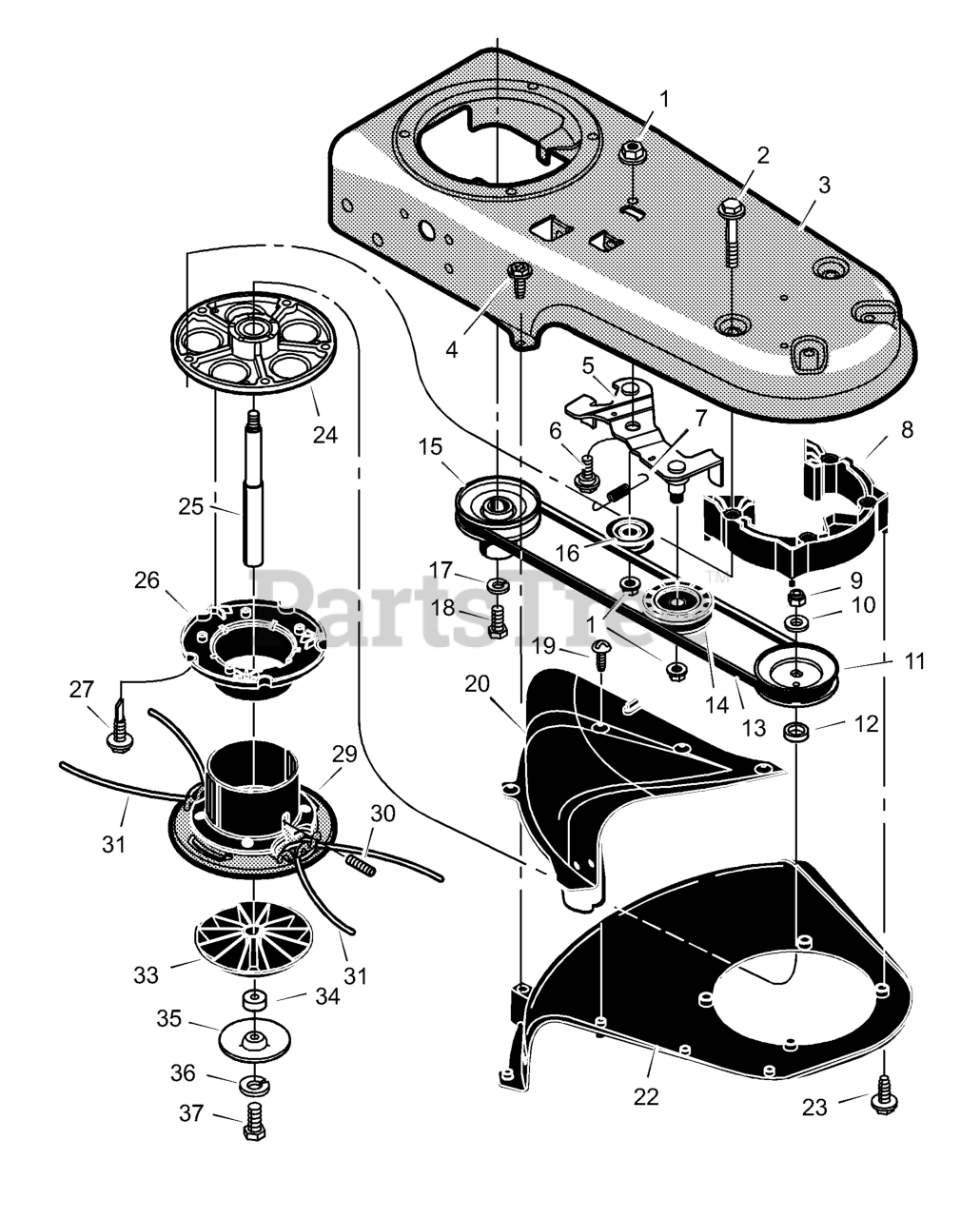

Trimmer Head Assembly Parts Diagram

  • Title

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Murray MU740232

Idler Assembly

$

$

Currently unavailable

$

$

Currently unavailable

7

$

$

Currently unavailable

8

$

$

Currently unavailable

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray MU740171

PULLEY, Cutting Head

$

$

Currently unavailable

12

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray MU740244

PULLEY, Idler

$

$

Currently unavailable

15

Murray MU740179

PULLEY, Engine

$

$

Currently unavailable

16

Murray MU740183

PULLEY, Idler

$

$

Currently unavailable

17

Murray MU712147

LOCKWASHER

$

$

Currently unavailable

18

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Murray MU770070

GUARD Assembly

$

$

Currently unavailable

22

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Murray MU092574

JACKSHAFT HOUSING ASSEMBLY

$

$

Currently unavailable

25

Murray MU740169

JACKSHAFT

$

$

Currently unavailable

26

Murray MU740163

WRAP, Upper Head

$

$

Currently unavailable

27

$

$

Currently unavailable

29

Murray MU740175-848

ASSEMBLY, Cutting Disc

$

$

Currently unavailable

30

Murray MU712127

SCREW, Set

$

$

Currently unavailable

31

Murray MU740164

LINE, Cutting

$

$

Currently unavailable

33

Murray MU740157

GUIDE, Height

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Murray MU740209

SHIELD, Abrasion

$

$

Currently unavailable

36

Murray MU120380

LOCKWASHER

$

$

Currently unavailable

37

$

$

Currently unavailable
