TM 5E (25AE110-101) - Cub Cadet Walk-Behind Trimmer Handlebar Assembly Parts Diagram

Walk-Behind Trimmer

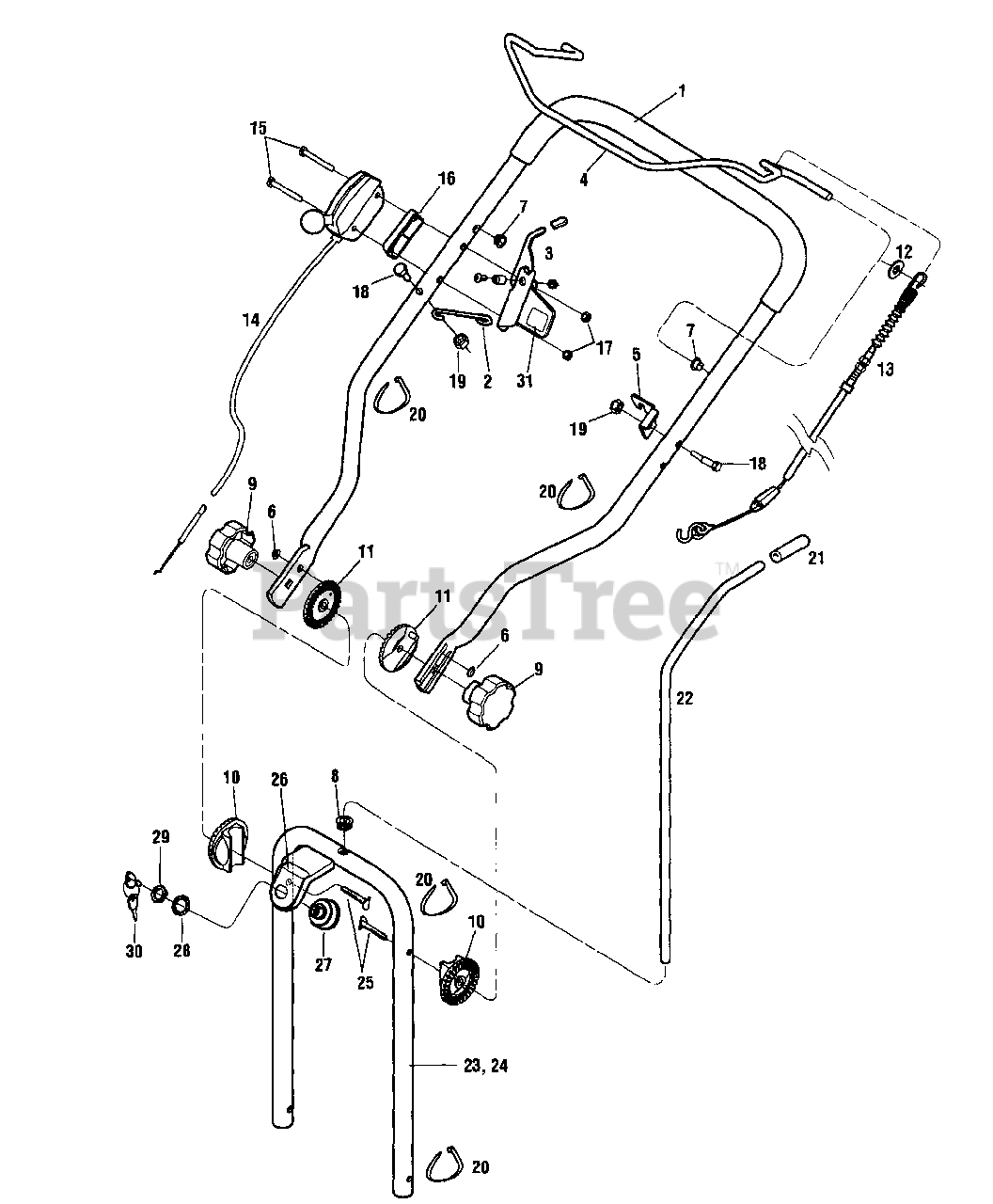

Handlebar Assembly Parts Diagram

  • Title
1

Cub Cadet 1904422

Upper Handlebar w/sleeve

$

$

Not available

2

Cub Cadet 1915309

Rope Guide

Note: See Model TM5E

$

$

Not available

3

Cub Cadet 1904424

Bail Stop/Latch Assembly

$

$

Not available

$

$

Not available

5

Cub Cadet 1749977001

Cable Bracket

$

$

Not available

6

Cub Cadet 1765879

Push-on Retainer

$7.99

$

In Stock, only 1 left!

0

7

Cub Cadet 1908677

Nyliner Bushing

$

$

Not available

8

Cub Cadet 1761046

Nyliner Bushing

$

$

Not available

9

Cub Cadet 1909250

Adjusting Knob

$

$

Not available

10

Cub Cadet 1903403

Inside Hndlbr. Adj. Quadrant

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 1903404

Outside Hndlbr. Adj. Quadrant
(Superseded to 1903404099)

$

$

Not available

12

Cub Cadet 1915340

Flat Washer, 5/16

$

$

Not available

13

Cub Cadet 1910852

Control Cable
(Superseded to 1910852P)

$75.99

$

In Stock, only 1 left!

0

14

Cub Cadet 1910833

Throttle Cable

$

$

Not available

15

Cub Cadet 1908793

Screw, 10-24 x 2

$

$

Not available

16

$

$

Not available

17

Cub Cadet 1983039

Lock Nut, 10-24

$

$

Not available

18

Cub Cadet 1983658

Hex Hd Screw, 1/4-20 x 1-1/8

$

$

Not available

19

Cub Cadet 1185814

Top Lock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

20

Cub Cadet 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 1718534

Steering Rod Grip

$

$

Not available

22

Cub Cadet 1915279001

Upper Steering Rod

$

$

Currently unavailable

23

Cub Cadet 1910809001

Lower Handlebar.

Note: See Model TM4

$

$

Not available

24

Cub Cadet 1904508

Lower Handlebar.

Note: See Model TM5E

$

$

Not available

25

Cub Cadet 1731025

Curved Hd. Bolt, 5/16-18 x 2
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 1904406

Decal-Keyswitch

Note: For Model TM5E

$

$

Not available

27

Cub Cadet 1900455

Ignition Switch
(Superseded to 1900455P)

Note: For Model TM5E

$

$

Not available

28

Cub Cadet 1187950

Lockwasher, 5/8
(Superseded to 736-0225)

Note: For Model TM5E

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 92018

Hex Nut, 5/8-32
(Superseded to 712-0252)

Note: For Model TM5E

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 96520

Ignition Key
(Superseded to 925-0201)

Note: For Model TM5E

$9.49

$

In Stock, only 1 left!

0

31

Cub Cadet 1904512

Bail Latch Decal

$

$

Not available
