TM 5E (25AE110-101) - Cub Cadet Walk-Behind Trimmer Carburetor, Fuel Tank & Magneto (Model TM5E) Parts Diagram

Walk-Behind Trimmer

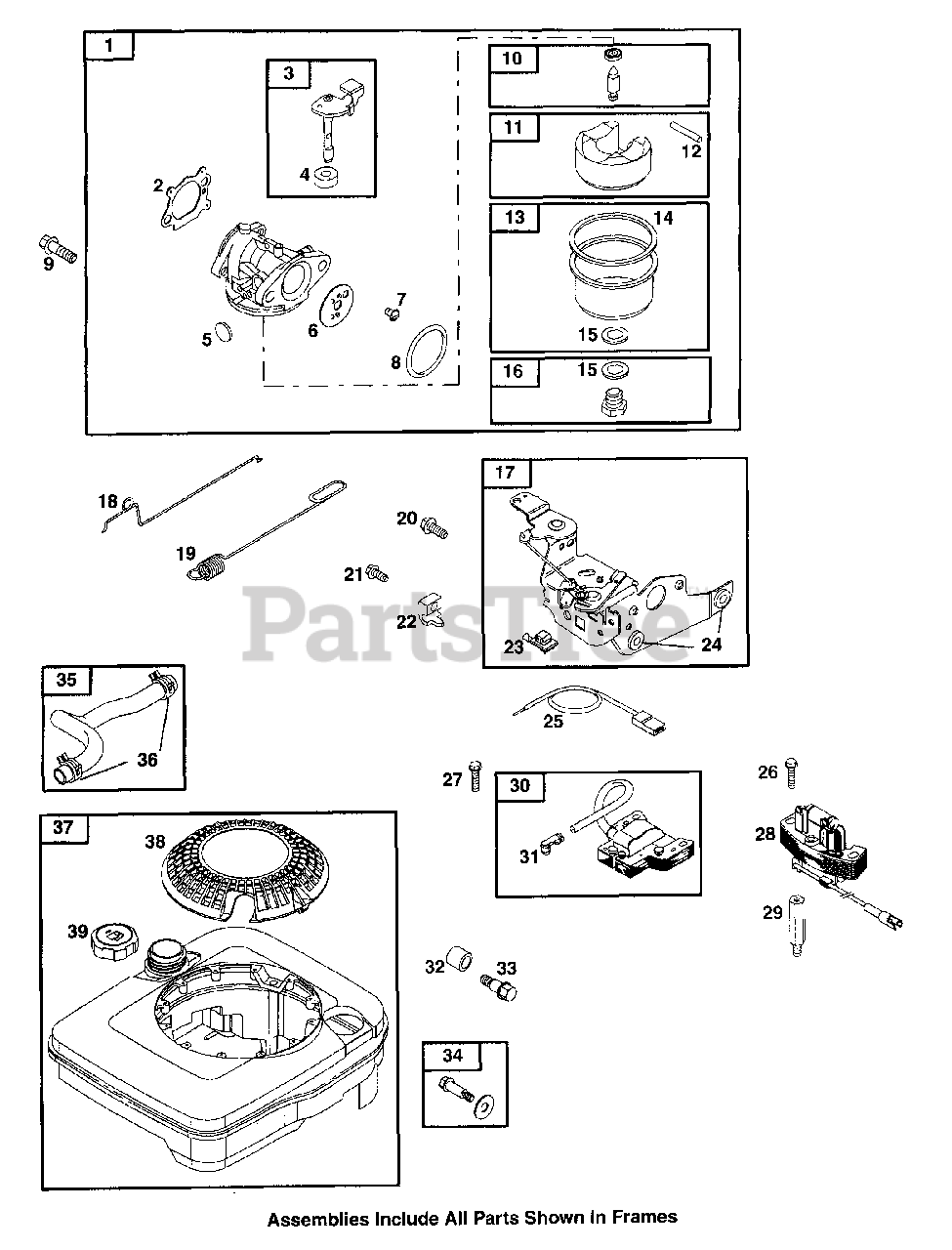

Carburetor, Fuel Tank & Magneto (Model TM5E) Parts Diagram

  • Title

1

Cub Cadet BS-498170

Carburetor
(Superseded to BS-799868)

$63.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-493267

Throttle Shaft

$16.99

$

In Stock, only 4 left!

0

4

Cub Cadet BS-691321

Choke/Throttle Dust Seal

$4.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-694468

Welch Plug

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet BS-691203

Throttle Valve

$9.49

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-691636

Screw

$3.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-692524

Screw (Carburetor)

$

$

Not available

10

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-398187

Carburetor Float

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-691242

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

13

Cub Cadet BS-493640

Float Bowl
(Superseded to BS-796611)

$

$

Not available

14

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-271716

Sealing Washer

$6.99

$

In Stock, Qty 16

0

16

Cub Cadet BS-494870

Main Jet (Standard)

$

$

Not available

Cub Cadet BS-497315

Main Jet (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-692031

Control Bracket
(Superseded to BS-790143)

$44.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-691829

Mechanical Governor Link

$8.49

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-691291

Governor Spring

$7.49

$

In Stock, only 3 left!

0

20

Cub Cadet BS-690877

Screw (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

21

Cub Cadet BS-691044

Screw (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

22

Cub Cadet BS-690798

Casing Clamp

$5.49

$

In Stock, only 1 left!

0

23

Cub Cadet BS-692310

Stop Switch

$5.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-493823

Spacer

Note: (Includes Qty. 2)

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet BS-692390

Stop Wire

$

$

Not available

26

Cub Cadet BS-691648

Screw

$4.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet BS-691991

Alternator

$118.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-691094

Stud

$10.99

$

In Stock, only 2 left!

0

30

Cub Cadet BS-802574

Magneto Armature
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 10

0

31

Cub Cadet BS-493880

Sparkplug Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet BS-692294

Fuel Tank Spacer

$4.99

$

In Stock, Qty 5

0

33

Cub Cadet BS-690940

Screw (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

34

Cub Cadet BS-692311

Screw/Washer Kit

$7.49

$

In Stock, only 1 left!

0

35

Cub Cadet BS-691371

Fuel Line (Molded)
(Superseded to BS-791873)

$15.99

$

In Stock, Qty 7

0

36

Cub Cadet BS-95162

Hose Clamp
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

37

Cub Cadet BS-695106

Fuel Tank

$

$

Currently unavailable

38

Cub Cadet BS-691919

Rewind Guard

$28.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-397974

Fuel Tank Cap
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0
