TM 5E (25AE110-100) - Cub Cadet Walk-Behind Trimmer Starter & Gaskets (Model TM5E) Parts Diagram

Walk-Behind Trimmer

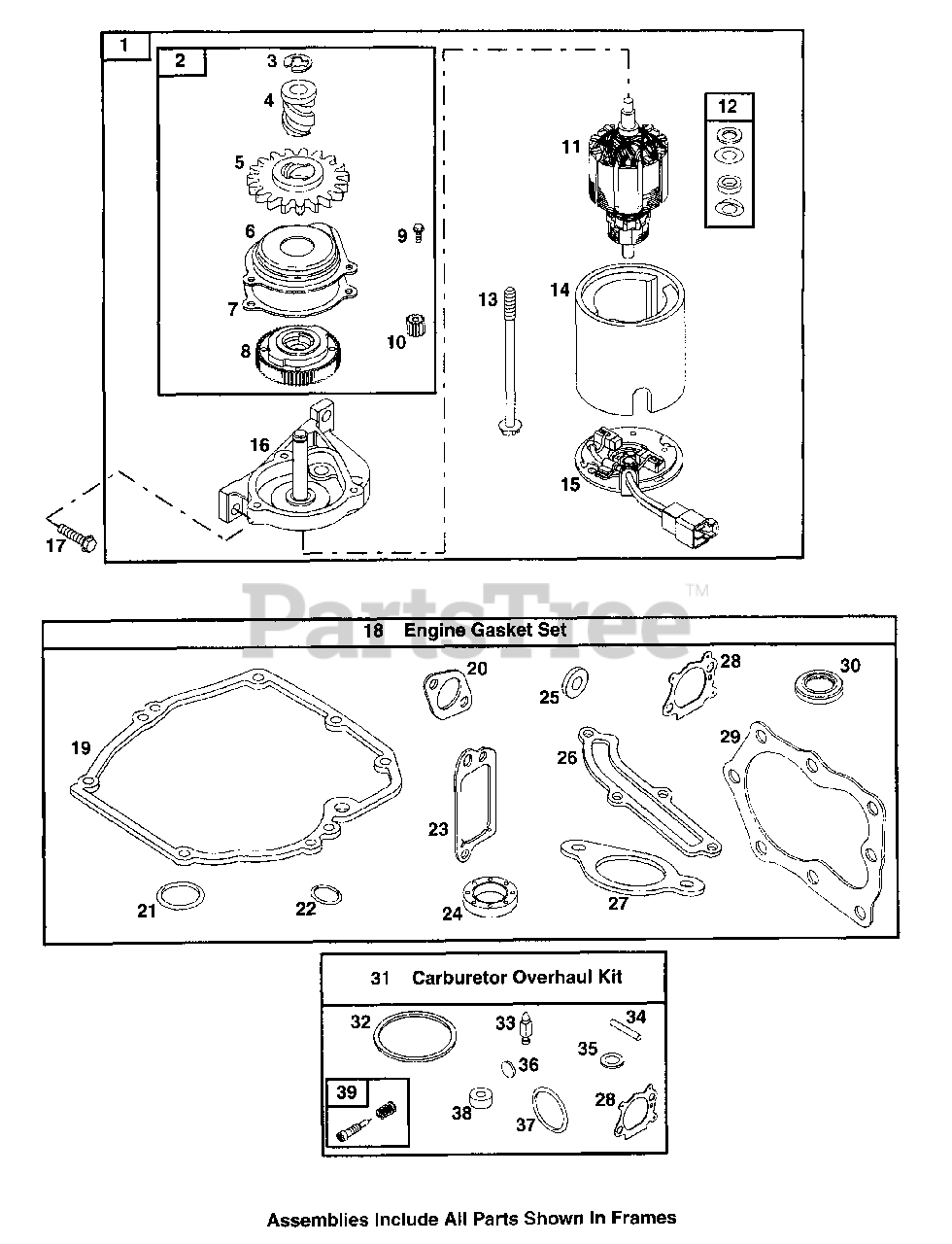

Starter & Gaskets (Model TM5E) Parts Diagram

  • Title

1

Cub Cadet BS-691376

Starter Motor
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-494147

Starter Drive

$33.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-93941

E-Ring Retainer
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-691325

Starter Spline
(Superseded to BS-795098)

$11.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-691918

Pinion Gear
(Superseded to BS-795099)

$21.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-692341

Starter Gear Cover

$

$

Currently unavailable

7

Cub Cadet BS-692352

Starter Cover Gasket

$6.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-692358

Drive Clutch

$

$

Not available

9

Cub Cadet BS-690345

Screw (Starter Drive Cover)

$4.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-691269

Pinion Gear
(Superseded to BS-795096)

$13.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-690786

Starter Armature

$

$

Currently unavailable

12

Cub Cadet BS-492919

Washer Set

$2.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-692327

Bolt (Starter Motor)

$

$

Currently unavailable

14

Cub Cadet BS-690785

Starter Housing

$

$

Not available

15

Cub Cadet BS-690787

End Cap

$

$

Currently unavailable

16

Cub Cadet BS-690782

Drive Cap

$85.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-691127

Screw (Drive Cap)

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet BS-497316

Engine Gasket Set
(Superseded to BS-590508)

$37.99

$

In Stock, only 2 left!

0

19

Cub Cadet BS-692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-691881

Exhaust Gasket

$8.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-691031

Dipstick/Tube Seal

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692296

Dipstick Tube Seal

$4.99

$

In Stock, only 3 left!

0

23

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet BS-399781

Oil Seal (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-493823

Spacer

Note: (Includes Qty. 2)

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

29

Cub Cadet BS-692249

Cylinder Head Gasket

$8.49

$

In Stock, Qty 20+

0

30

Cub Cadet BS-299819

Bushing/Seal Kit
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

31

Cub Cadet BS-498260

Carburetor Overhaul Kit

$16.99

$

In Stock, Qty 20+

0

32

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

34

Cub Cadet BS-691242

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

35

Cub Cadet BS-271716

Sealing Washer

$6.99

$

In Stock, Qty 5

0

36

Cub Cadet BS-694468

Welch Plug

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

38

Cub Cadet BS-691321

Choke/Throttle Dust Seal

$4.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-493765

Idle Mixture Kit

$14.99

$

Usually ships in 2-12 days

0
