TM 5E (25AE110-100) - Cub Cadet Walk-Behind Trimmer Lower Steering Assembly Parts Diagram

Walk-Behind Trimmer

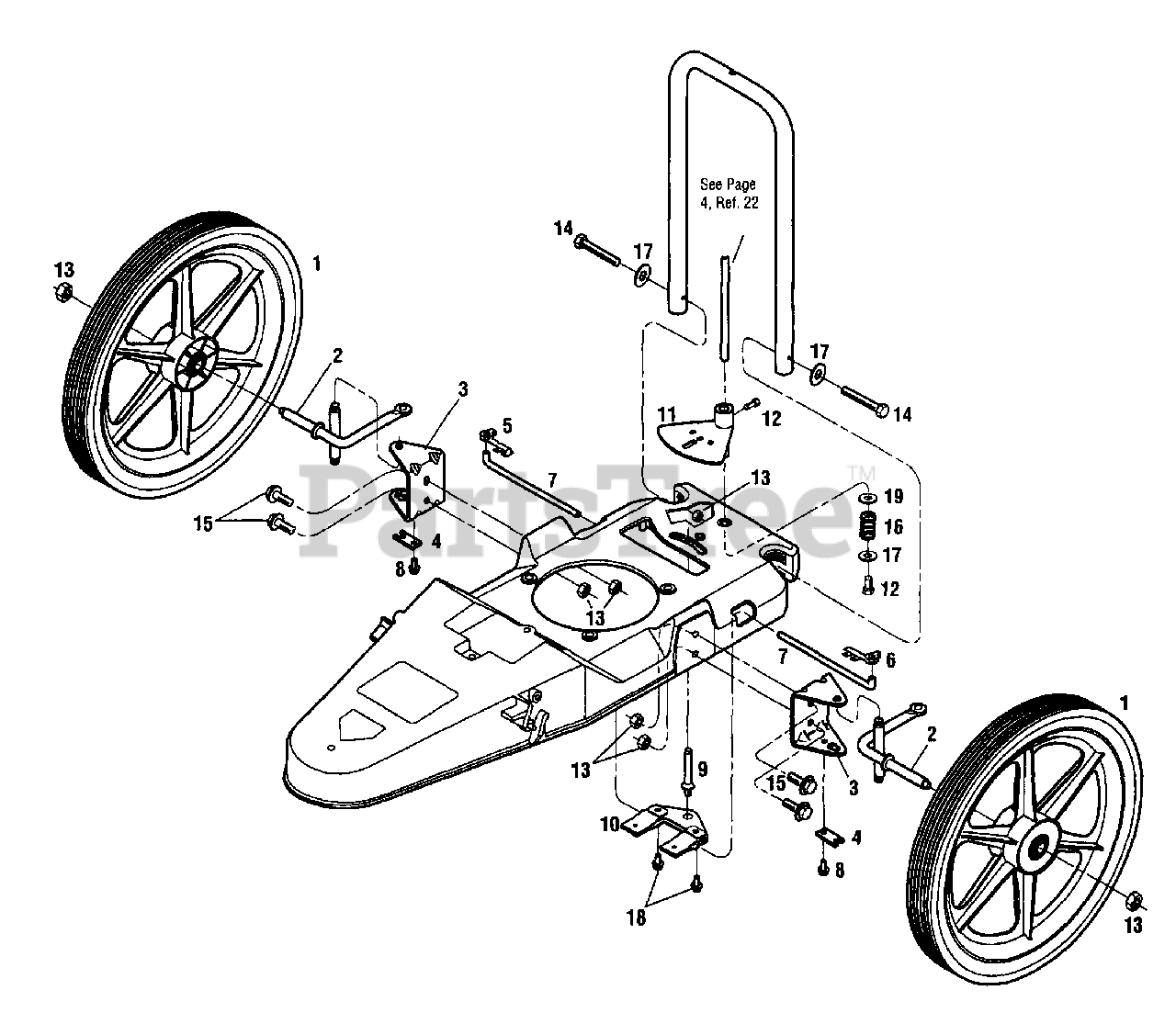

Lower Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 1915689

Wheel - 6 spoke

$

$

Not available

2

Cub Cadet 1910820001

Wheel Arm Weldment

$

$

Not available

3

Cub Cadet 1915213001

Wheel Mounting Bracket

$

$

Not available

4

Cub Cadet 1915218001

Wheel Arm Retainer

$

$

Not available

5

Cub Cadet 1765550

Rod End Clip/Right Side

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 1765551

Rod End Clip/Left Side

$8.99

$

In Stock, only 1 left!

0

7

Cub Cadet 1910819

Steering Link

$

$

Not available

8

Cub Cadet 1909301

Hex Flange Screw, 1/4-20 x 5/8

$

$

Not available

9

Cub Cadet 1915802

Shoulder Stud

$

$

Not available

10

Cub Cadet 1915803001

Clamp Link

$

$

Not available

11

Cub Cadet 1910811001

Trim Plate

$

$

Not available

12

Cub Cadet 1111696

Screw, 5/16-24 x 1/2

$

$

Not available

13

Cub Cadet 1744708

Hex Lock Nut, 5/16-18

$

$

Not available

14

Cub Cadet 1111606

Hex Head Bolt, 5/16-18 x 2

$

$

Not available

15

Cub Cadet 1186331

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet 1725279

Spring

$

$

Not available

17

Cub Cadet 9901

Washer, 5/16 ID

$

$

Not available

18

Cub Cadet 1186328

Hex Flange Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

19

Cub Cadet 1107385

Washer
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0
