TM 502 (41AY52AR902) - McCulloch Chainsaw (Timber Bear) General Assembly Parts Diagram

Chainsaw

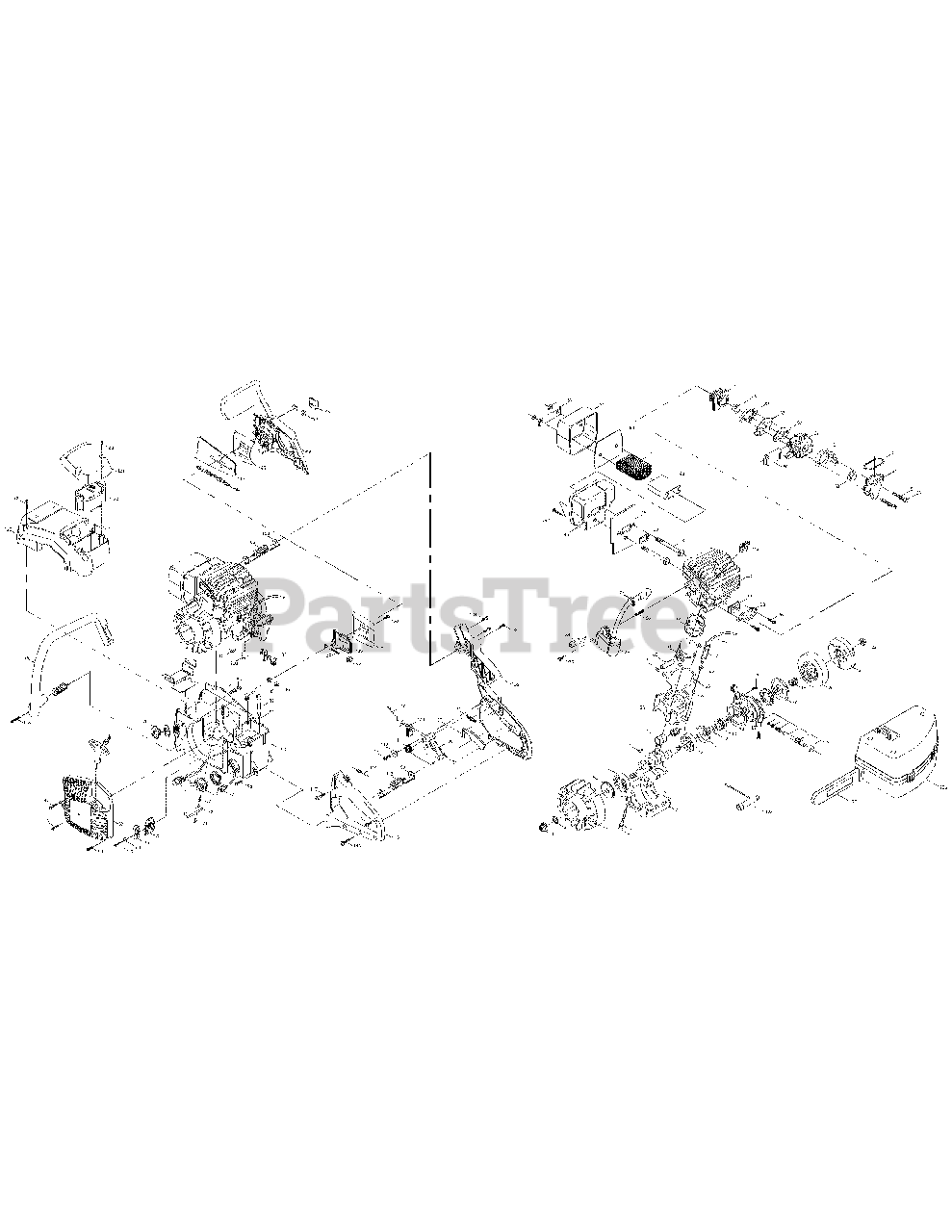

General Assembly Parts Diagram

  • Title

1

MTD 9NAB-5/16-24

NUT
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

2

MTD 9WOC-08

NUT

$

$

Not available

3

MTD 9169-310201

FLYWHEEL
(Superseded to MC-9169-310201)

$

$

Not available

4

MTD 9SREB-10/24-2.75

SCREW

$

$

Currently unavailable

5

MTD 9WFB-0.2

WASHER

$

$

Not available

6

MTD 9157-310201

SEAL
(Superseded to MC-9157-310201)

$

$

Not available

7

MTD 9DB-620201

BEARING
(Superseded to MC-9DB-620201)

$

$

Not available

8

MTD 9072-3102Y1F

CRANKCASE LOWER

$

$

Currently unavailable

9

MTD 9221-310001

KEY

$

$

Not available

10

MTD 9228-310203A

C'SHAFT/C'ROD ASS'Y
(Superseded to MC-9228-310203A)

$

$

Not available

11

MTD 9155-310201

BEARING
(Superseded to MC-9155-310201)

$

$

Not available

12

MTD 6014-M96A01

WASHER
(Superseded to MC-6014-M96A01)

$

$

Not available

13

MTD 9073-310201

GEAR, WORM

$

$

Not available

14

MTD 9WFN-0.4

WASHER
(Superseded to MC-9WFN-0.4)

$

$

Not available

15

MTD 9076-310201

O RING

$

$

Not available

16

MTD 9228-310235

PUMP ASS'Y

$

$

Not available

17

MTD 9SKKBY8/16-0.5

SCREW
(Superseded to 710-04493)

$

$

Not available

18

MTD 9WDZ-0.722

WASHER
(Superseded to MC-9WDZ-0.722)

$

$

Not available

19

MTD 9036-310201

BEARING
(Superseded to MC-9036-310201)

$

$

Not available

20

MTD 9228-310211

FRUM SPRKT ASS'Y

$

$

Not available

21

MTD 9228-310210

CLUTCH ASS'Y

$

$

Not available

22

MTD 9NHC-09

NUT
(Superseded to MC-9NHC-09)

$

$

Not available

23

MTD 9072-3102Y2F

CRANKCASE UPPER

$

$

Not available

24

MTD 9124-310201

FITTING, PULSE LINE
(Superseded to MC-9124-310201)

$

$

Not available

25

MTD 9014-3102Y1

GASKET
(Superseded to MC-9014-3102Y1)

$

$

Not available

26

MTD 9036-310201

CLAMP, WIRE HOSE
(Superseded to MC-9036-310201)

$

$

Not available

27

MTD 9059-310201

CONDUIT, FLEX
(Superseded to MC-9059-310201)

$

$

Not available

28

MTD 9129-310004

HOSE

$

$

Not available

29

MTD 9CA-0.46

RING

$

$

Not available

30

MTD 9PC-10-32.5

PIN
(Superseded to MC-9PC-10-32.5)

$

$

Not available

31

MTD 9290-31C201

PISTON

$

$

Not available

32

MTD 9189-31C201

RING, PISTON

$

$

Not available

33

MTD 9SKKBY10/24-0.75

SCREW

$

$

Currently unavailable

34

MTD 9124-310205

SPACER

$

$

Not available

35

MTD 9288-310201-CH

IGNITION ASS'Y

$

$

Not available

36

MTD 9191-310201

STUD
(Superseded to MC-9191-310201)

$

$

Not available

37

MTD 9012-330301

GROMMET
(Superseded to MC-9012-330301)

$

$

Not available

38

MTD 9SKKBY10/24-0.62

SCREW

$

$

Currently unavailable

39

MTD 9014-310203

FLANGE
(Superseded to MC-9014-310203)

$

$

Not available

40

MTD 9131-310202

EYELET
(Superseded to MC-9131-310202)

$

$

Not available

41

MTD 9292-31C201F

CYLINDER

$

$

Not available

42

MTD 9295-320001

SPARK PLUG

$

$

Not available

43

MTD 9STDZY10/24-2.79

SCREW

$

$

Currently unavailable

44

MTD 9014-310208

WASHER
(Superseded to MC-9014-310208)

$

$

Not available

45

MTD 9082-310201

BAFFLER

$

$

Not available

46

MTD 9228-310217

MUFFLER BODY ASS'Y
(Superseded to MC-9228-310217)

$

$

Not available

47

MTD 9SKKBY10/24-0.5

SCREW

$

$

Currently unavailable

48

MTD 9211-310201

PLATE

$

$

Not available

49

MTD 9183-310201

SCREEN

$

$

Not available

50

MTD 9082-310205

BAFFLER

$

$

Not available

51

MTD 9017-310204

COVER, MUFFLER

$

$

Not available

52

MTD 9158-310201

LOCKPLATE

$

$

Not available

53

MTD 9NAC-10/24

NUT
(Superseded to MC-9NAC-10/24)

$

$

Not available

54

MTD 9124-310202

BOOT, CARBURETOR
(Superseded to MC-9124-310202)

$

$

Not available

55

MTD 9131-310203

EYELET

$

$

Not available

56

MTD 9014-310204

FLANGE
(Superseded to MC-9014-310204)

$

$

Not available

57

MTD 9102-310202

PLATE
(Superseded to MC-9102-310202)

$

$

Not available

58

MTD 9014-310202

GASKET
(Superseded to MC-9014-310202)

$

$

Not available

59

MTD 9287-31C201

CARBURETOR

$

$

Not available

60

MTD 9124-310203

BOOT 1
(Superseded to MC-9124-310203)

$

$

Not available

61

MTD 9014-31C201

FLANGE

$

$

Not available

62

MTD 9024-310202

SPRING

$

$

Not available

63

MTD 9131-310204

EYELET
(Superseded to MC-9131-310204)

$

$

Not available

64

MTD 9124-310204

BOOT
(Superseded to MC-9124-310204)

$

$

Not available

65

MTD 9SREB-10/24-1.625

SCREW

$

$

Currently unavailable

66

MTD 9SKKBY10/14-0.625

SCREW

$

$

Currently unavailable

67

MTD 9228-310212

STARTER ASS'Y

$

$

Not available

68

MTD 9WFZ-0.18

WASHER
(Superseded to MC-9WFZ-0.18)

$

$

Not available

69

MTD 9223-310201

WIRE

$

$

Not available

70

MTD 9183-310202

SCREEN
(Superseded to MC-9183-310202)

$

$

Not available

71

MTD 9SKKBY10/24-1

SCREW

$

$

Not available

72

MTD 9043-310201

PLATE

$

$

Not available

73

MTD 9124-310206

SPACE

$

$

Not available

74

MTD 9142-310002

PRIMER, REMOTE

$

$

Not available

75

MTD 9129-310214

HOSE

$

$

Not available

76

MTD 9228-310206

CAP, FUEL
(Superseded to MC-9228-310206)

$

$

Not available

77

MTD 9182-310503

FILTER, FUEL

$

$

Not available

78

MTD 9SKKZY10/14-01

SCREW
(Superseded to 710-04501)

$

$

Not available

79

MTD 9228-310207

CAP, OIL
(Superseded to MC-9228-310207)

$

$

Not available

80

MTD 9228-310205

FUEL/OIL TANK ASS'Y
(Superseded to MC-9228-310205)

$87.99

$

Usually ships in 3-6 days

0

81

MTD 9070-310002

VALVE DUCKBILL

$

$

Not available

82

MTD 6182-210101

FILTER
(Superseded to MC-6182-210101)

$

$

Not available

83

MTD 9129-310209

HOSE

$

$

Not available

84

MTD 9013-310201

PLUG
(Superseded to MC-9013-310201)

$

$

Not available

85

MTD 9252-310002

FILTER

$

$

Not available

86

MTD 9131-310206

WASHER

$

$

Not available

87

MTD 9214-310201

SCREW

$

$

Not available

88

MTD 9035-310201

NUT

$

$

Not available

89

MTD 9214-310101

SCREW

$

$

Not available

90

MTD 9043-310203

PLATE, BAR
(Superseded to MC-9043-310203)

$

$

Not available

91

MTD 9043-310202

PLATE, FLANGE

$

$

Not available

92

MTD 9SKKBY6/19-0.375

SCREW

$

$

Currently unavailable

93

MTD 9220-31C203

20" CHAIN

$

$

Currently unavailable

94

MTD 9040-31A219F

20" BAR

$

$

Currently unavailable

95

MTD 9082-310204

PLATE

$

$

Not available

96

MTD 9228-310215

CHAIN BRAKE ASS'Y

$

$

Not available

97

MTD 9NAZ-5/16-18

NUT
(Superseded to MC-9NAZ-5/16-18)

$

$

Not available

98

MTD 9072-310206

PLATE
(Superseded to MC-9072-310206)

$

$

Not available

99

MTD 9228-31C201

CKOKE ASS'Y

$

$

Not available

100

MTD 9114-310202

ROD, CHOKE

$

$

Not available

101

MTD 9013-310202

PLUG

$

$

Not available

102

MTD 9228-310213

ISOLATOR ASS'Y
(Superseded to MC-9228-310213)

$

$

Not available

103

MTD 9228-310214

CABLE ASS'Y

$

$

Not available

104

MTD 9SGKBY10/24-0.5

SCREW
(Superseded to 710-04490)

$

$

Not available

105

MTD 9068-310203

FRAME, REAR
(Superseded to MC-9068-310203)

$

$

Not available

106

MTD 9017-31C201

PLUG
(Superseded to MC-9017-31C201)

$

$

Not available

107

MTD 9028-310201

RELEASE, TRIGGER
(Superseded to MC-9028-310201)

$

$

Not available

108

MTD 9028-310202

TRIGGER
(Superseded to MC-9028-310202)

$

$

Not available

109

MTD 9124-310209

GROMMET
(Superseded to MC-9124-310209)

$

$

Not available

110

MTD 9010-310201

CABLE

$

$

Not available

111

MTD 9024-310206

SPRING
(Superseded to MC-9024-310206)

$

$

Not available

112

MTD 9WFB-4.9-17

WASHER
(Superseded to MC-9WFB-4.9-17)

$

$

Not available

113

MTD 9228-310222

ISOLATOR ASS'Y

$

$

Not available

114

MTD 9010-310203

WIRE ASS'Y
(Superseded to MC-9010-310203)

$

$

Not available

115

MTD 9228-310232

COVER ASS'Y, HANDLE
(Superseded to MC-9228-310232P)

$

$

Not available

116

MTD 9SKKBY8/16-0.625

SCREW

$

$

Currently unavailable

117

MTD 9SKKBY-8/16-1

SCREW
(Superseded to 710-04495)

$

$

Not available

118

MTD 9SJKB-12/14-1.5

SCREW

$

$

Not available

119

MTD 9228-310231

HANDLE ASS'Y
(Superseded to MC-9228-310231)

$

$

Not available

120

MTD 9228-310216

COVER ASS'Y

$

$

Not available

121

MTD 9SKKBY10/14-02

SCREW

$

$

Not available

122

MTD 9SKKBY10/14-0.68

SCREW

$

$

Currently unavailable

123

MTD 9228-310204

AIR CLEANER ASS'Y

$

$

Not available

124

MTD 9067-310202

COVER
(Superseded to MC-9067-310202)

$

$

Not available

125

MTD 9042-310201

WRENCH
(Superseded to MC-9042-310201)

$

$

Not available

126

MTD 9120-310201

CARRY CASE

$

$

Not available

127

MTD 9017-310213

SCABBARD

$

$

Not available
