TLS29202BVG (3800022) - Giant-Vac Trailer Mount Truck Loader Vacuum, 29hp Engine Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 29hp

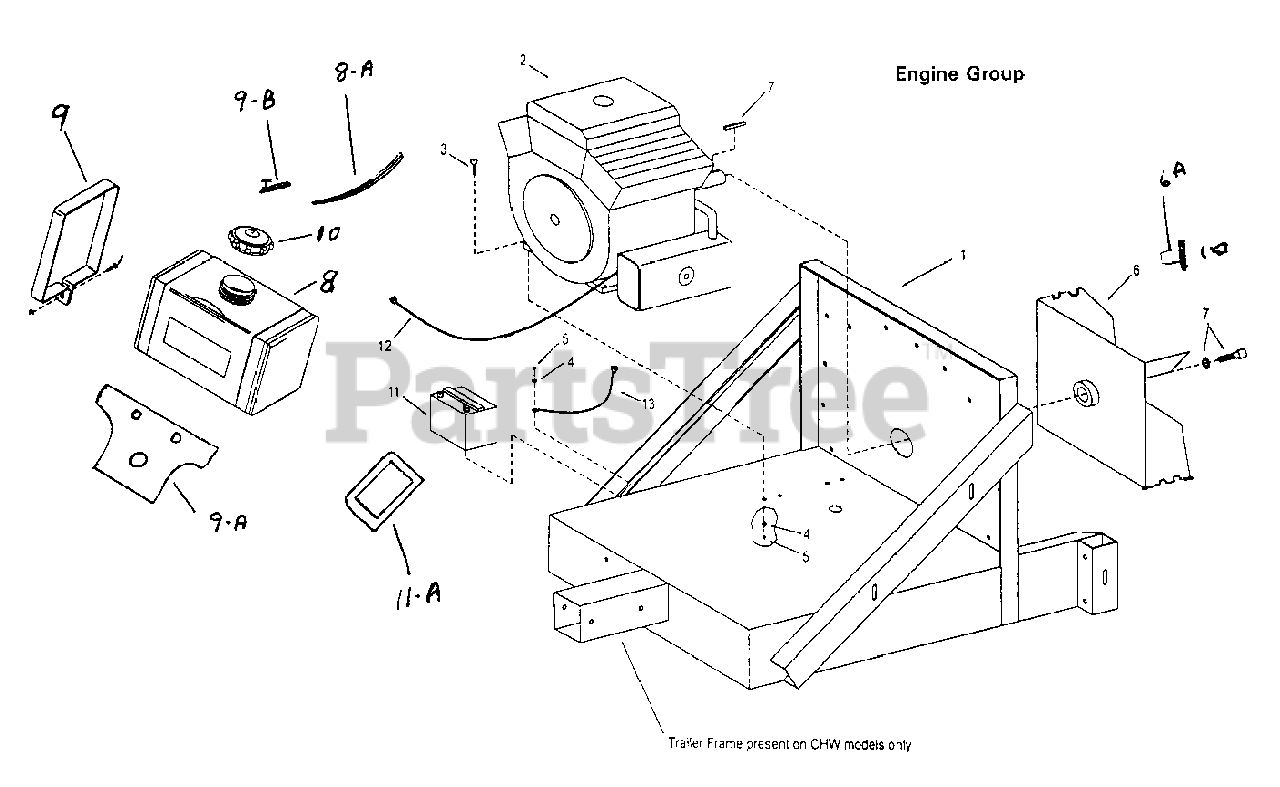

Engine Group Parts Diagram

  • Title

1

Giant-Vac 3010104

Engine Base SKID Mounts

$

$

Currently unavailable

1

Giant-Vac 3010266

Engine Base & Trailer Frame CHW

$

$

Currently unavailable

2

3039069

20HP Kohler Command Engine

Note: TL20201KH & TLS20201KH

$

$

Not available

2

542477-0125-E1

* Engine, B&S 29HP Mod. 542477-0125-E1

Note: TL29202BVG & TLS29202BVG

$

$

Not available

--

Giant-Vac 3039129

Muffler Deflector (not shown)

Note: TL20201KH & TLS20201KH

$

$

Currently unavailable

--

3039187

Muffler Guard (not shown)

Note: TL20201KH & TLS20201KH

$

$

Not available

--

3039216

Exhaust Deflector (not shown)

Note: TL29202BVG & TLS29202BVG

$

$

Not available

--

3032229

Hex Bolt 6mm x 25mm (not shown)

Note: TL29202BVG & TLS29202BVG

$

$

Not available

--

3032230

Flat Washer 6mm (not shown)

Note: TL29202BVG & TLS29202BVG

$

$

Not available

3

Giant-Vac 3031747

3/8 x 2" Hex Bolt (Motor Mount Bolt)

$

$

Currently unavailable

3

Giant-Vac 3031595

3/8 x 1-3/4" Hex Bolt (Motor Mount Bolt)
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

4

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Giant-Vac 3031009

3/8 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

6

Giant-Vac 3021610

Impeller

$

$

Currently unavailable

6A

Giant-Vac 3021566

Impeller Hub

$

$

Currently unavailable

--

Giant-Vac 3021611

Cover Plate, Taper-Lok (not shown)

$

$

Currently unavailable

7

Giant-Vac 3031447

5/8-18 x 2" Impeller Bolt & Key Group

$

$

Currently unavailable

8

3040117

Fuel Tank

$

$

Not available

8A

Giant-Vac 3031755

Hose, Rubber Fuel 1/4" x 10" Length

$

$

Not available

--

Giant-Vac 3034041

Clamp, Hose 1/4" Worm Drive (not shown)

$

$

Currently unavailable

--

Giant-Vac 3032117

Clamp, 3/8 (not shown)

$

$

Currently unavailable

9

3031157

Fuel Tank Strap

$

$

Not available

9A

3031158

Gas Tank Mount

$

$

Not available

9B

3031445

Inline Fuel Shutoff Valve

$

$

Not available

10

3040119

Fuel Tank Cap

$

$

Not available

11

Giant-Vac 3039020

Battery, 12 Volt

$

$

Currently unavailable

11A

Giant-Vac 3040118

Battery Box

$

$

Currently unavailable

12

Giant-Vac 3031642

Battery Cable - 32SS (Positive)

$

$

Currently unavailable

--

Giant-Vac 3031836

Battery Terminal Cover - Red (not shown)

$

$

Currently unavailable

13

Giant-Vac 3031643

Battery Cable - 16SS (Ground)

$

$

Currently unavailable

--

Giant-Vac 3031837

Battery Terminal Cover - Black (not shown)

$

$

Currently unavailable
