TLS20W-29BV - Scag Industrial Skid-Mount Truck Loader, 29hp Vanguard (SN: P4900001 - P4999999) INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

Industrial Skid-Mount Truck Loader, 29hp Vanguard

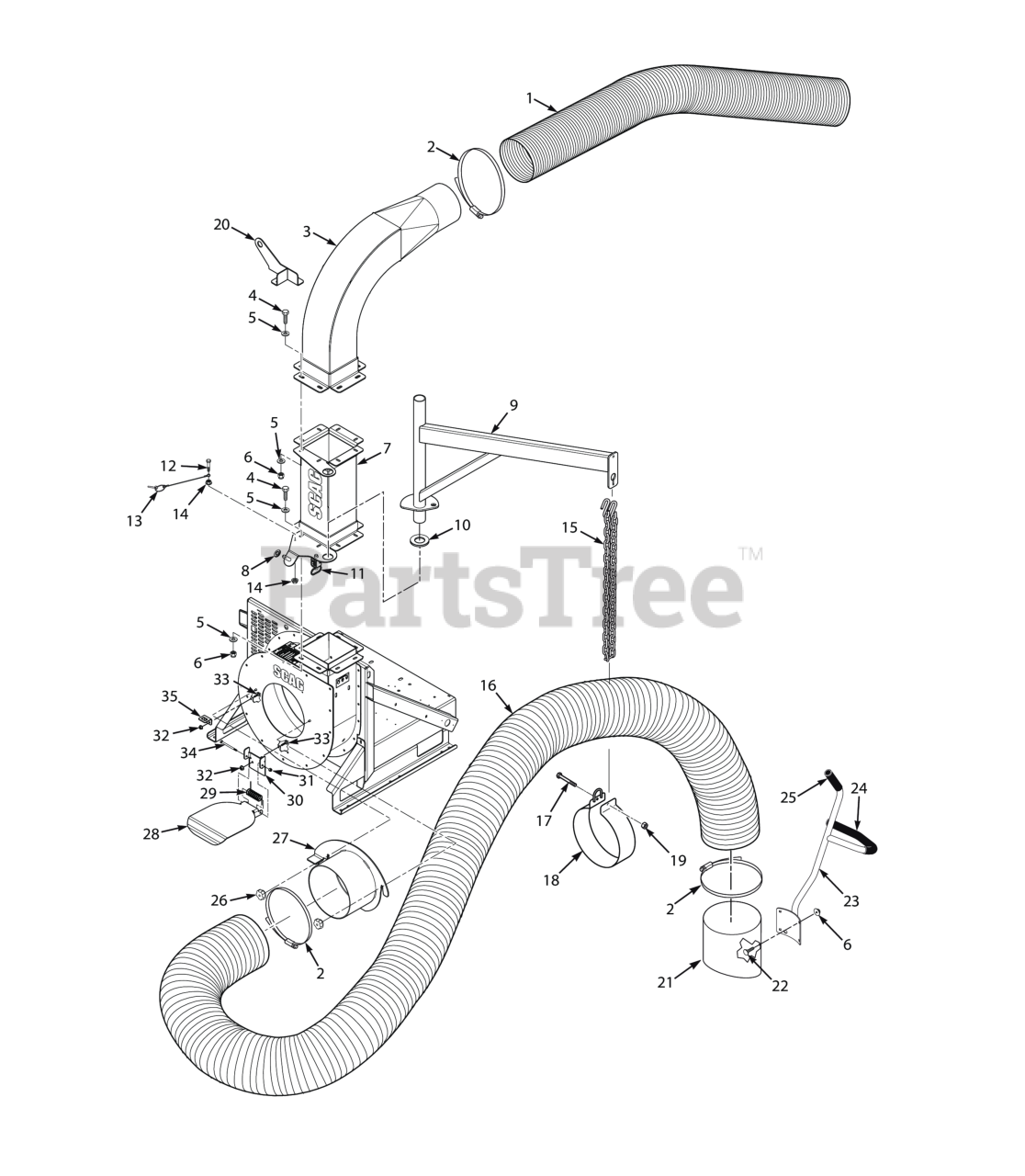

INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 48135-57

Hose, Clear Poly 8" Dia. x 60"

$307.99

$

Usually ships in 2-12 days

0

2

Scag 486044-01

Strap, Ratchet- 66 x 1"

$15.99

$

Usually ships in 2-12 days

0

3

Scag 452479

Elbow, Exhaust - TL20W

$735.99

$

Usually ships in 2-12 days

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 462627

Stack, Discharge w/Decals

$

$

Not available

8

Scag 485050

Washer, Rubber

$5.49

$

Usually ships in 2-12 days

0

9

Scag 452477

Boom Weldment

$383.99

$

Usually ships in 2-12 days

0

10

Scag 484947

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

11

Scag 485065

Spring

$37.99

$

Usually ships in 2-12 days

0

12

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

13

Scag 485062

Quick Pin Assembly w/Lanyard

$21.99

$

Usually ships in 2-12 days

0

14

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

15

Scag 484894

Chain w/2-Hooks

$21.99

$

Usually ships in 2-12 days

0

16

Scag 48135-28

Hose, 12" OD x 120" - .045 w/Wearstrip

$748.99

$

Usually ships in 2-12 days

0

17

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

18

Scag 452440

Band, Hose Support

$136.99

$

Usually ships in 2-12 days

0

19

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 452556

Bracket Weldment, Lift Hook

$60.99

$

Usually ships in 2-12 days

0

21

Scag 462628

Nozzle, 12"

$100.99

$

Usually ships in 2-12 days

0

22

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

23

Scag 462612

Handle w/Grips

$304.99

$

Usually ships in 2-12 days

0

24

Scag 485076

Grip, Handle 1-1/4" x 20"

$17.99

$

Usually ships in 2-12 days

0

25

Scag 485075

Grip, Handle 1-1/4" x 6"

$10.99

$

Usually ships in 2-12 days

0

26

Scag 481185-04

Knob, 3/8-16 Locking

$

$

Currently unavailable

27

Scag 452554

Hose Mounting Weldment

$208.99

$

Usually ships in 2-12 days

0

28

Scag 426461

Safety Switch Door

$36.99

$

Usually ships in 2-12 days

0

29

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

30

Scag 426455

Mounting Bracket, Safety Switch Door

$22.99

$

Usually ships in 2-12 days

0

31

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

33

Scag 04003-29

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 8

0

34

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

35

Scag 425388

Bracket, Brake Switch

$12.99

$

Usually ships in 2-12 days

0
