TLS20-18BV - Scag Skid-Mount Truck Loader, 18hp Vanguard (SN: P4800001 - P4899999) INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

Skid-Mount Truck Loader, 18hp Vanguard

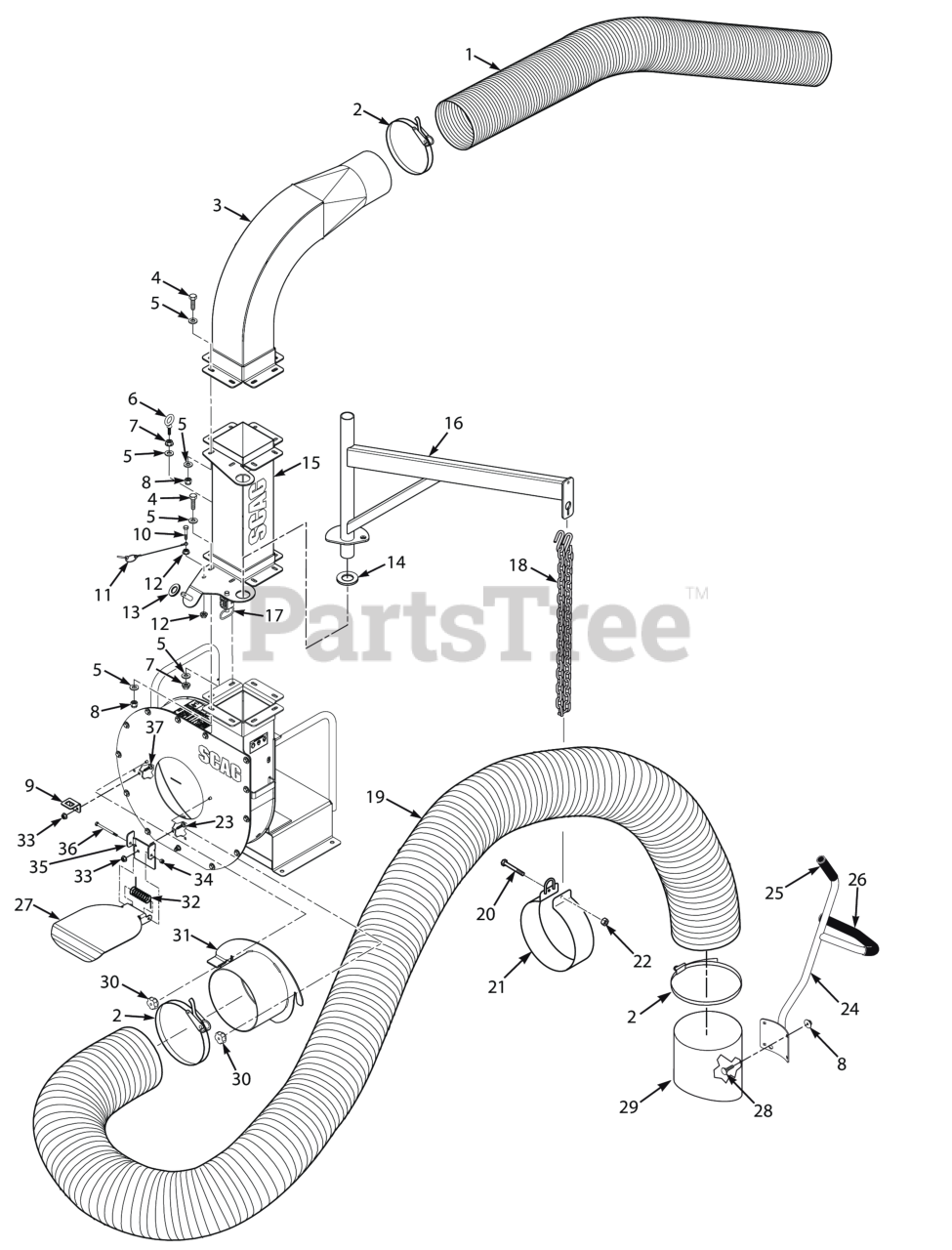

INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 48135-56

Hose, Clear Poly 7" x 30"

$127.99

$

Usually ships in 2-12 days

0

2

Scag 486044-01

Strap, Ratchet- 66 x 1"

$15.99

$

Usually ships in 2-12 days

0

3

Scag 452525

Discharge Elbow Weldment

$618.99

$

Usually ships in 2-12 days

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04070-07

Eyebolt, 3/8"

$20.99

$

Usually ships in 2-12 days

0

7

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 425388

Bracket, Brake Switch

$12.99

$

Usually ships in 2-12 days

0

10

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

11

Scag 485062

Quick Pin Assembly w/Lanyard

$21.99

$

Usually ships in 2-12 days

0

12

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

13

Scag 485050

Washer, Rubber

$5.49

$

Usually ships in 2-12 days

0

14

Scag 484947

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

15

Scag 462624

Stack w/Decal, Discharge

$

$

Not available

16

Scag 452477

Boom Weldment

$383.99

$

Usually ships in 2-12 days

0

17

Scag 485065

Spring

$37.99

$

Usually ships in 2-12 days

0

18

Scag 484894

Chain w/2-Hooks

$21.99

$

Usually ships in 2-12 days

0

19

Scag 48135-27

Hose, 10" x 12' - .045 w/wearstrip

$511.99

$

Usually ships in 2-12 days

0

20

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

21

Scag 452439

Band Assembly, Hose Support - 10"

$105.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-29

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 8

0

24

Scag 462612

Handle w/Grips

$304.99

$

Usually ships in 2-12 days

0

25

Scag 485075

Grip, Handle 1-1/4" x 6"

$10.99

$

Usually ships in 2-12 days

0

26

Scag 485076

Grip, Handle 1-1/4" x 20"

$17.99

$

Usually ships in 2-12 days

0

27

Scag 426454

Safety Switch Door

$75.99

$

Usually ships in 2-12 days

0

28

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

29

Scag 462625

Adapter w/Decal

$82.99

$

Usually ships in 2-12 days

0

30

Scag 481885-04

Knob, 3/8-16 Locking

$4.99

$

In Stock, only 2 left!

0

31

Scag 452552

Hose Mount Weldment

$167.99

$

Usually ships in 2-12 days

0

32

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

33

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

34

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 426455

Mounting Bracket, Safety Switch Door

$22.99

$

Usually ships in 2-12 days

0

36

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

37

Scag 04003-29

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 8

0
