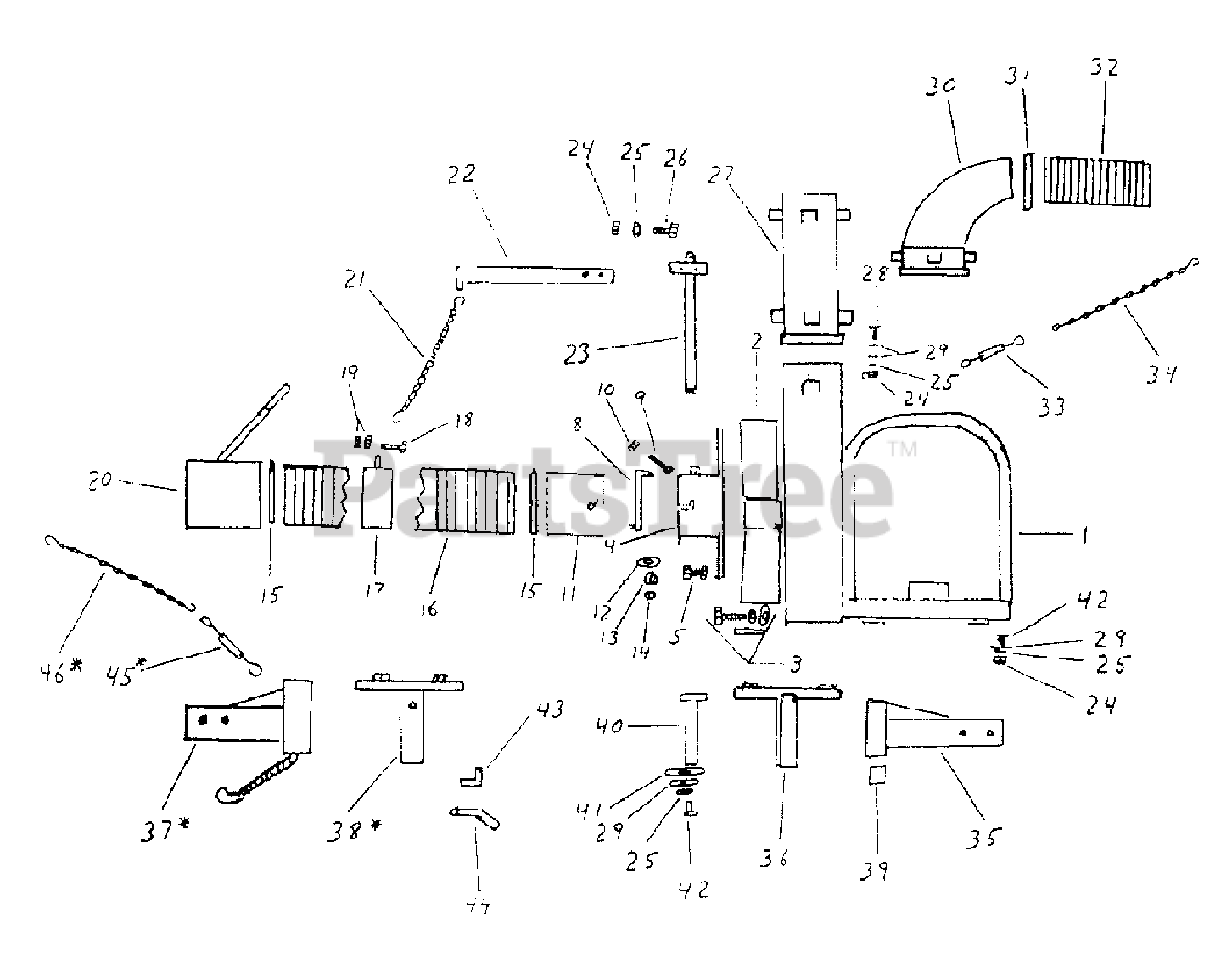

TLS18201BVG (3800002) - Giant-Vac Swing Away Hitch Mount Truck Loader Vacuum, 18hp TLH18201BVG & TLHX18201BVG Parts Parts Diagram

Swing Away Hitch Mount Truck Loader Vacuum, 18hp

TLH18201BVG & TLHX18201BVG Parts Parts Diagram

  • Title

1

Giant-Vac 3010151

Motor Base & Housing

$

$

Not available

2

Giant-Vac 3021609

Impeller

$

$

Currently unavailable

3

Giant-Vac 3031020

7/16-20 x 2 Impeller bolt, Washers & Key Kit

$

$

Currently unavailable

4

Giant-Vac 3020209

Intake Flange 10"

$

$

Currently unavailable

5

Giant-Vac 3031031

5/16 x 3/4 Hex Bolt & Lock Washer

$

$

Not available

8

Giant-Vac 3020203

Intake Flange Safety Cover 10"

$

$

Not available

9

Giant-Vac 3031461

1/2 x 2-1/2 Hex Bolt
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

11

Giant-Vac 3020212

Quick-Release Hose Adapter 10"

$

$

Currently unavailable

12

Giant-Vac 3031578

5/16 Fender Washer

$

$

Currently unavailable

13

Giant-Vac 3031626

5/16 Plastic Knob Nut

$

$

Currently unavailable

14

Giant-Vac 3031436

5/16 Lock Nut

$

$

Currently unavailable

15

Giant-Vac 3034016

10" Hose Clamp

$

$

Not available

16

3034007

10" x 10' Intake Hose

$

$

Not available

17

Giant-Vac 3040109

10" Support Band

$

$

Not available

18

Giant-Vac 3031141

5/16 x 3-1/2" Hex Bolt

$

$

Not available

19

Giant-Vac 3031004

5/16 Nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Giant-Vac 3020163

Intake Nozzle 10" w/Adj Handle

$

$

Currently unavailable

21

Giant-Vac 3031140

Boom Chain

$

$

Currently unavailable

22

Giant-Vac 3040122

Upper Boom Support

$

$

Not available

23

Giant-Vac 3040130

Lower Boom Support

$

$

Not available

24

Giant-Vac 3031022

1/2 Nut

$

$

Currently unavailable

25

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

26

3031093

1/2 x 1" Hex Bolt

$

$

Not available

27

Giant-Vac 3024665

Discharge Stack

$

$

Not available

28

Giant-Vac 3031021

1/2 x 4-1/2" Hex Bolt

$

$

Not available

29

Giant-Vac 3031043

1/2 Flat Washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

30

Giant-Vac 3024666

Discharge Elbow

$

$

Not available

31

Giant-Vac 3034047

7" Squeeze Ring

$

$

Currently unavailable

32

Giant-Vac 3034089

7" x 30" Metal Discharge Hose

$

$

Not available

33

Giant-Vac 3031624

3/8 x 7-1/2" Turnbuckle

$

$

Not available

34

Giant-Vac 3031627

Upper Body Support Chain

$

$

Currently unavailable

35

Giant-Vac 3027261

Standard Swing Arm - Vehicle Side

$

$

Not available

36

Giant-Vac 3027262

Standard Swing Arm - Unit Side

$

$

Not available

37

3027263

Long Swing Arm - Vehicle Side

Note: Fits X Model

$

$

Not available

38

Giant-Vac 3027264

Long Swing Arm - Unit Side

Note: Fits X Model

$

$

Not available

39

Giant-Vac 3031454

Swing Arm Bushing

$

$

Currently unavailable

40

Giant-Vac 3031630

Swing Arm Pivot Pin

$

$

Currently unavailable

41

3031489

5/8 Flat Washer

$

$

Not available

42

Giant-Vac 3031462

1-1/4" Single Split Collar

$

$

Currently unavailable

43

Giant-Vac 3023195

Swing Arm Locking Bracket

$

$

Currently unavailable

44

Giant-Vac 3031625

5/8-11 Handle

$

$

Currently unavailable

45

Giant-Vac 3031624

3/8 x 7-1/2" Turnbuckle

$

$

Not available

46

Giant-Vac 3031140

Boom Chain (Secondary Safety Chain Long Arm)

$

$

Currently unavailable

Giant-Vac 3070863

Housing Liner (w/hardware) (Not shown)

$

$

Currently unavailable

Giant-Vac 3039058

Battery (Not shown)

$

$

Currently unavailable

Giant-Vac 3031612

Battery Hold-down (Not shown)
(Superseded to 1723635SM)

$

$

Not available

Giant-Vac 3031562

#12 x 1/2" Sheet Metal Screw (Not shown)
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

Giant-Vac 3031633

Battery Cable - Positive (Not shown)

$

$

Currently unavailable

Giant-Vac 3031634

Battery Cable - Ground (Not shown)

$

$

Currently unavailable

356447-0279-B1

* Engine, 18hp B&S Vanguard, Mod. 356477-0279-B1 (Not shown)

$

$

Not available

Giant-Vac 3039186

Muffler Guard (Not shown)

$

$

Not available

Giant-Vac 3031002

5/16-18 x 1-3/4" Hex bolt (Not shown)

$

$

Not available

Giant-Vac 3031003

5/16 Lock Washer (Not shown)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

Giant-Vac 3031004

5/16-18 Hex Bolt (Not shown)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

Giant-Vac 3027265

Standard Swing Arm Assembly - Complete (Not shown)

$

$

Currently unavailable

Giant-Vac 3027266

Long Swing Arm Assembly - Complete (Not shown)

Note: Fits X Model

$

$

Not available

Giant-Vac 3079174

Decal, GV Logo, 9in White on Black (Not shown)

$

$

Currently unavailable

3079300

Decal, Danger Safety (Not shown)

$

$

Not available

3079301

Decal, Warning Safety (Not shown)

$

$

Not available

3079302

Decal, Notice (Not shown)

$

$

Not available
