TLR3510251W (3800012) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Trailer Frame Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

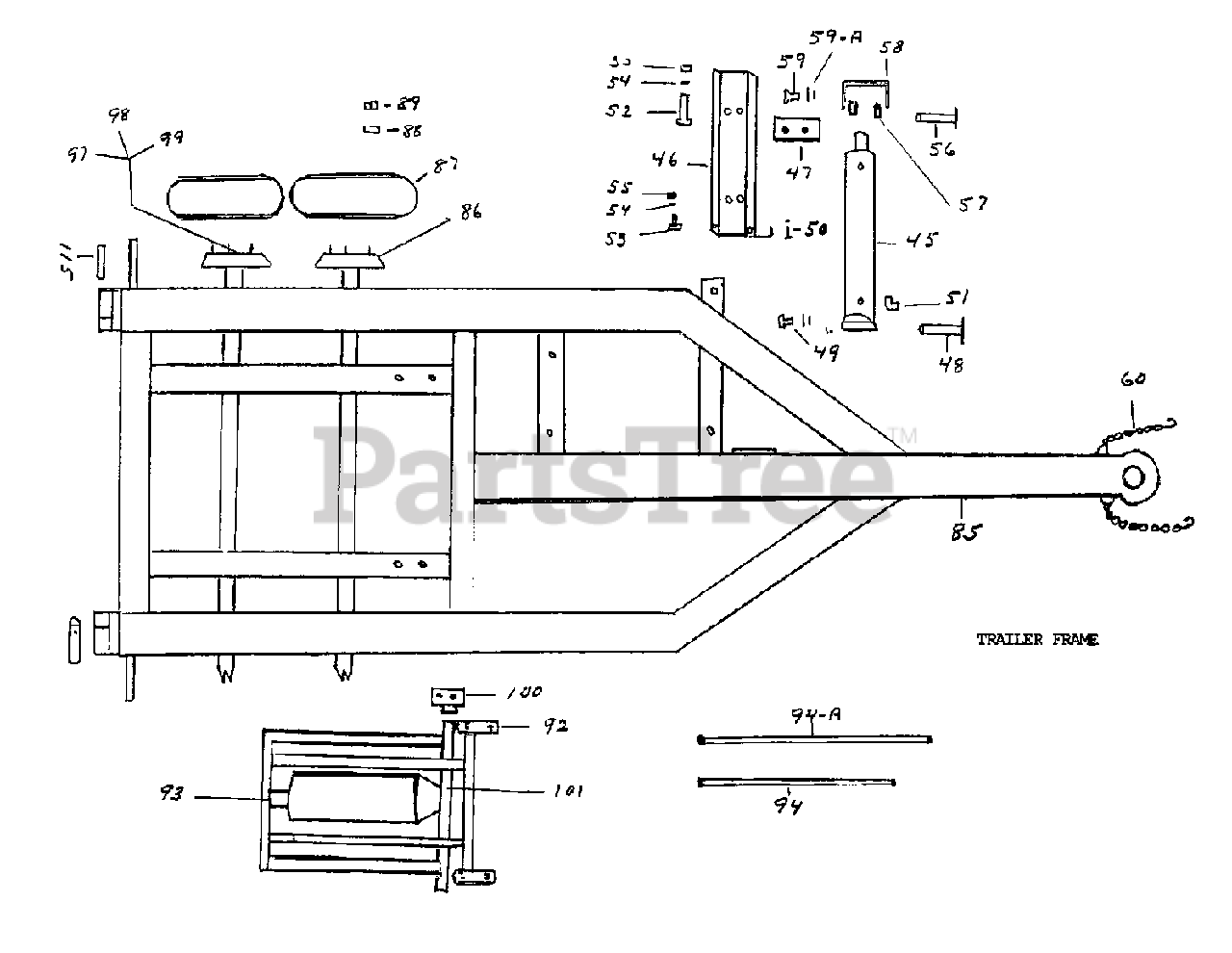

Trailer Frame Parts Diagram

  • Title

45

Giant-Vac 3061017

Hydraulic cylinder – 24 (hydraulic jack leg)

$

$

Currently unavailable

46

Giant-Vac 3027196

Cylinder mounting bracket

$

$

Currently unavailable

47

Giant-Vac 3027197

Cylinder clamp bracket

$

$

Currently unavailable

48

Giant-Vac 3031522

Cylinder top mounting pin – 1-1/4 x 7

$

$

Currently unavailable

49

3031523

1/2-13 x 1-1/4 bolt/lockwasher/flatwasher

$

$

Not available

49A

3031489

5/8 flat washer (Not shown)

$

$

Not available

50

Giant-Vac 3031524

3/8 x 2 clevis pin & bridge pin

$

$

Not available

51

Giant-Vac 3061074

Hydraulic fitting – Tompkins 2501-6-8

$

$

Not available

52

Giant-Vac 3031525

1/2-13 x 5-1/2 hex bolt (clamp bolt)

$

$

Not available

52a

Giant-Vac 3031121

1/2 lock washer (Not shown)

$

$

Currently unavailable

53

Giant-Vac 3031833

5/8-11 x 1-1/2 hex bolt

$

$

Currently unavailable

54

Giant-Vac 3031834

5/8 flat washer (modified – ‘D’ shape)

$

$

Currently unavailable

54a

Giant-Vac 3031326

5/8 lock washer (Not shown)

$

$

Not available

55

Giant-Vac 3031528

5/8-11 hex nut

$

$

Currently unavailable

56

Giant-Vac 3031529

Jack foot pin – 1-1/4 x 5

$

$

Currently unavailable

57

Giant-Vac 3031835

1-1/4ID x 3/4 spacer

$

$

Currently unavailable

58

Giant-Vac 3027198

Jack foot

$

$

Currently unavailable

59

3031523

1/2-13 x 1-1/4 bolt/lockwasher/flatwasher

$

$

Not available

59A

3031489

5/8 flat washer

$

$

Not available

60

Giant-Vac 3033135

Safety chain (set of 2)

$

$

Currently unavailable

85

3027377

Trailer frame

Note: 25HP Model

$

$

Not available

85

3027378

Trailer frame

Note: 35HP Model

$

$

Not available

86

Giant-Vac 3033129

Axle and spring assy

$

$

Currently unavailable

87

Giant-Vac 3033125

Tire & rim assy – 8-14.5LT

$

$

Currently unavailable

88

Giant-Vac 3033130

Rim lock

$

$

Currently unavailable

89

Giant-Vac 3033131

Lug nut

$

$

Currently unavailable

92

Giant-Vac 3027191

Hoist box brackets

$

$

Currently unavailable

93

Giant-Vac 3061056

Hoist assembly – complete

$

$

Currently unavailable

94

Giant-Vac 3061052

Hydraulic hose – 1/2 x 123

$

$

Currently unavailable

94A

Giant-Vac 3061054

Hydraulic hose – 1/2 x 143

$

$

Currently unavailable

97

Giant-Vac 3033132

Dust cap

$

$

Not available

98

3033133

Bearing seal

$

$

Not available

99

3033134

Bearing

$

$

Not available

100

Giant-Vac 3027192

Hoist trailer bracket

$

$

Currently unavailable

101

Giant-Vac 3031503

Hoist pin

$

$

Currently unavailable

115

Giant-Vac 3031510

Tail light assembly with mounting ring

$

$

Currently unavailable

Giant-Vac 3031562

#12 x 3/4 self tap screw (taillight grounding screw) (Not shown)
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

Giant-Vac 3031842

Wiring harness – trailer (brakes, taillights & license light) (Not shown)

$

$

Currently unavailable

Giant-Vac 3031845

Wiring harness – top screen (running lights) (Not shown)

$

$

Currently unavailable

Giant-Vac 3031751

License light assembly (Not shown)

$

$

Currently unavailable

Giant-Vac 3031752

License plate mounting bracket (Not shown)

$

$

Currently unavailable

Giant-Vac 3031030

1/4-20 hex nut (license light/bracket mounting hardware) (Not shown)

$

$

Currently unavailable

Giant-Vac 3031013

1/4 lock washer (Not shown)
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031757

Bolt-on wiring harness clip (Not shown)

$

$

Currently unavailable

Giant-Vac 3031013

1/4 lock washer (Not shown)
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031030

1/4-20 hex nut (Not shown)

$

$

Currently unavailable

Giant-Vac 3031849

Plastic cable tie – 28 (Not shown)

$

$

Currently unavailable
