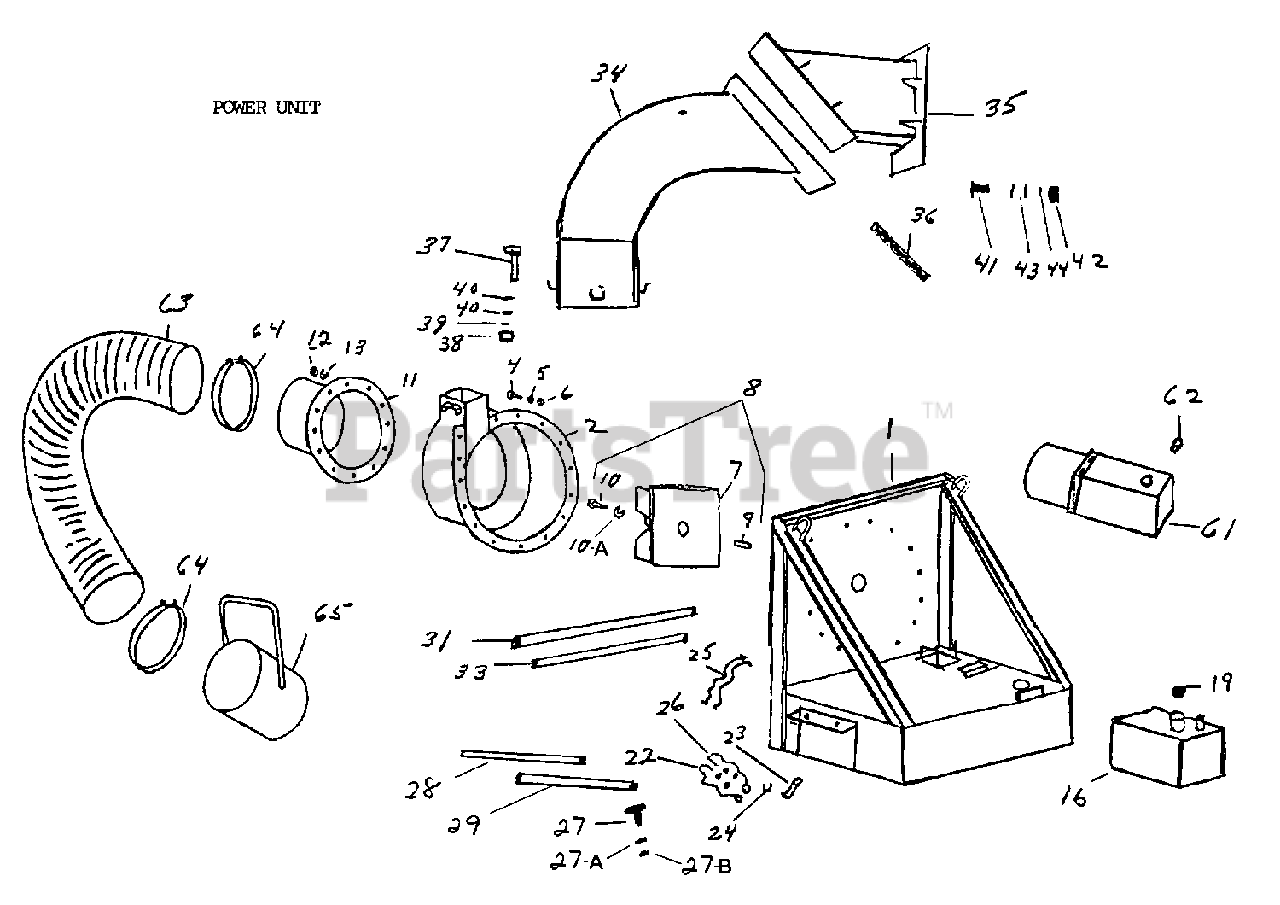

TLR3510251W (3800012) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Power Unit & Loader Base Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

Power Unit & Loader Base Parts Diagram

  • Title

1

Giant-Vac 3010229

Loader base

Note: 25HP Model

$

$

Currently unavailable

1

Giant-Vac 3010230

Loader base

Note: 35HP Model

$

$

Currently unavailable

1a

Giant-Vac 3031740

1/2-13 x 2 hex bolt (mounts base to trailer frame) (Not shown)

$

$

Currently unavailable

1b

Giant-Vac 3031043

1/2 flat washer (Not shown)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

1c

3031489

5/8 flat washer (Not shown)

$

$

Not available

1d

Giant-Vac 3031121

1/2 lock washer (Not shown)

$

$

Currently unavailable

1e

Giant-Vac 3031406

1/2 lock nut (Not shown)
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

2

Giant-Vac 3010035

Blower housing

Note: 25HP Model

$

$

Currently unavailable

2

Giant-Vac 3010220

Blower housing (complete w/bolt-in wear liner)

Note: 35HP Model

$

$

Not available

4

Giant-Vac 3031114

3/8-16 x 1 hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Giant-Vac 3031115

3/8 lockwasher
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

6

Giant-Vac 3031116

3/8-16 hex nut

$

$

Currently unavailable

7

Giant-Vac 3021517

Impeller 20"

Note: 25HP Model

$

$

Currently unavailable

7

Giant-Vac 3021518

Impeller 25"

Note: 35HP Model

$

$

Currently unavailable

8

Giant-Vac 3031447

5/8-18 x 2 impeller bolt & key group

Note: 25HP Model

$

$

Currently unavailable

9

3031127

Impeller key

Note: 35HP Model

$

$

Not available

10A

Giant-Vac 3031326

5/8 lock washer (Not shown)

Note: 35HP Model

$

$

Not available

10

Giant-Vac 3031327

5/8 x 2 impeller bolt

Note: 35HP Model

$

$

Currently unavailable

11

Giant-Vac 3020159

16 intake flange

Note: 35HP Model

$

$

Not available

12

Giant-Vac 3031118

1/2 hex nut

Note: 35HP Model

$

$

Currently unavailable

13

Giant-Vac 3031121

1/2 lock washer

Note: 35HP Model

$

$

Currently unavailable

16

Giant-Vac 3040113

Fuel tank

Note: 25HP Model

$

$

Currently unavailable

17

Giant-Vac 3031153

Fuel tank strap

Note: 25HP Model

$

$

Not available

19

Giant-Vac 3040114

Fuel cap – specify ‘gas’

Note: 25HP Model

$

$

Currently unavailable

22

Giant-Vac 3061044

Valve assembly

$

$

Currently unavailable

23

Giant-Vac 3023165

Valve handle

$

$

Currently unavailable

24

Giant-Vac 3027199

Valve handle holder

$

$

Currently unavailable

25

Giant-Vac 3031518

Wire set

$

$

Currently unavailable

26

Giant-Vac 3031519

Replacement micro switch for valve assembly

$

$

Not available

27

Giant-Vac 3031195

1/4-20 x 1-1/4 hex bolt (valve assembly mount)

$

$

Currently unavailable

27A

Giant-Vac 3031013

1/4 lock washer
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

27B

Giant-Vac 3031030

1/4-20 hex nut

$

$

Currently unavailable

28

Giant-Vac 3061045

Hydraulic hose – 1/2 x 23 – valve to jack

$

$

Currently unavailable

29

Giant-Vac 3061046

Hydraulic hose – 1/2 x 43 – valve to jack

$

$

Currently unavailable

30

Giant-Vac 3061073

Hydraulic fitting – Tompkins 2501LL-8-8 (Not shown)

$

$

Currently unavailable

31

Giant-Vac 3061048

Hydraulic hose – 1/2 x 63 – valve to hyd. power unit

$

$

Currently unavailable

32

Giant-Vac 3061077

Hydraulic fitting – Tompkins 2501-8-8 (Not shown)

$

$

Currently unavailable

32a

Giant-Vac 3061078

Hydraulic fitting – Tompkins 2404-8-8 (Not shown)

$

$

Currently unavailable

33

Giant-Vac 3061050

Hydraulic hose – 1/2 x 49 – valve to hyd. power unit

$

$

Currently unavailable

34

Giant-Vac 3024634

Stack & elbow assembly (with wear liner)

Note: 25HP Model

$

$

Currently unavailable

34

Giant-Vac 3024635

Stack & elbow assembly (with wear liner)

Note: 35HP Model

$

$

Not available

35

Giant-Vac 3024636

Discharge stack – leaf box side

Note: 25HP Model

$

$

Currently unavailable

35

Giant-Vac 3024637

Discharge stack – leaf box side

Note: 35HP Model

$

$

Currently unavailable

36

Giant-Vac 3031532

Discharge stack gasket set

$

$

Currently unavailable

37

Giant-Vac 3031117

1/2 x 4-1/2 hex bolt

Note: 25HP Model

$

$

Currently unavailable

37

Giant-Vac 3031512

1/2 x 1-3/4 hex bolt

Note: 35HP Model

$

$

Currently unavailable

38

Giant-Vac 3031118

1/2 hex nut

$

$

Currently unavailable

39

Giant-Vac 3031121

1/2 lock washer

$

$

Currently unavailable

40

Giant-Vac 3031119

1/2 flat washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

41

Giant-Vac 3031123

3/8-16 x 1-1/4 hex bolt
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

42

Giant-Vac 3031116

3/8-16 hex nut

$

$

Currently unavailable

43

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

44

Giant-Vac 3031115

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

61

Giant-Vac 3061079

Hydraulic pump (power unit)

$

$

Not available

61a

Giant-Vac 3031492

3/8-16 x 3/4 hex bolt (power unit mounting bolt)(Not shown)

$

$

Not available

61b

Giant-Vac 3031033

3/8-16 x 1 hex bolt (power unit mounting bolt)(Not shown)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

61c

Giant-Vac 3031034

3/8 flat washer (Not shown)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

61d

Giant-Vac 3031115

3/8 lock washer (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

61e

Giant-Vac 3031116

3/8-16 hex nut (Not shown)

$

$

Currently unavailable

62

Giant-Vac 3061080

Breather cap

$

$

Currently unavailable

63

Giant-Vac 3034019

Intake hose – 12 x 10’

Note: 25HP Model

$

$

Currently unavailable

63

Giant-Vac 3034022

Intake hose – 16 x 7’ blue

Note: 35HP Model

$

$

Currently unavailable

64

Giant-Vac 3034020

12 hose clamp

Note: 25HP Model

$

$

Currently unavailable

64

Giant-Vac 3034024

16 hose clamp

Note: 35HP Model

$

$

Currently unavailable

65

Giant-Vac 3020156

12 intake nozzle

Note: 25HP Model

$

$

Currently unavailable

65

Giant-Vac 3020157

16 intake nozzle

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3070788

Replacement housing liner (w/hardware) (Not shown)

Note: 35HP Model

$

$

Not available

3070858

Replacement discharge stack liner (w/hardware) – specify model (Not shown)

$

$

Not available

3039070

* 25 HP Kohler Command engine (Not shown)

Note: 25HP Model

$

$

Not available

Giant-Vac 3039022

* 30 HP Wisconsin engine (Not shown)

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3031595

3/8-16 x 1-3/4 hex bolt (engine mount bolt) (Not shown)
(Superseded to 704289)

Note: 25HP Model

$4.99

$

In Stock, Qty 12

0

Giant-Vac 3031123

3/8-16 x 1-1/4 hex bolt (engine mount bolt) (Not shown)
(Superseded to 703871)

Note: 35HP Model

$4.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031034

3/8 flat washer (Not shown)
(Superseded to 703878)

Note: 35HP Model

$3.99

$

In Stock, Qty 20+

0

Giant-Vac 3031115

3/8 lock washer (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

Giant-Vac 3031116

3/8-16 nut (Not shown)

$

$

Currently unavailable

Giant-Vac 3031810

Brass fuel tank fitting – 3/8 IPT to 1/4 Farrell (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3031753

1/4 copper fuel line – 15 length (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3031755

1/4 rubber fuel line – 10 length (Not shown)

Note: 25HP Model

$

$

Not available

Giant-Vac 3034041

1/2 hose clamp (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3040100

Battery box (Not shown)

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3031123

3/8-16 x 1-1/4 hex bolt (Not shown)
(Superseded to 703871)

Note: 35HP Model

$4.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031115

3/8 lock washer (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

Giant-Vac 3031116

3/8-16 nut (Not shown)

$

$

Currently unavailable

Giant-Vac 3039020

Battery (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3039021

Battery (Not shown)

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3031642

Battery cable – 32SS (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3031643

Battery cable – 16SS (Not shown)

Note: 25HP Model

$

$

Currently unavailable

3031763

Battery cable – 16S (Not shown)

Note: 35HP Model

$

$

Not available

Giant-Vac 3031818

Battery cable – 42S (Not shown)

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3031836

Terminal cover – red (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3031837

Terminal cover - black (Not shown)

Note: 25HP Model

$

$

Currently unavailable

Giant-Vac 3031839

Terminal cover - black (Not shown)

Note: 35HP Model

$

$

Currently unavailable

Giant-Vac 3031840

Terminal cover - red (Not shown)

Note: 35HP Model

$

$

Currently unavailable
