TLR3510251W (3800012) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Hose Support Boom Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

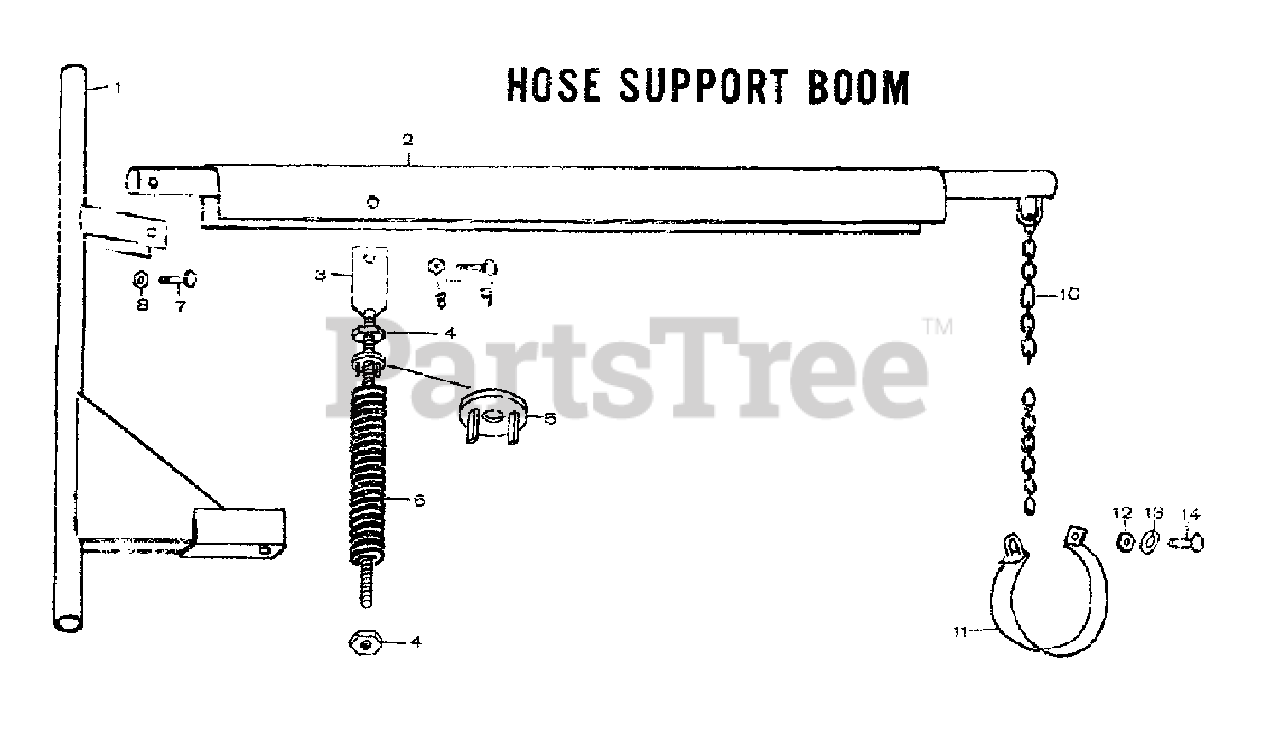

Hose Support Boom Parts Diagram

  • Title
1

Giant-Vac 3040107

Boom vertical member

$

$

Currently unavailable

2

Giant-Vac 3040106

Boom horizontal member

$

$

Not available

3

Giant-Vac 3040108

Threaded spring guide

$

$

Currently unavailable

4

3031110

3/4 nut

$

$

Not available

5

Giant-Vac 3031370

3/4 flat washer

$

$

Currently unavailable

6

Giant-Vac 3031332

Boom coil spring

$

$

Currently unavailable

7

Giant-Vac 3031333

1/2 x 3 hex bolt

$

$

Currently unavailable

8

Giant-Vac 3031476

1/2 lock nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

9

Giant-Vac 3031333

1/2 x 3 hex bolt

$

$

Currently unavailable

10

Giant-Vac 3031140

Boom chain

$

$

Currently unavailable

11

Giant-Vac 3040110

Hose support band – 12

Note: 25HP Model

$

$

Currently unavailable

11

Giant-Vac 3040111

Hose support band – 16

Note: 35HP Model

$

$

Currently unavailable

12

Giant-Vac 3031142

5/16 hex nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Giant-Vac 3031003

5/16 lock washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Giant-Vac 3031141

5/16 x 3 1/2 hex bolt

$

$

Not available
