TLR2910202BVG (3800025) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 29hp Engine Intake & Frame Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 29hp

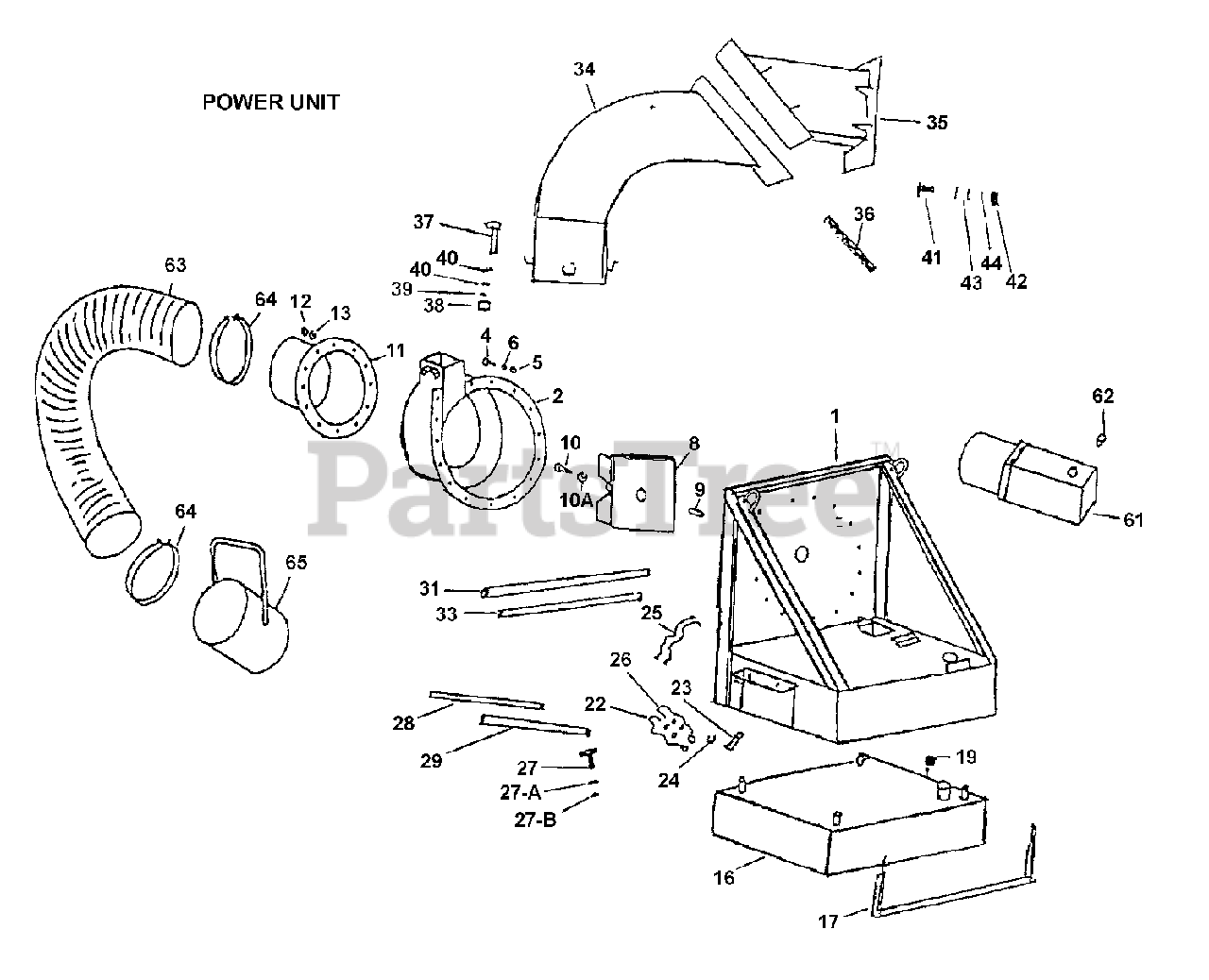

Engine Intake & Frame Parts Diagram

  • Title

1

Giant-Vac 3010229

Loader Base (29 HP)

$

$

Currently unavailable

1

3010259

Loader Base (35 HP)

$

$

Not available

1a

Giant-Vac 3031740

1/2-13 x 2 Hex Bolt (Mounts Base to Trailer Frame)

Note: not shown

$

$

Currently unavailable

1b

Giant-Vac 3031043

1/2 Flat Washer
(Superseded to 703853)

Note: not shown

$4.99

$

In Stock, Qty 20+

0

1c

3031489

5/8 Flat Washer

Note: not shown

$

$

Not available

1d

Giant-Vac 3031078

1/2 Lock Washer

Note: not shown

$

$

Currently unavailable

1e

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

Note: not shown

$4.99

$

In Stock, only 1 left!

0

2

Giant-Vac 3010035

Blower Housing (29 HP)

$

$

Currently unavailable

2

Giant-Vac 3010220

Blower Housing (w/Bolt-in Wear Liner) (35 HP)

$

$

Not available

4

Giant-Vac 3031033

3/8-16 x 1 Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

6

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

8

Giant-Vac 3021517

Impeller (29 HP)

$

$

Currently unavailable

8

Giant-Vac 3021518

Impeller (35 HP)

$

$

Currently unavailable

--

Giant-Vac 3031447

5/8-18 x 2 Impeller Bolt & Key Group (includes 9, 10, & 10A) (29 HP)

$

$

Currently unavailable

9

3031127

Impeller Key (35 HP)

$

$

Not available

10

Giant-Vac 3031327

5/8 x 2 Impeller Bolt (35 HP)

$

$

Currently unavailable

10A

Giant-Vac 3031326

5/8 Lock Washer (35 HP)

$

$

Not available

11

Giant-Vac 3020159

16" Intake Flange (35 HP)

$

$

Not available

12

Giant-Vac 3031022

1/2 Hex Nut (35 HP)

$

$

Currently unavailable

13

Giant-Vac 3031078

1/2 Lock Washer (35 HP)

$

$

Currently unavailable

16

Giant-Vac 3040113

Fuel Tank (29 HP)

$

$

Currently unavailable

16

3040185

Fuel Tank (2009 EPA) (35 HP)

$

$

Not available

17

3031157

Fuel Tank Strap (29 HP)

$

$

Not available

--

3031158

Fuel Tank Holder (29 HP)

$

$

Not available

--

3030445

Inline Fuel Valve (29 HP)

$

$

Not available

19

Giant-Vac 3040114

Fuel Cap - Specify Gas (29 HP)

$

$

Currently unavailable

19

3040173

Fuel Cap (2009 EPA) (35 HP)

$

$

Not available

22

Giant-Vac 3061044

Valve Assembly

$

$

Currently unavailable

23

Giant-Vac 3023165

Valve Handle

$

$

Currently unavailable

24

Giant-Vac 3027199

Valve Handle Holder

$

$

Currently unavailable

25

Giant-Vac 3031518

Wire Set

$

$

Currently unavailable

26

Giant-Vac 3031519

Replacement Micro Switch for Valve Assembly

$

$

Not available

27

Giant-Vac 3031195

1/4-20 x 1-1/4 Hex Bolt (Valve Assembly Mount)

$

$

Currently unavailable

27A

Giant-Vac 3031013

1/4 Lock Washer
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

27B

Giant-Vac 3031030

1/2-20 Hex Nut

$

$

Currently unavailable

28

Giant-Vac 3061045

Hydraulic Hose 1/2 x 23 Valve to Jack

$

$

Currently unavailable

29

Giant-Vac 3061046

Hydraulic Hose 1/2 x 43 Valve to Jack

$

$

Currently unavailable

31

Giant-Vac 3061048

Hydraulic Hose 1/2 x 63 Valve to Hydraulic Power Unit

$

$

Currently unavailable

33

Giant-Vac 3061050

Hydraulic Hose 1/2 x 49 Valve to Hydraulic Power Unit

$

$

Currently unavailable

34

Giant-Vac 3024634

Stack & Elbow Assembly (w/Wear Liner) (29 HP)

$

$

Currently unavailable

34

Giant-Vac 3024635

Stack & Elbow Assembly (w/Wear Liner) (35 HP)

$

$

Not available

35

Giant-Vac 3024636

Discharge Stack - Leaf Box Side (29 HP)

$

$

Currently unavailable

35

Giant-Vac 3024637

Discharge Stack - Leaf Box Side (35 HP)

$

$

Currently unavailable

36

Giant-Vac 3031532

Discharge Stack Gasket Set

$

$

Currently unavailable

37

Giant-Vac 3031021

1/2 x 4-1/2 Hex Bolt (29 HP)

$

$

Not available

37

Giant-Vac 3031086

1/2 x 1-3/4 Hex Bolt (35 HP)

$

$

Currently unavailable

38

Giant-Vac 3031022

1/2 Hex Nut

$

$

Currently unavailable

39

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

40

Giant-Vac 3031043

1/2 Flat Washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

41

Giant-Vac 3031097

3/8-16 x 1-1/4 Hex Bolt
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

42

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

43

Giant-Vac 3031034

3/8 Flat Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

44

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

61

Giant-Vac 3061079

Hydraulic Power Unit

$

$

Not available

62

Giant-Vac 3061080

Breather Cap

$

$

Currently unavailable

63

Giant-Vac 3034019

Intake Hose 12" x 10' (29 HP)

$

$

Currently unavailable

63

Giant-Vac 3034022

Intake Hose 16" x 7' Blue (35 HP)

$

$

Currently unavailable

64

Giant-Vac 3034020

12" Hose Clamp (29 HP)

$

$

Currently unavailable

64

Giant-Vac 3034024

16" Hose Clamp (35 HP)

$

$

Currently unavailable

65

Giant-Vac 3020156

12" Intake Nozzle (29 HP)

$

$

Currently unavailable

65

Giant-Vac 3020157

16" Intake Nozzle (35 HP)

$

$

Currently unavailable

--

3031158

Fuel Tank Holder

Note: not shown

$

$

Not available

--

3030445

Inline Fuel Valve

Note: not shown

$

$

Not available

--

Giant-Vac 3061073

Hydraulic Fitting - 2501LL-8-8

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3061077

Hydraulic Fitting - 2501-8-8

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3061078

Hydraulic Fitting - 2404-8-8

Note: not shown

$

$

Currently unavailable

--

3031489

5/8 Flat Washer

Note: not shown

$

$

Not available

--

Giant-Vac 3031078

1/2 Lock Washer

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031326

5/8 Lock Washer

Note: not shown

$

$

Not available

--

3031489

5/8 Flat Washer

Note: not shown

$

$

Not available

--

Giant-Vac 3031492

3/8-16 x 3/4 Hex Bolt (Power Unit Mounting Bolt)

Note: not shown

$

$

Not available

--

Giant-Vac 3031033

3/8-16 x 1 Hex Bolt (Power Unit Mounting Bolt)
(Superseded to 703407)

Note: not shown

$11.99

$

In Stock, Qty 7

0

--

Giant-Vac 3031034

3/8 Flat Washer
(Superseded to 703878)

Note: not shown

$3.99

$

In Stock, Qty 20+

0

--

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

Note: not shown

$3.49

$

In Stock, Qty 15

0

--

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

Note: not shown

$4.49

$

Usually ships in 2-12 days

0

--

Giant-Vac 3070788

Replacement Hosing Liner (w/Hardware) (35 HP)

Note: not shown

$

$

Not available

--

3070858

Replacement Discharge Stack (w/Hardware)

Note: not shown

$

$

Not available

--

542477-0125-E1

29hp Briggs & Stratton Engine (29 HP)

Note: not shown

$

$

Not available

--

613477-0118-E1

35hp Briggs & Stratton Engine (35 HP)

Note: not shown

$

$

Not available

--

3032301

Exhaust Elbow 90-Degrees (35 HP)

Note: not shown

$

$

Not available

--

3032302

Cap, Rain (35 HP)

Note: not shown

$

$

Not available

--

3032303

Clamp, Muffler U-Bolt (35 HP)

Note: not shown

$

$

Not available

--

Giant-Vac 3031595

3/8-16 x 1-3/4 Hex Bolt (Engine Mount Bolt) (29 HP)
(Superseded to 704289)

Note: not shown

$4.99

$

In Stock, Qty 12

0

--

Giant-Vac 3031097

3/8-16 x 1-1/4 Hex Bolt (Engine Mount Bolt) (35 HP)
(Superseded to 703871)

Note: not shown

$4.99

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031034

3/8 Flat Washer (35 HP)
(Superseded to 703878)

Note: not shown

$3.99

$

In Stock, Qty 20+

0

--

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

Note: not shown

$3.49

$

In Stock, Qty 15

0

--

Giant-Vac 3031009

3/8-16 Nut
(Superseded to 7091302SM)

Note: not shown

$4.49

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031810

Brass Fuel Tank Fitting 3/8 IPT to 1/4 Farrell (29 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031828

Brass Fuel Tank Fitting 1/4 IPT to 1/4 Farrell (35 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031753

1/4 Copper Fuel Line - 15" Length

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031755

1/4 Rubber Fuel Line - 10" Length

Note: not shown

$

$

Not available

--

Giant-Vac 3034041

1/2" Hose Clamp

Note: not shown

$

$

Currently unavailable

--

3039190

Valve, Oil Drain (35 HP)

Note: not shown

$

$

Not available

--

3061215

Lock-on Hose 1/2

Note: not shown

$

$

Not available

--

3061233

Hydraulic Adapter 14MM (35 HP)

Note: not shown

$

$

Not available

--

3061234

Seal 14MM (35 HP)

Note: not shown

$

$

Not available

--

Giant-Vac 3039101

Battery Box (Plastic) (35 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3039020

Battery (29 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3039021

Battery (35 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031642

Battery Cable 32SS

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031643

Battery Cable 16SS (29 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031826

Battery Cable 48SS (35 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031836

Terminal Cover - Red (29 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031837

Terminal Cover - Black (29 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031453

Pusher Bolts (35 HP)

Note: not shown

$

$

Not available

--

3037172

Belt Guards Bearing Pulley (35 HP)

Note: not shown

$

$

Not available

--

3037173

Belt Guards Engine Pulley (35 HP)

Note: not shown

$

$

Not available

--

3037174

Belt Guards Right Bearing Box (35 HP)

Note: not shown

$

$

Not available

--

3037175

Belt Guards Left Bearing Box (35 HP)

Note: not shown

$

$

Not available

--

Giant-Vac 3036344

Belts 450-5 (35 HP)

Note: not shown

$

$

Currently unavailable

--

3036347

Sheave, Pulley 6.90 (35 HP)

Note: not shown

$

$

Not available

--

3036340

Bushing 1.438 (35 HP)

Note: not shown

$

$

Not available

--

3036346

Sheave, Pulley 4.75 (35 HP)

Note: not shown

$

$

Not available

--

Giant-Vac 3036233

Bushing 1.438 (35 HP)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3036163

Bearing 1.438 (35 HP)

Note: not shown

$

$

Currently unavailable

--

3036345

Shaft, Impeller (35 HP)

Note: not shown

$

$

Not available

--

Giant-Vac 3031458

Collar, Split Single 1.438 (35 HP)

Note: not shown

$

$

Currently unavailable
