TLR2510201KH (3800010) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 25hp Leaf Box Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 25hp

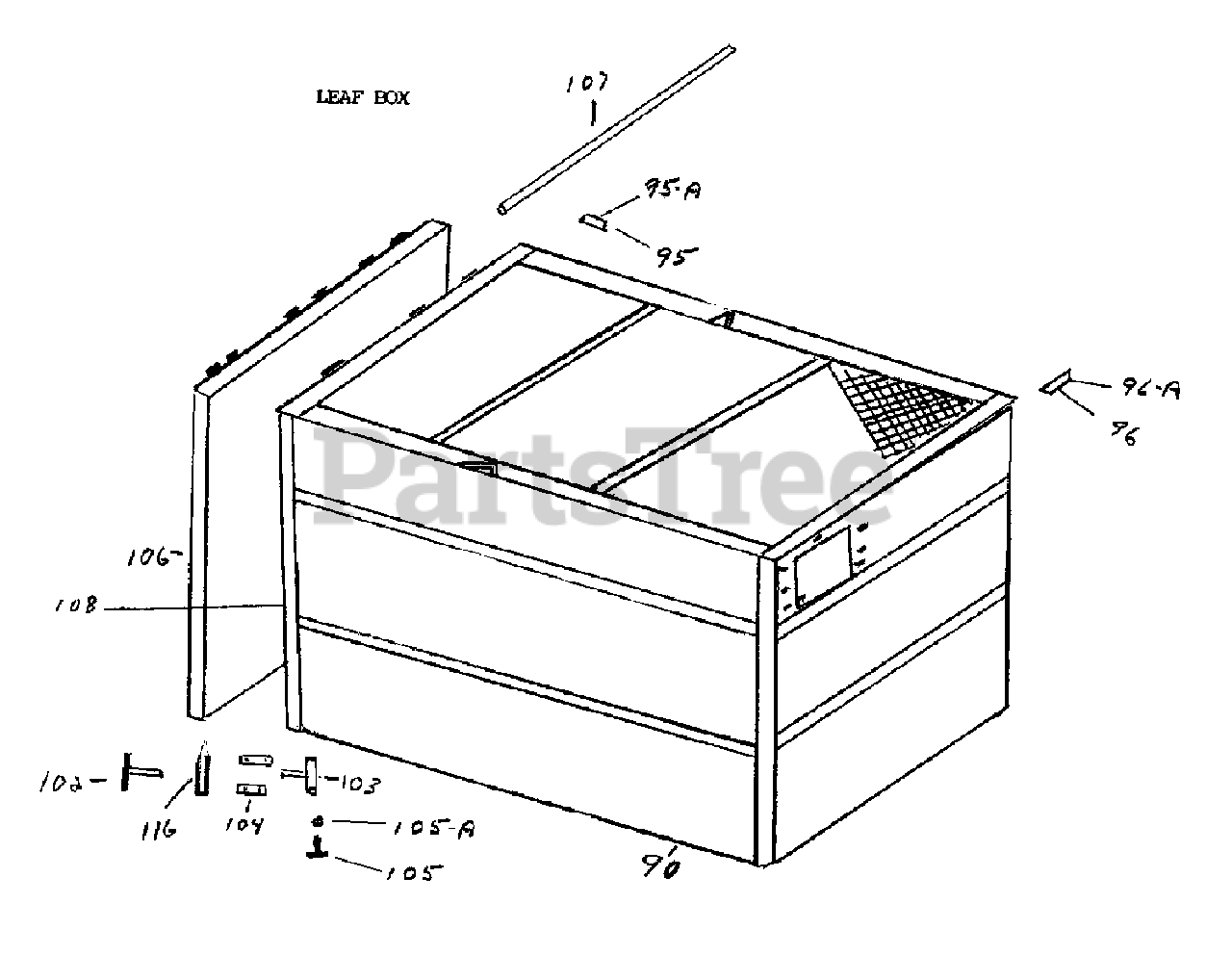

Leaf Box Parts Diagram

  • Title
90

3027379

Leaf box – 10 cubic yard

$

$

Not available

95

Giant-Vac 3031499

Running light assembly (‘cat’s eye’) – red

$

$

Currently unavailable

95A

Giant-Vac 3031501

Replacement lens - red

$

$

Currently unavailable

96

Giant-Vac 3031500

Running light assembly (‘cat’s eye’) – amber

$

$

Currently unavailable

96A

Giant-Vac 3031502

Replacement lens - amber

$

$

Currently unavailable

102

Giant-Vac 3031625

5/8-11 handle nut

$

$

Currently unavailable

102A

3031489

5/8 flat washer (Not shown)

$

$

Not available

103

Giant-Vac 3031504

Door lock pivot T-bolt

$

$

Not available

104

Giant-Vac 3027195

Door lock side piece

$

$

Currently unavailable

105

3031335

1/2-13 x 4 hex bolt

$

$

Not available

105

Giant-Vac 3031117

1/2-13 x 4-1/2 hex bolt

$

$

Currently unavailable

105A

Giant-Vac 3031406

1/2-13 lock nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

106

3027380

Back door

$

$

Not available

107

Giant-Vac 3023160

Back door rod

$

$

Not available

108

Giant-Vac 3031506

Door gasket

$

$

Currently unavailable

116

Giant-Vac 3027200

Door latch holder

$

$

Currently unavailable
