TLR20520KH (3800016) - Giant-Vac 5-Yard Gravity Dump Self-Contained Loader, 20hp Trailer Group Parts Diagram

5-Yard Gravity Dump Self-Contained Loader, 20hp

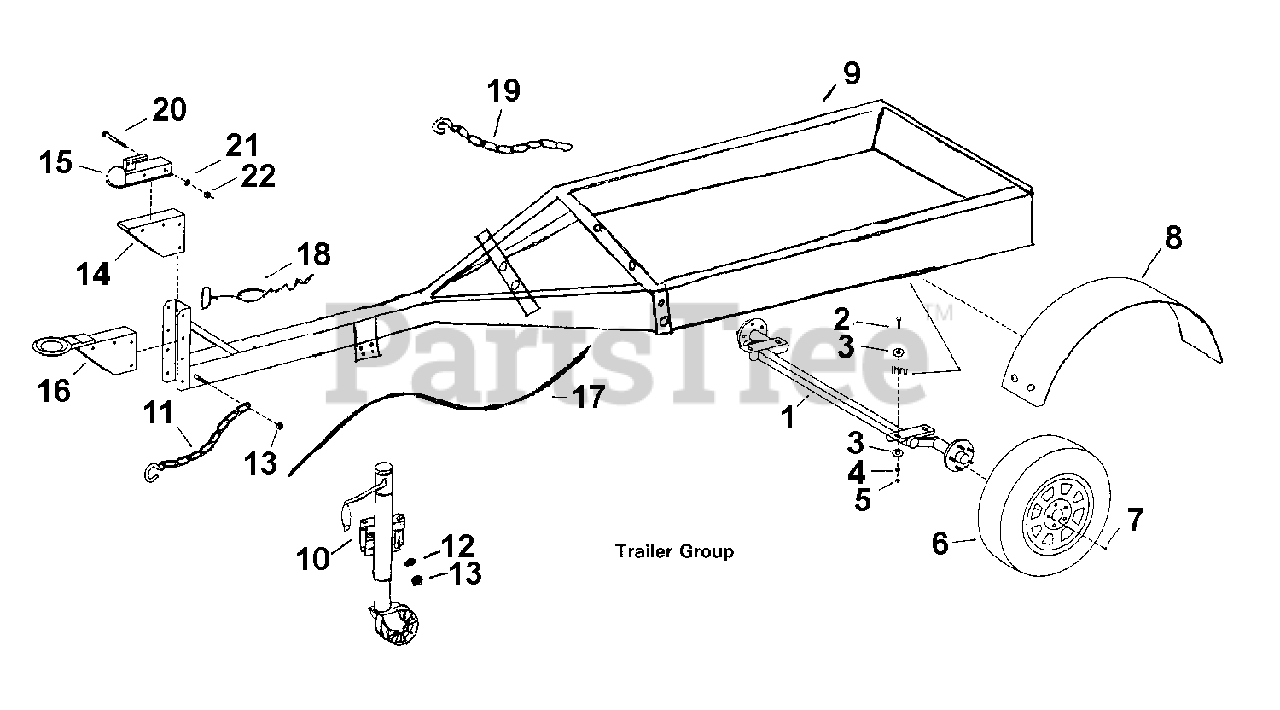

Trailer Group Parts Diagram

  • Title

1

Giant-Vac 3033207

Torflex Axle

$

$

Currently unavailable

2

3032154

1/2-13x1-1/4 Hex Bolt

$

$

Not available

3

3032155

1/2 Flat Washer

$

$

Not available

4

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

5

Giant-Vac 3032156

1/2-13 Hex End Lock Nut
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

6

Giant-Vac 3033208

Tires 700x15

$

$

Currently unavailable

7

Giant-Vac 3031152

Lug Nuts

$

$

Currently unavailable

8

3033222L

Fender R.H.

$

$

Not available

8

3033222R

Fender L.H.

$

$

Not available

9

3027130

Trailer Frame

$

$

Not available

10

Giant-Vac 3033173

Jack, 2 Wheel

$

$

Currently unavailable

11

Giant-Vac 3031641

Chain, Safety w/1 S-Hook

$

$

Currently unavailable

12

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

15

3038007

Ball Hitch & Adapter 2-5/16

$

$

Not available

16

Giant-Vac 3038012

Pintle Ring (Optional)

$

$

Not available

17

3031887

Wiring Harness

$

$

Not available

18

3070872

Breakaway Switch

$

$

Not available

19

3031671

Chain, Nozzle Retainer 1/2x12"

$

$

Not available

20

Giant-Vac 3031467

1/2-13x3-1/2 Hex Bolt

$

$

Currently unavailable

21

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

22

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

--

3031017

5/8x4-1/2 Hex Bolt (Not shown)

$

$

Not available

--

3031199

5/8 Lock Nut (Not shown)

$

$

Not available

--

Giant-Vac 3031033

3/8-16x1 Hex Bolt (Not shown)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

--

Giant-Vac 3032117

3/8 Cushion Clamp (Not shown)

$

$

Currently unavailable
