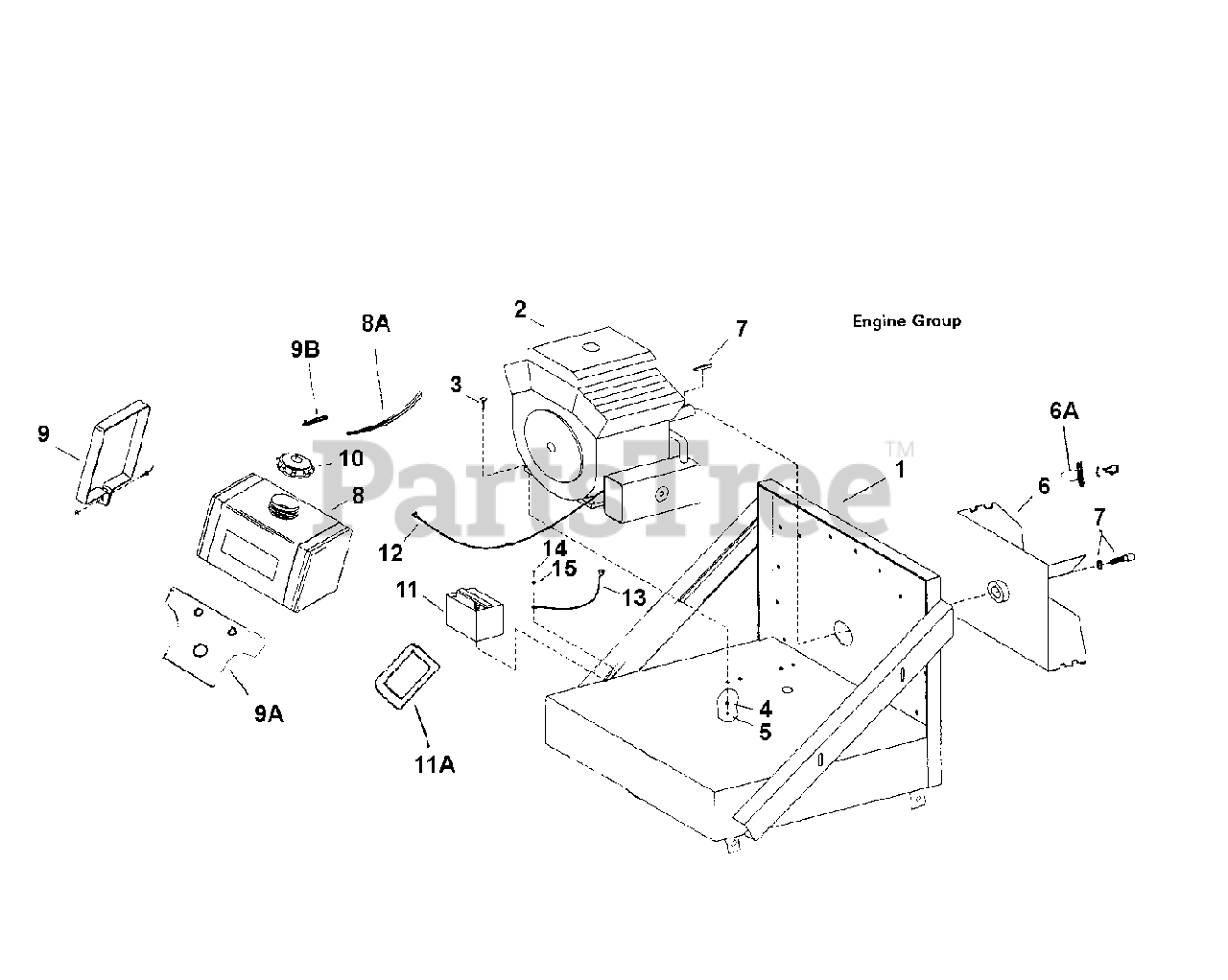

TLR20520KH (3800016) - Giant-Vac 5-Yard Gravity Dump Self-Contained Loader, 20hp Engine Group Parts Diagram

5-Yard Gravity Dump Self-Contained Loader, 20hp

Engine Group Parts Diagram

  • Title

1

3010271

Engine Base

$

$

Not available

2

3039069

* 20HP Kohler Command Engine

$

$

Not available

3

Giant-Vac 3031595

3/8-16x1-3/4 Hex Bolt
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

4

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

6

Giant-Vac 3021610

Impeller

$

$

Currently unavailable

7

Giant-Vac 3031447

Kit, Key and Bolt

$

$

Currently unavailable

8

3040117

Fuel Tank

$

$

Not available

9

3031157

Fuel Tank Strap

$

$

Not available

10

--

Fuel Tank Cap (Part of Tank)

$

$

Not available

11

Giant-Vac 3039020

Battery

$

$

Currently unavailable

12

Giant-Vac 3031642

Battery Cable - 32SS (Positive)

$

$

Currently unavailable

13

Giant-Vac 3031643

Battery Cable - 16SS (Ground)

$

$

Currently unavailable

11A

Giant-Vac 3040118

Battery Box

$

$

Currently unavailable

6A

Giant-Vac 3021566

Impeller Hub

$

$

Currently unavailable

8A

Giant-Vac 3031755

Hose, Rubber Fuel 1/4 inch

$

$

Not available

9A

3031158

Fuel Tank Mount

$

$

Not available

9B

3031445

In-Line Fuel Valve

$

$

Not available

--

Giant-Vac 3039129

Exhaust Deflector (Not shown)

$

$

Currently unavailable

--

Giant-Vac 3031747

3/8-16x2 Hex Bolt (Not shown)

$

$

Currently unavailable

--

Giant-Vac 3034041

Clamp 1/2 inch (Not shown)

$

$

Currently unavailable

--

Giant-Vac 3032117

3/8 Cushion Clamp (Not shown)

$

$

Currently unavailable

--

Giant-Vac 3031837

Battery Terminal Cover - Black (Not shown)

$

$

Currently unavailable

--

3027375

Hub Safety Retainer (Not shown)

$

$

Not available

--

3039187

Muffler Guard (Not shown)

$

$

Not available
