TLG13651BVG (3800028) - Giant-Vac Tailgate Mount Truck Loader Vacuum, 13hp TLG131651BVG Parts Parts Diagram

Tailgate Mount Truck Loader Vacuum, 13hp

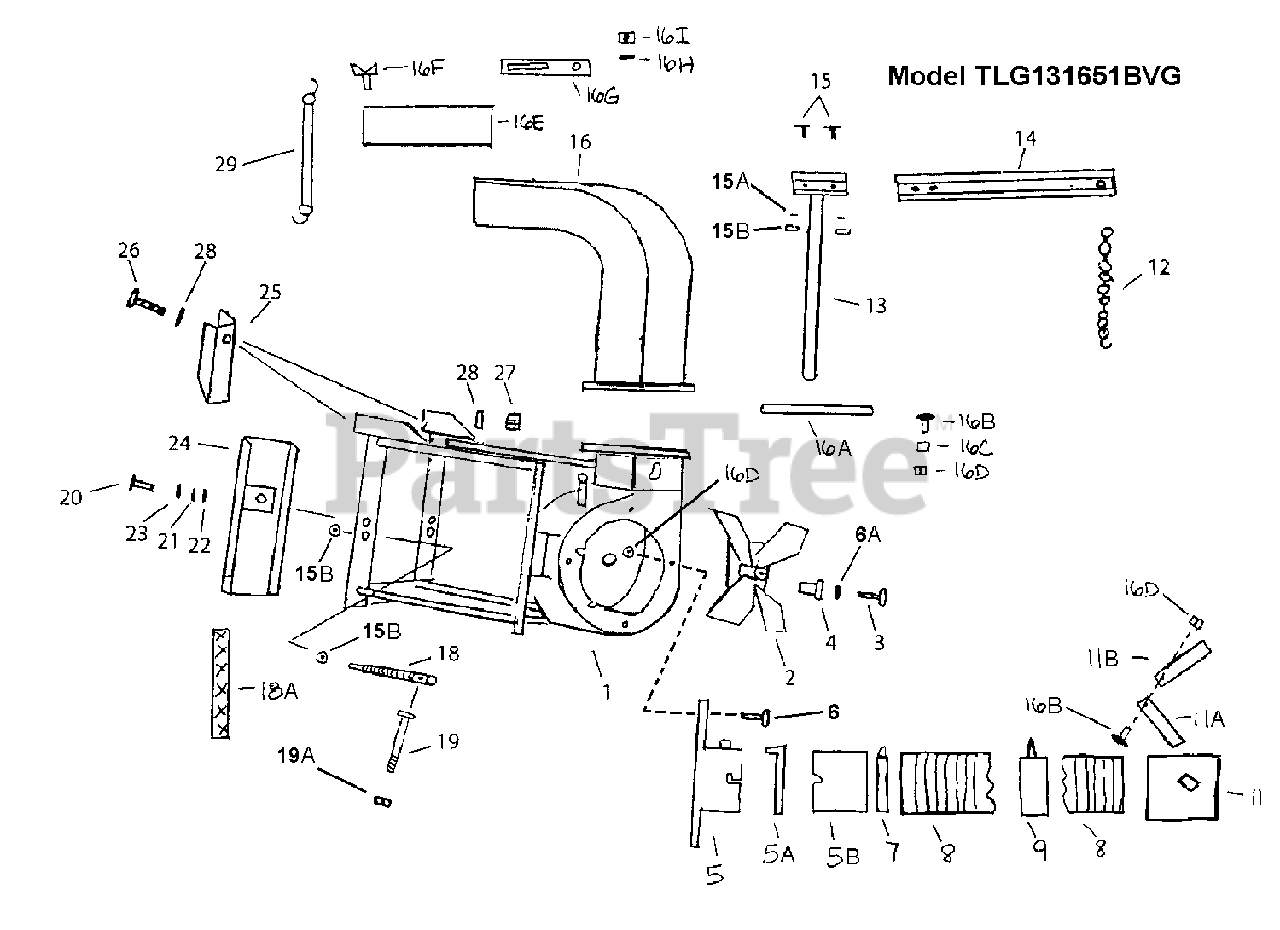

TLG131651BVG Parts Parts Diagram

  • Title

1

3010129

Motor Base & Housing Swivel Style for 13hp BVG

$

$

Not available

2

Giant-Vac 3021608

Impeller, 16.5" (Complete w/Hub & Hardware - Includes Ref. 3 & 4)

$

$

Not available

3

Giant-Vac 3031005

5/16-18 x 1-1/4 GR5 Hex Bolt
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

4

Giant-Vac 3021560

Taper-Lok Hub 1in Diameter

$

$

Currently unavailable

--

Giant-Vac 3021594

Taper-Lok Hub Cover (not part of Impeller) (not shown)

$

$

Currently unavailable

5

Giant-Vac 3020200

Intake Flange

$

$

Not available

5A

Giant-Vac 3020202

Intake Flange Safety Cover 8"

$

$

Not available

5B

Giant-Vac 3020204

Quick-Release Hose Adapter 8"

$

$

Currently unavailable

6

Giant-Vac 3031660

5/16 x 3/4 Thread Bolt

$

$

Currently unavailable

6a

Giant-Vac 3031003

5/16 Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Giant-Vac 3034015

8in Hose Clamp

$

$

Currently unavailable

8

Giant-Vac 3034006

Intake Hose 8.00 x 10ft

$

$

Currently unavailable

9

Giant-Vac 3040120

Hose Support Band

$

$

Not available

11

Giant-Vac 3020140

Intake Nozzle 8in

$

$

Not available

11A

Giant-Vac 3020141

Intake Nozzle Adjustable Handle

$

$

Currently unavailable

11B

Giant-Vac 3031590

Intake Nozzle Handle Grip

$

$

Not available

12

Giant-Vac 3031140

Boom Chain

$

$

Currently unavailable

13

Giant-Vac 3040121

Lower Boom Support

$

$

Not available

14

Giant-Vac 3040122

Upper Boom Support

$

$

Not available

15

3031093

1/2-13 x 1 Hex Bolt

$

$

Not available

15A

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

15B

Giant-Vac 3031022

1/2-13 Nut

$

$

Currently unavailable

16

Giant-Vac 3024597

Exhaust Elbow & Stack

$

$

Currently unavailable

16A

3024600

Elbow Retaining Ring

$

$

Not available

16B

Giant-Vac 3031032

5/16-18 x 1" Hex Bolt
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16C

3024601

5/16 Pivot Spacers

$

$

Not available

16D

Giant-Vac 3031004

5/16 Lock Nuts
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16E

3024598

Stack Extension

$

$

Not available

16F

Giant-Vac 3031026

3/8 Wing Bolt

$

$

Not available

16G

3024599

Stack Extension Retainer

$

$

Not available

16H

Giant-Vac 3031115

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16I

Giant-Vac 3031009

3/8 Wing Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

18

Giant-Vac 3031494

Pusher Rod 1 x 7

$

$

Currently unavailable

18A

Giant-Vac 3031889

Rubber Gasket

$

$

Not available

19

Giant-Vac 3031495

3/8-16 x 5 Hex Bolt (Pusher Rod Handle)

$

$

Currently unavailable

19a

Giant-Vac 3031355

3/8-16 Lock Nut
(Superseded to 1922694SM)

$

$

Not available

20

Giant-Vac 3031492

3/8 x 3/4 Hex Bolt

$

$

Not available

21

3030134

3/8 Flat Washer

$

$

Not available

22

Giant-Vac 3031043

1/2 Flat Washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

23

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

24

Giant-Vac 3023158

Front Pusher Plate

$

$

Not available

25

Giant-Vac 3023159

Rear Holder Arm

$

$

Currently unavailable

26

3031907

5/8 x 4 Hex Bolt

$

$

Not available

27

Giant-Vac 3031490

5/8 Lock Nut

$

$

Currently unavailable

28

3031489

5/8 Flat Washer

$

$

Not available

29

Giant-Vac 3031358

Rubber Tie Down

$

$

Currently unavailable

245432-0274-E1

* Engine, 13HP B&S Vanguard, Mod. 245432-0274-E1 (not shown)

$

$

Not available

3039254

Exhaust Deflector (not shown)

$

$

Not available

Giant-Vac 3031112

3/8-16 x 1-1/2 Hex Bolt (Engine Bolt) (not shown)
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

Giant-Vac 3031987

3/8-16 Small Serrated Flange Nut (not shown)
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

Giant-Vac 3032132

3/8-16 Large Serrated Flange Nut (not shown)

$

$

Currently unavailable

Giant-Vac 3031796

5/16-24 x 1-1/4 Hex Bolt (Vibration Suppression Bolt) (not shown)
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031027

5/16 Flat Washer (not shown)
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

Giant-Vac 3031034

3/8 Flat Washer (not shown)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

Giant-Vac 3031794

Impeller Bolt .375-24 x 2 (not shown)

$

$

Currently unavailable

3079300

Decal, Danger Safety (not shown)

$

$

Not available

3079301

Decal, Warning Safety (not shown)

$

$

Not available

3079302

Decal, Notice (not shown)

$

$

Not available

Giant-Vac 3079174

Decal, GV Logo, ,9in White on Black (not shown)

$

$

Currently unavailable

Giant-Vac 3031623

5/16 x 2-1/2 Hex Bolt (not shown)
(Superseded to 7091046YP)

$3.99

$

In Stock, only 2 left!

0

--

Giant-Vac 3031890

5/16 Fender Washers (not shown)
(Superseded to 3031890YP)

$3.99

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031626

5/16 Knob Nuts (not shown)

$

$

Currently unavailable

--

3031997

5/16 Star Washer (not shown)

$

$

Not available

--

Giant-Vac 3031613

Grease Fitting .250 (Not shown)

$

$

Currently unavailable
