TLD49251JD (3800013) - Giant-Vac Trailer Mount Truck Loader Vacuum, 49hp Intake Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 49hp

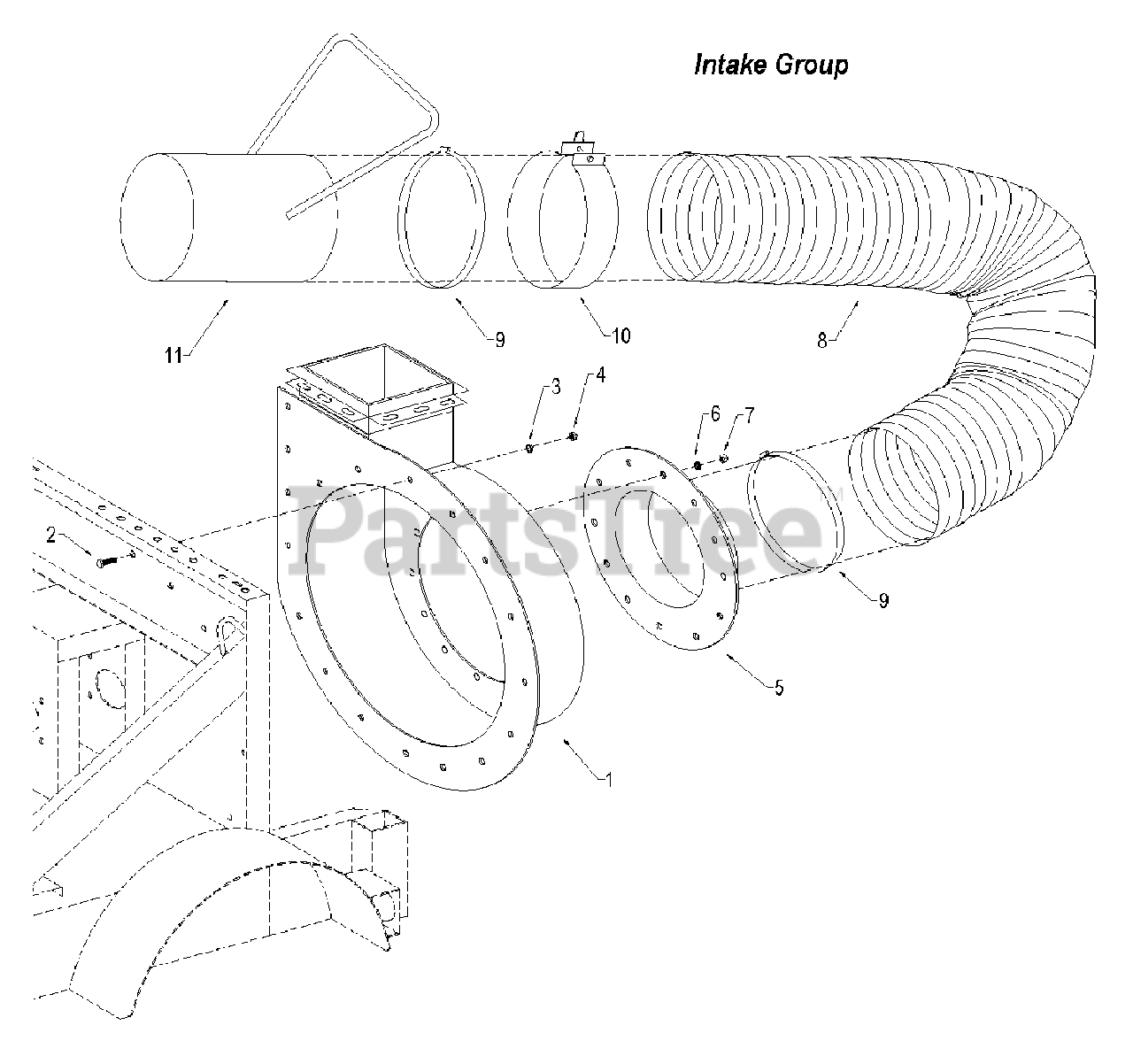

Intake Group Parts Diagram

  • Title

1

Giant-Vac 3010220

Housing, impeller – complete with liner kit below

$

$

Not available

Giant-Vac 3070832

Liner, 2-pc replaceable wear – with hardware (specify Model 4201)(Not shown)

$

$

Currently unavailable

2

Giant-Vac 3031033

Bolt, hex - 3/8-16 x 1"
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

3

Giant-Vac 3031008

Washer, lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Giant-Vac 3031009

Nut, hex - 3/8-16
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

5

Giant-Vac 3034058

Flange, intake, 16 90 degree

$

$

Not available

6

Giant-Vac 3031078

Washer, lock - 1/2

$

$

Currently unavailable

7

Giant-Vac 3031022

Nut, hex - 1/2-13

$

$

Currently unavailable

8

Giant-Vac 3034022

Hose, intake - 16" x 7'

$

$

Currently unavailable

9

Giant-Vac 3034024

Clamp, hose - 16"

$

$

Currently unavailable

10

Giant-Vac 3040111

Band, hose support – 16 – with hardware *

$

$

Currently unavailable

Giant-Vac 3031141

* Bolt, hex – 5/16-18 x 3-1/2 (support band hardware)

$

$

Not available

Giant-Vac 3031004

* Nut, hex - 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Giant-Vac 3020157

Nozzle, intake - 16"

$

$

Currently unavailable
