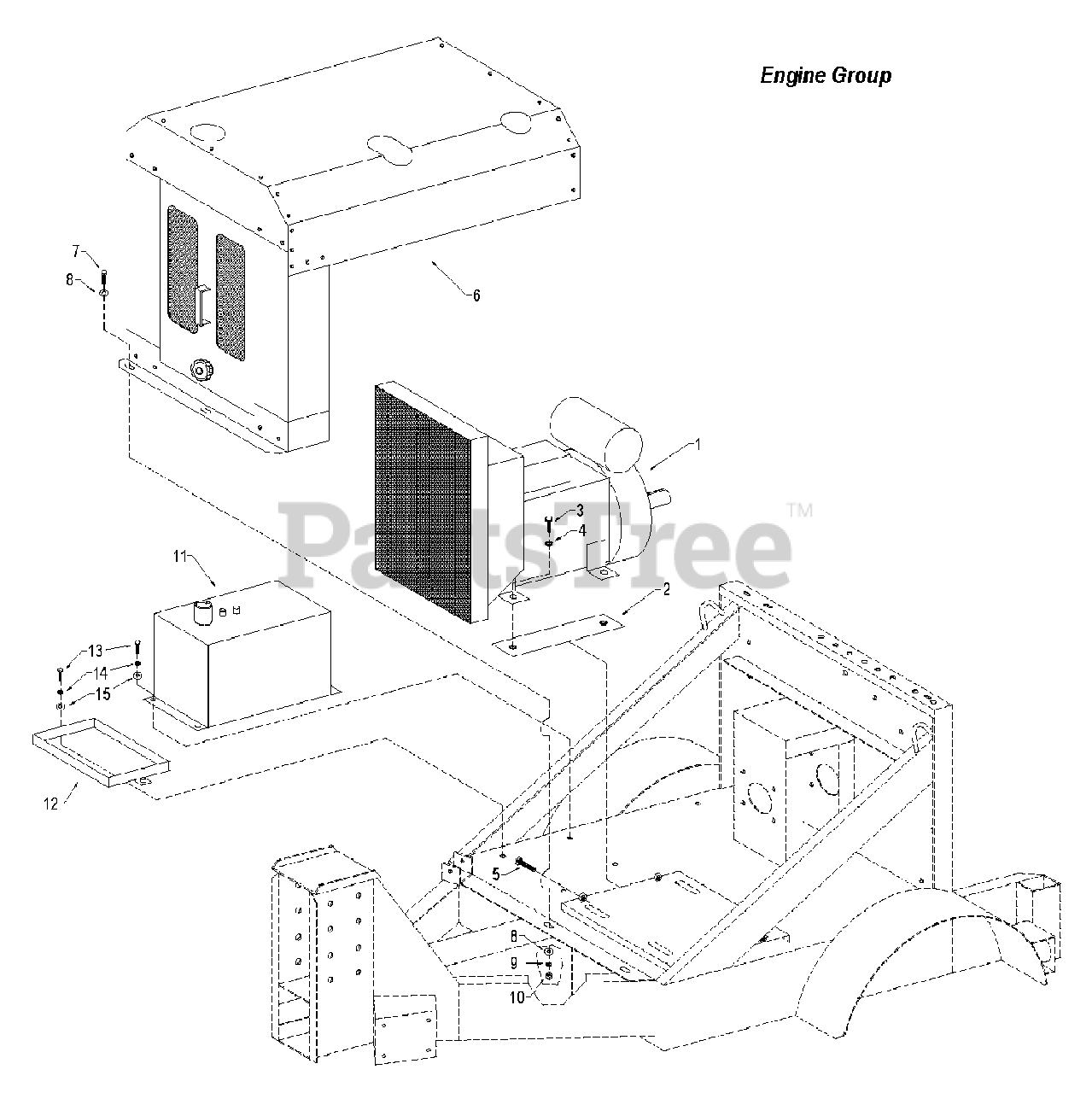

TLD49251JD (3800013) - Giant-Vac Trailer Mount Truck Loader Vacuum, 49hp Engine Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 49hp

Engine Group Parts Diagram

  • Title

1

--

* Engine – 49hp John Deere Diesel

$

$

Not available

Giant-Vac 3032037

Hose, oil drain extension (Not shown)

$

$

Currently unavailable

Giant-Vac 3031761

Plug, drain – 1/4 ipt – caps end of oil drain extension hose (Not shown)

$

$

Currently unavailable

Giant-Vac 3027398

Box, control panel mounting (Not shown)

$

$

Currently unavailable

Giant-Vac 3027435

Bracket, mounting – control panel side (Not shown)

$

$

Currently unavailable

Giant-Vac 3027434

Bracket, mounting – machine side (Not shown)

$

$

Currently unavailable

Giant-Vac 3031033

Bolt, hex - 3/8-16 x 1" – bolts box to mounting brackets (Not shown)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

Giant-Vac 3031008

Washer, lock - 3/8 (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

Giant-Vac 3031009

Nut, hex - 3/8-16 (Not shown)
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

2

Giant-Vac 3027397

Engine mount nut plate

$

$

Currently unavailable

3

Giant-Vac 3031147

Bolt, hex - 1/2-13 x 1-1/2"

$

$

Currently unavailable

4

Giant-Vac 3031078

Washer, lock - 1/2"

$

$

Currently unavailable

5

Giant-Vac 3031880

Bolt, Engine adjustment

$

$

Currently unavailable

6

Giant-Vac 3039100

Engine shroud - complete

$

$

Currently unavailable

7

Giant-Vac 3031033

Bolt, hex - 3/8-16 x 1"
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

8

Giant-Vac 3031034

Washer, flat – 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Giant-Vac 3031008

Washer, lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Giant-Vac 3031009

Nut, hex - 3/8-16
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

Giant-Vac 3031031

Bolt, hex head – 5/16-18 x 3/4 – mounts shroud rear to frame (Not shown)

$

$

Not available

Giant-Vac 3031027

Washer, flat – 5/16 (Not shown)
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

Giant-Vac 3031003

Washer, lock – 5/16 (Not shown)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

Giant-Vac 3031004

Nut, hex – 5/16 (Not shown)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Giant-Vac 3040140

Tank, fuel

$

$

Currently unavailable

Giant-Vac 3040114

Cap, fuel (Not shown)

$

$

Currently unavailable

Giant-Vac 3031830

Plug, drain - 3/8" IPT (Not shown)

$

$

Currently unavailable

Giant-Vac 3031828

Fitting - 1/4 IPT to 1/4 Farrell (Not shown)

$

$

Currently unavailable

Giant-Vac 3031829

Fitting - 3/8 IPT to 5/16 Farrell (Not shown)

$

$

Not available

Giant-Vac 3031753

Line, copper fuel - 1/4" - 6" (Not shown)

$

$

Currently unavailable

3031754

Line, copper fuel - 5/16" - 14" (Not shown)

$

$

Not available

Giant-Vac 3031755

Hose, rubber fuel - 1/4" - 42" (Not shown)

$

$

Not available

3031756

Hose, rubber fuel - 5/16" - 6" (Not shown)

$

$

Not available

3031756

Hose, rubber fuel - 5/16" - 12" (Not shown)

$

$

Not available

Giant-Vac 3034041

Clamp, hose - 1/2" (Not shown)

$

$

Currently unavailable

12

Giant-Vac 3040141

Box, battery mounting

$

$

Not available

Giant-Vac 3039021

Battery (Not shown)

$

$

Currently unavailable

Giant-Vac 3039101

Battery case (Not shown)

$

$

Currently unavailable

Giant-Vac 3031826

Battery cable - positive - 48S (Not shown)

$

$

Currently unavailable

3031763

Battery cable - ground - 16S (Not shown)

$

$

Not available

Giant-Vac 3031838

Cover, battery terminal – red (Not shown)

$

$

Currently unavailable

Giant-Vac 3031839

Cover, battery terminal - black (Not shown)

$

$

Currently unavailable

13

Giant-Vac 3031097

Bolt, hex - 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

14

Giant-Vac 3031008

Washer, lock - 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

15

Giant-Vac 3031034

Washer, flat - 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
