TLBR3510252BVG (3800026) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Leaf Box Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

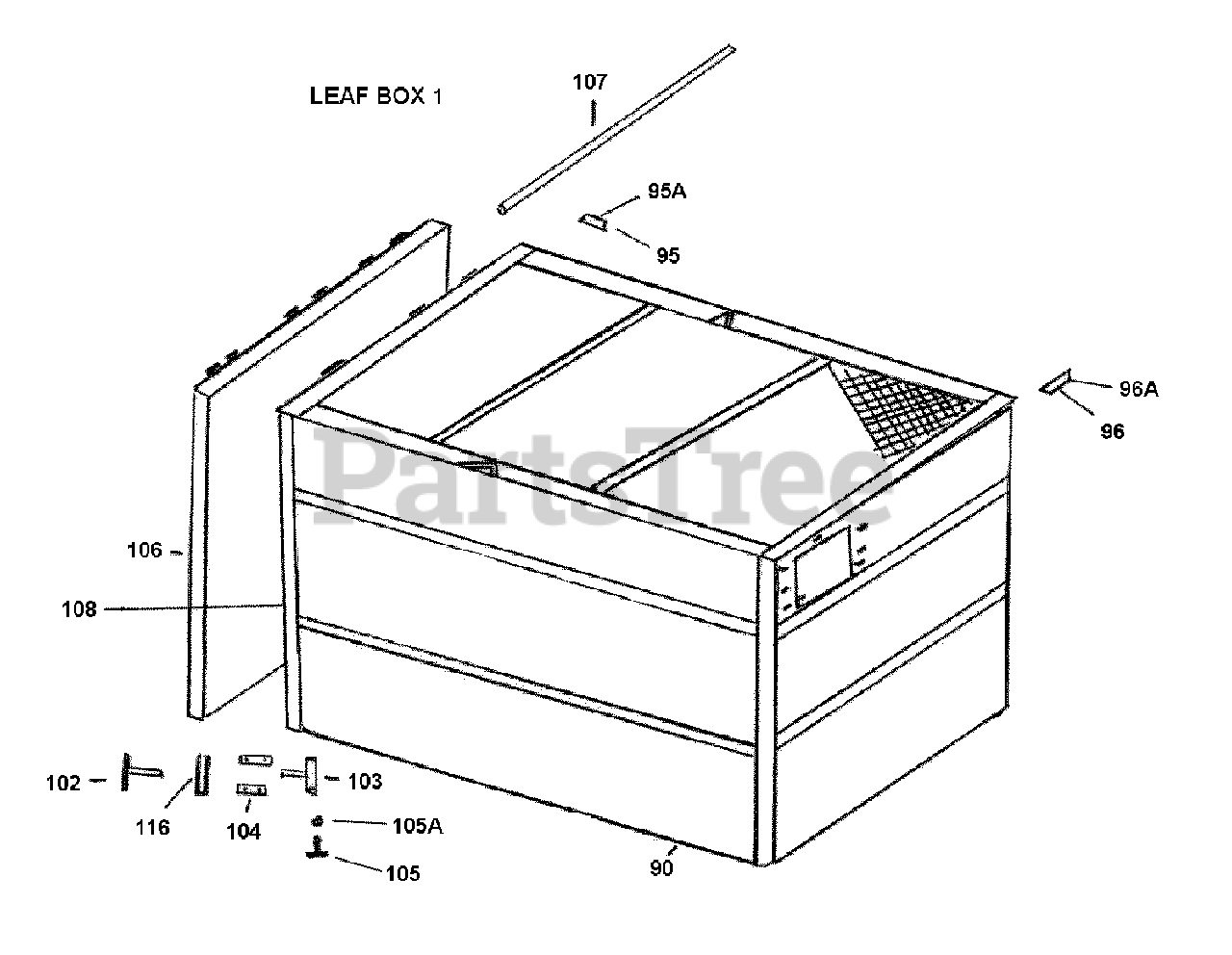

Leaf Box Parts Diagram

  • Title
90

3027379

Leaf Box - 10-Cubic Yard

$

$

Not available

95

Giant-Vac 3031499

Running Light Assembly (cat's eye) - Red

$

$

Currently unavailable

95A

Giant-Vac 3031501

Replacement Lens - Red

$

$

Currently unavailable

96

Giant-Vac 3031500

Running Light Assembly (cat's eye) - Amber

$

$

Currently unavailable

96A

Giant-Vac 3031502

Replacement Lens - Amber

$

$

Currently unavailable

102

Giant-Vac 3031625

5/8-11 Handle Nut

$

$

Currently unavailable

102A

3031489

5/8 Flat Washer (not shown)

$

$

Not available

103

Giant-Vac 3031504

Door Lock Pivot T-Bolt

$

$

Not available

104

Giant-Vac 3027195

Door Lock Side Piece

$

$

Currently unavailable

105

3031335

1/2-13 x 4 Hex Bolt

$

$

Not available

105

Giant-Vac 3031021

1/2-13 x 4-1/2 Hex Bolt

$

$

Not available

105A

Giant-Vac 3031406

1/2-13 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

106

3027380

Back Door

$

$

Not available

107

Giant-Vac 3023160

Back Door Rod

$

$

Not available

108

Giant-Vac 3031506

Door Gasket

$

$

Currently unavailable

116

Giant-Vac 3027200

Door Latch Holder

$

$

Currently unavailable

--

Giant-Vac 3031842

Wiring Harness - Trailer (Brakes, License, Taillights)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031845

Wiring Harness - Top Screen (Running Lights)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031751

License Light Assembly

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031752

License Plate Mounting Bracket

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031030

1/4-20 Hex Nut (License Light/Bracket Mounting)

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031013

1/4 Lock Washer
(Superseded to 7027223SM)

Note: not shown

$3.99

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031757

Bolt-On Wiring Harness Clip

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031013

1/4 Lock Washer
(Superseded to 7027223SM)

Note: not shown

$3.99

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031030

1/4-20 Hex Nut

Note: not shown

$

$

Currently unavailable

--

Giant-Vac 3031849

Plastic Cable Tie 28in

Note: not shown

$

$

Currently unavailable
