TLBR3510252BVG (3800026) - Giant-Vac 10-Yard Hydraulic Dump Self-Contained Loader, 35hp Hose Support Boom Parts Diagram

10-Yard Hydraulic Dump Self-Contained Loader, 35hp

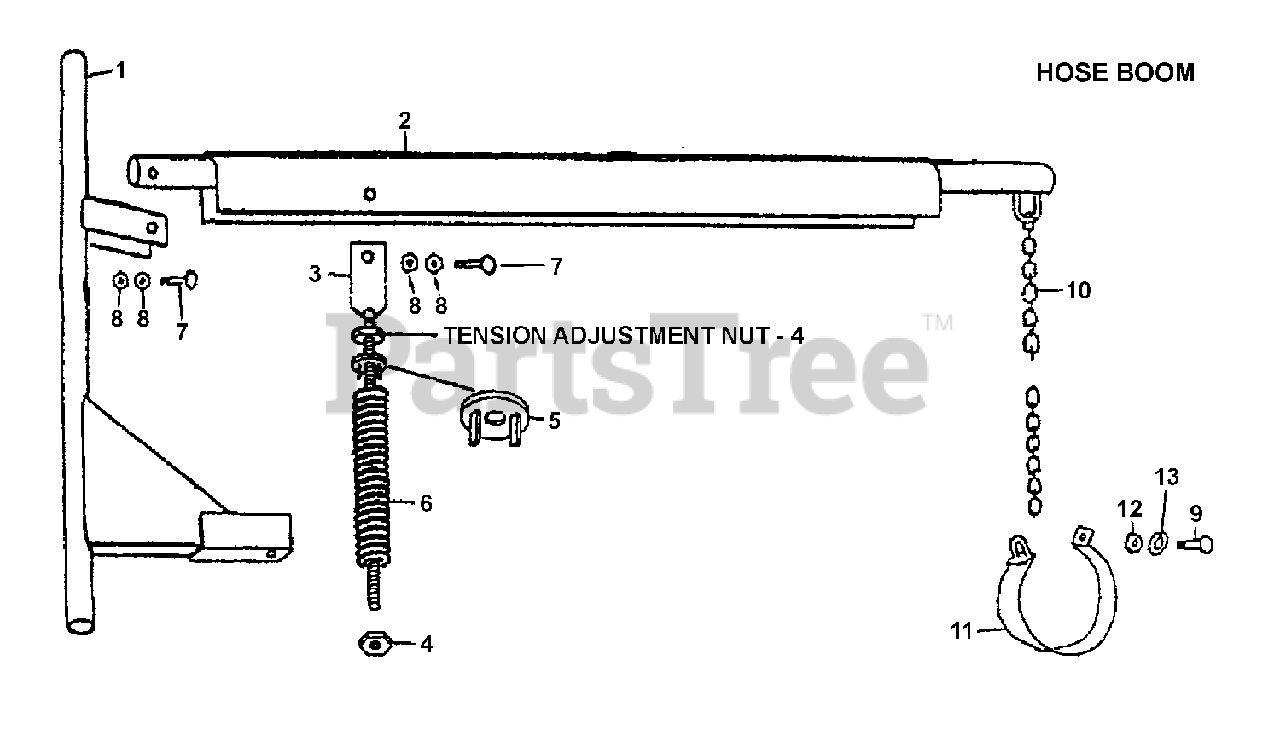

Hose Support Boom Parts Diagram

  • Title
1

Giant-Vac 3040107

Boom Vertical Member

$

$

Currently unavailable

2

Giant-Vac 3040106

Boom Horizontal Member

$

$

Not available

3

Giant-Vac 3040108

Threaded Spring Guide

$

$

Currently unavailable

4

3031110

3/4 Nut

$

$

Not available

5

Giant-Vac 3031023

3/4 Flat Washer

$

$

Not available

6

Giant-Vac 3031332

Boom Coil Spring

$

$

Currently unavailable

7

Giant-Vac 3031025

1/2 x 3 Hex Bolt
(Superseded to 7090652YP)

$2.49

$

Usually ships in 2-12 days

0

8

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

9

Giant-Vac 3031141

5/16 x 3-1/2 Hex Bolt

$

$

Not available

10

Giant-Vac 3031140

Boom Chain

$

$

Currently unavailable

11

Giant-Vac 3040110

Hose Support Band 12in

$

$

Currently unavailable

11

Giant-Vac 3040111

Hose Support Band 16in

$

$

Currently unavailable

12

Giant-Vac 3031004

5/16 Hex Nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Giant-Vac 7091098

5/16 Washer
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
