TLBC20201KH (3800006) - Giant-Vac Trailer Mount Truck Loader Vacuum Chipper, 20hp Trailer Group Parts Diagram

Trailer Mount Truck Loader Vacuum Chipper, 20hp

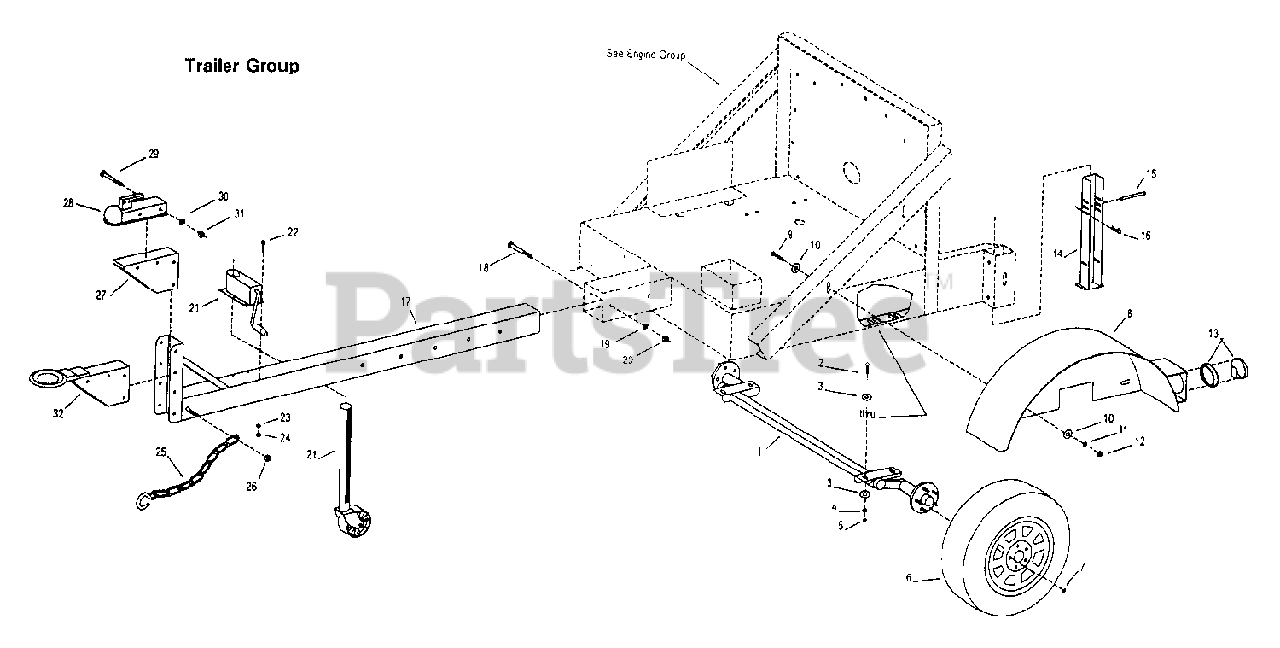

Trailer Group Parts Diagram

  • Title

1

Giant-Vac 3033232

Torflex Axle

$

$

Currently unavailable

2

3032154

1/2-13 x 1-1/4" Hex Bolt

$

$

Not available

3

3032155

1/2 Flat Washer

$

$

Not available

4

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

5

Giant-Vac 3032156

1/2-13 Hex End Lock Nut
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

6

Giant-Vac 3033126

F78 x 15 Tire and Wheel Assembly

$

$

Not available

7

Giant-Vac 3031152

1/2-20 Lug Nut

$

$

Currently unavailable

8

Giant-Vac 3033303

Fender - Left Side

$

$

Not available

8

Giant-Vac 3033302

Fender - right Side (Not Shown)

$

$

Currently unavailable

9

Giant-Vac 3031033

3/8-16 x 1" Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Giant-Vac 3031034

3/8 Flat Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

13

Giant-Vac 3031639

Tail Lamp (w/Rubber Mounting Ring)

$

$

Currently unavailable

--

Giant-Vac 3031640

Tail Lamp Wiring Harness

$

$

Currently unavailable

--

Giant-Vac 3031644

Wiring Harness Bold Clip - Large

$

$

Not available

--

Giant-Vac 3031823

Wiring Harness Bold Clip - Small

$

$

Not available

--

Giant-Vac 3032090

#10 x 1/2" Self-Tapping Screw (Fastens Grounds)

$

$

Currently unavailable

14

Giant-Vac 3040126

Support Leg

$

$

Currently unavailable

15

Giant-Vac 3031125

3/8 x 4" Clevis Pin

$

$

Not available

16

Giant-Vac 3031126

Bridge Pin

$

$

Not available

17

3038044

Draw Bar - Swing Jack Style

$

$

Not available

18

3031017

5/8 x 4-1/2" Hex Bolt

$

$

Not available

19

Giant-Vac 3031326

5/8 Split Lock Washer

$

$

Not available

20

3031199

5/8 Lock Nut

$

$

Not available

21

Giant-Vac 3033176

Jack, Trailer Support Swing Away Style

$

$

Currently unavailable

--

Giant-Vac 3031033

3/8-16 x 1" Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

--

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

--

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

22

Giant-Vac 3031495

3/8-16 x 5" Hex Bolt

$

$

Currently unavailable

23

Giant-Vac 3031108

3/8 Split Lock Washer

$

$

Currently unavailable

24

Giant-Vac 3031126

Bridge Pin

$

$

Not available

25

Giant-Vac 3031641

Chain, Safety w/1 S-Hook

$

$

Currently unavailable

26

3031047

1/2-13 x 5" Hex Bolt

$

$

Not available

27

Giant-Vac 3038014

Ball Hitch Mount, Black

$

$

Currently unavailable

28

Giant-Vac 3038011

Ball Hitch

$

$

Not available

29

Giant-Vac 3031467

1/2-13 x 3-1/2" Hex Bolt

$

$

Currently unavailable

30

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

31

Giant-Vac 3031406

1/2 Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

32

Giant-Vac 3038012

Pintle Ring (Optional)

$

$

Not available

36

3031671

Chain, Nozzle Retainer 1/2 x 12" (Not shown)

$

$

Not available

37

Giant-Vac 3031495

3/8-16 x 5" Hex Bolt (Not shown)

$

$

Currently unavailable
