TLBC20201KH (3800006) - Giant-Vac Trailer Mount Truck Loader Vacuum Chipper, 20hp Intake Group Parts Diagram

Trailer Mount Truck Loader Vacuum Chipper, 20hp

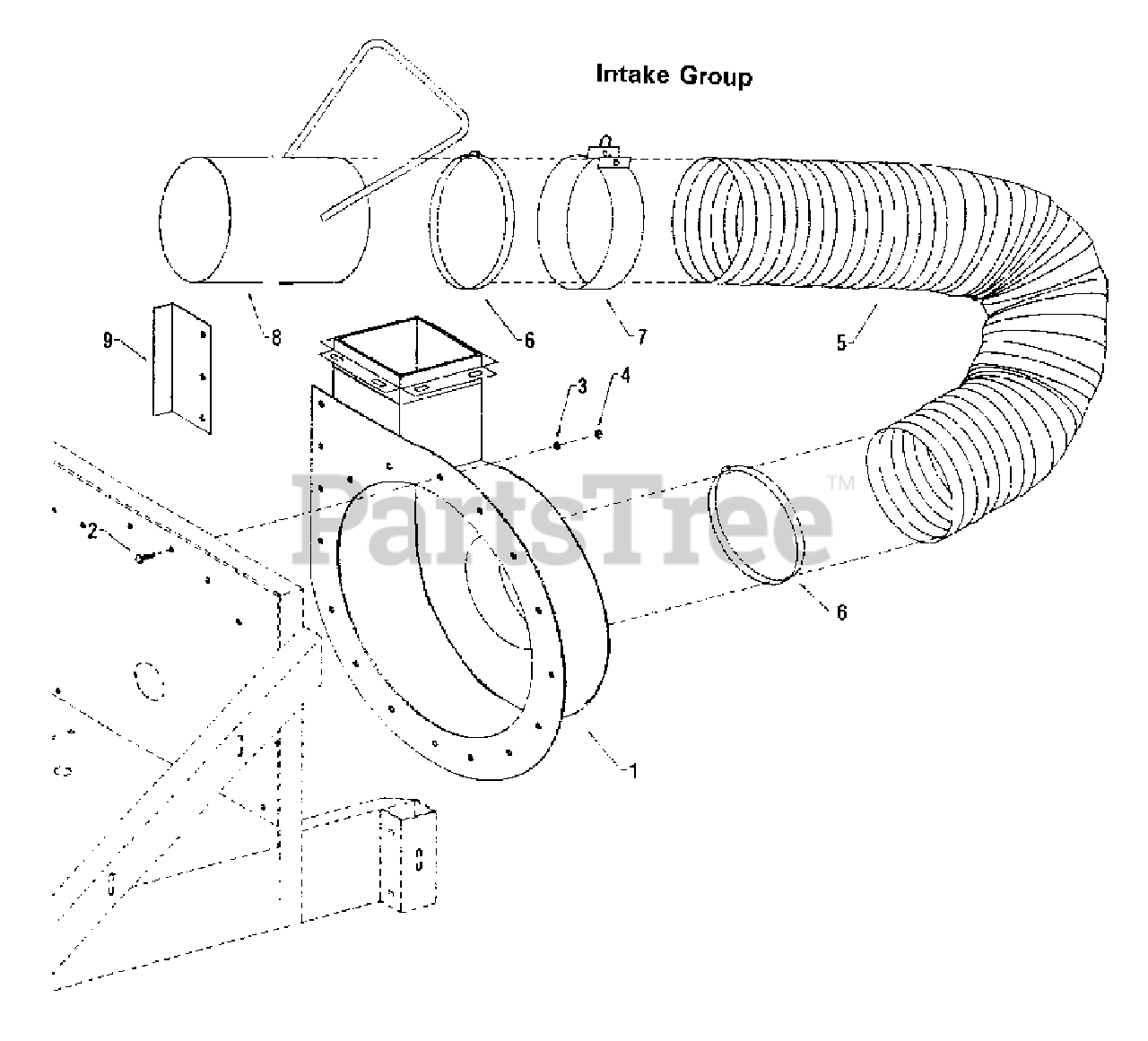

Intake Group Parts Diagram

  • Title

1

Giant-Vac 3010239

Housing, Impeller - Complete with Liner Kit Below

$

$

Currently unavailable

--

Giant-Vac 3070865

Liner, 2-pc Replaceable Wear - with Hardware

$

$

Not available

2

Giant-Vac 3031033

3/8-16 x 1" Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

3

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Giant-Vac 3031009

3/8-16 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

5

Giant-Vac 3034019

Hose, Intake 12" x 10'

$

$

Currently unavailable

6

Giant-Vac 3034020

Clamp, Hose 12"

$

$

Currently unavailable

7

Giant-Vac 3040110

Band, Hose Support 12" with Hardware

$

$

Currently unavailable

--

Giant-Vac 3031141

5/16-18 x 3-1/2" Hex Bolt (Support Band Hardware)

$

$

Not available

--

Giant-Vac 3031004

5/16-18 Hex Nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Giant-Vac 3020165

Nozzle, Intake 12" w/Adjustable Handle

$

$

Not available

--

3020168

Handle, Adjustable with Foam Grip

$

$

Not available

9

Giant-Vac 3027268

Plate, Hose Protector (CHW Units Only)

$

$

Currently unavailable
