TLBC20201KH (3800006) - Giant-Vac Trailer Mount Truck Loader Vacuum Chipper, 20hp Engine Group Parts Diagram

Trailer Mount Truck Loader Vacuum Chipper, 20hp

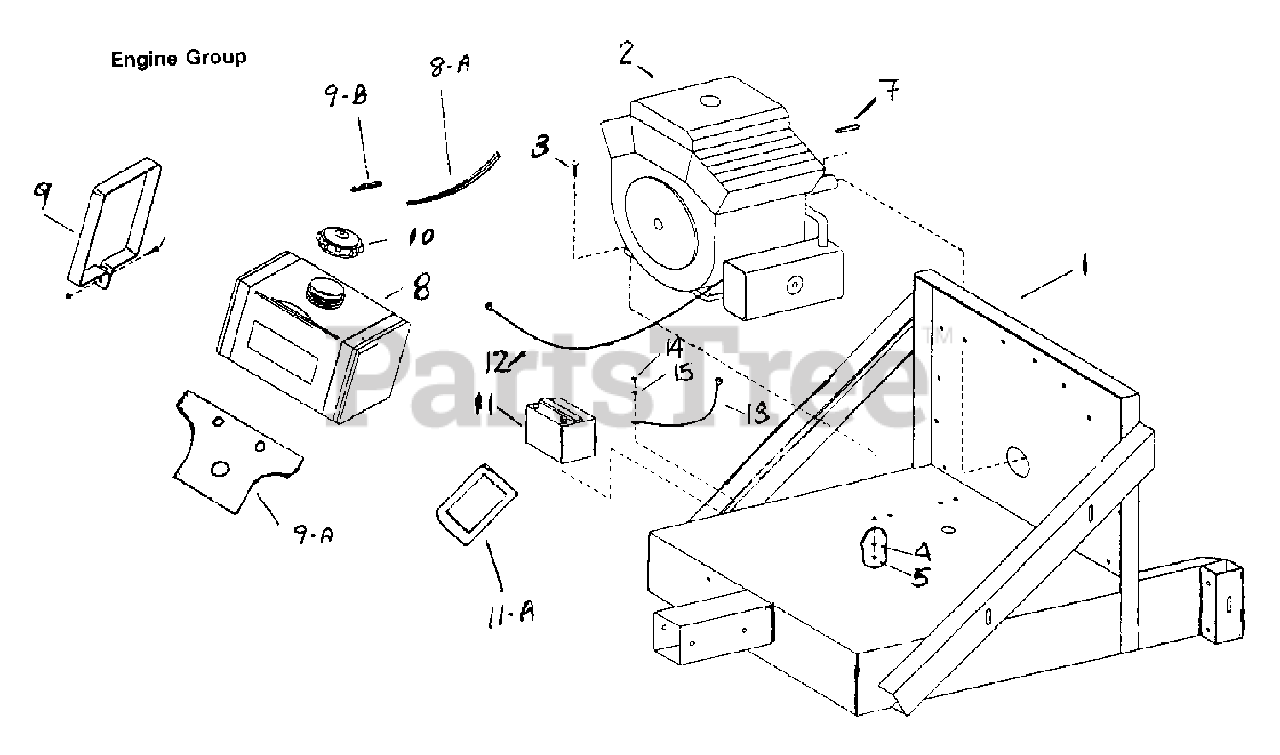

Engine Group Parts Diagram

  • Title

1

3010196

Engine Base

$

$

Not available

2

3039069

* 20HP Kohler Command Engine

$

$

Not available

--

3039159

Muffler Guard (Not shown)

$

$

Not available

--

3039158

Top Mount Muffler (Not shown)

$

$

Not available

3

Giant-Vac 3031747

3/8 x 2" Hex Bolt (Motor Mount Bolt)

$

$

Currently unavailable

3

Giant-Vac 3031595

3/8 x 1-3/4" Hex Bolt (Motor Mount Bolt)
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

4

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Giant-Vac 3031009

3/8 Hex Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

7

Giant-Vac 3031447

5/8-18 x 2" Impeller Bolt & Key Group

$

$

Currently unavailable

8

3040117

Fuel Tank, 6 Gal.

$

$

Not available

8A

Giant-Vac 3031755

Hose, Rubber Fuel 1/4" x 10" Length

$

$

Not available

--

Giant-Vac 3034041

Clamp, Hose 1/4" Worm Drive

$

$

Currently unavailable

9

3031157

Fuel Tank Strap

$

$

Not available

9A

3031158

Gas Tank Mount

$

$

Not available

9B

3031445

Inline Fuel Shutoff Valve

$

$

Not available

10

Fuel Tank Cap (Part of #8)

$

$

Not available

11

Giant-Vac 3039020

Battery

$

$

Currently unavailable

11A

Giant-Vac 3040118

Battery Box

$

$

Currently unavailable

12

Giant-Vac 3031642

Battery Cable - 32SS (Positive)

$

$

Currently unavailable

--

Giant-Vac 3031836

Battery Terminal Cover - Red (Not shown)

$

$

Currently unavailable

13

Giant-Vac 3031643

Battery Cable - 16SS (Ground)

$

$

Currently unavailable

--

Giant-Vac 3031837

Battery Terminal Cover - Black (Not shown)

$

$

Currently unavailable

14

Giant-Vac 3031009

3/8 Hex Nut (secures ground cable to engine base)
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

15

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0
