TLB35252BVG (3800023) - Giant-Vac Trailer Mount Truck Loader Vacuum, 35hp Trailer Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 35hp

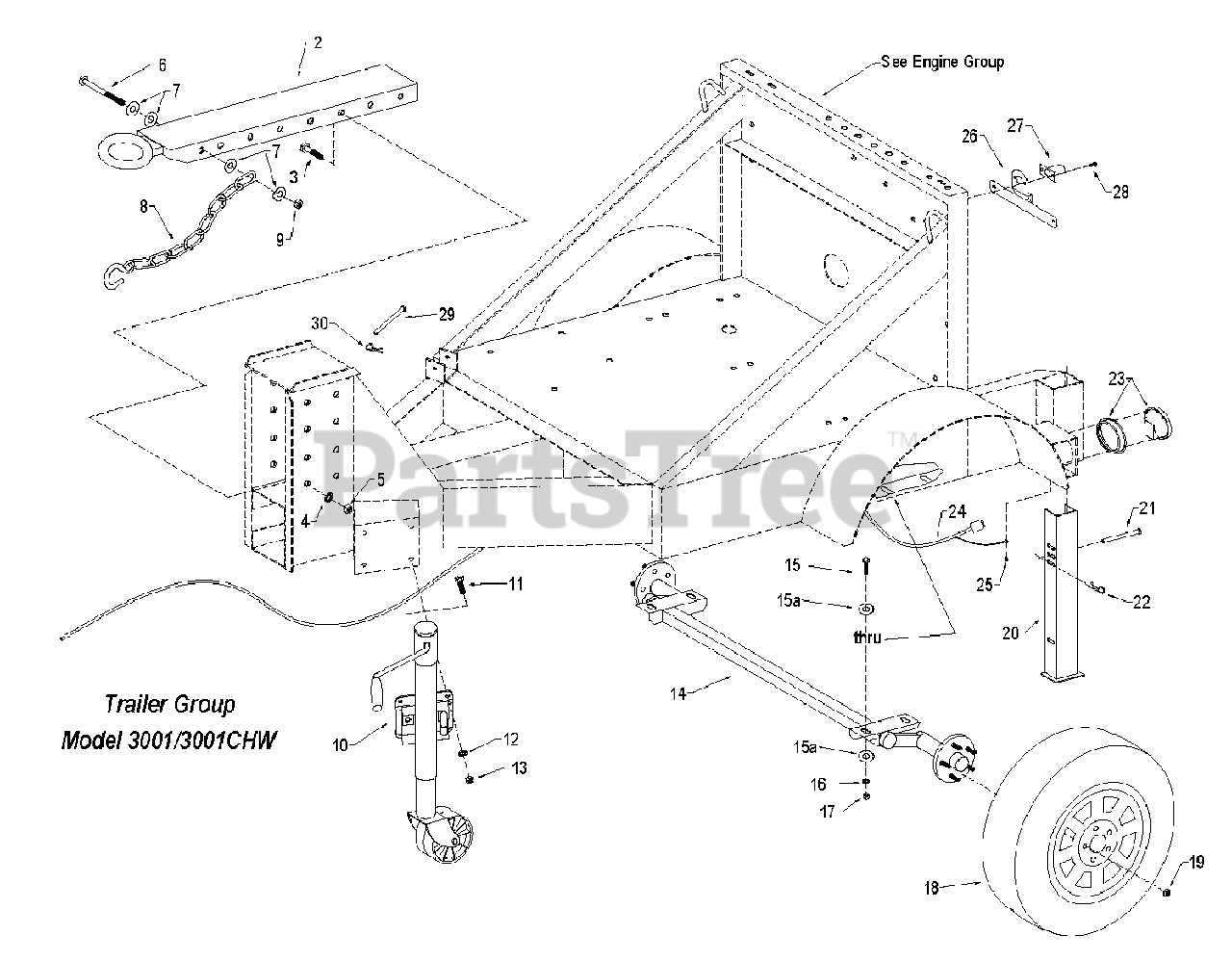

Trailer Group Parts Diagram

  • Title
1

Loader Base and Trailer Frame (See Engine Group)

$

$

Not available

2

$

$

Currently unavailable

3

Giant-Vac 3031084

1/2-13 x 1-1/4 Hex Bolt

$

$

Not available

4

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

5

Giant-Vac 3031406

1/2-13 Reverse Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

6

Giant-Vac 3031821

1/2-13 x 7 Hex Bolt

$

$

Not available

7

Giant-Vac 3031043

1/2 Flat Washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

8

Giant-Vac 3031641

Safety Chain

$

$

Currently unavailable

9

Giant-Vac 3031406

1/2-13 Reverse Lock Nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

10

Giant-Vac 3033173

Dual Wheel Jack

$

$

Currently unavailable

11

Giant-Vac 3031033

3/8-16 x 1 Hex Bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

12

Giant-Vac 3031008

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Giant-Vac 3031009

3/8-16 Lock Nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

14

Giant-Vac 3033297

Torflex Axle

$

$

Currently unavailable

15

3032154

1/2-13 x 1-1/4 Hex Bolt

$

$

Not available

15a

3032155

1/2 Flat Washer

$

$

Not available

16

Giant-Vac 3031078

1/2 Lock Washer

$

$

Currently unavailable

17

Giant-Vac 3032156

1/2-13 Hex End Lock Nut
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

18

Giant-Vac 3033051

Tire & Wheel Assembly

Note: was 3033126

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Giant-Vac 3040105

Support Leg

$

$

Currently unavailable

21

Giant-Vac 3031125

3/8 x 4-1/2 Clevis Pin

$

$

Not available

22

Giant-Vac 3031126

Bridge Pin

$

$

Not available

23

Giant-Vac 3031639

Stop & Tail Light Assembly

$

$

Currently unavailable

24

Giant-Vac 3031822

Wiring Harness

$

$

Currently unavailable

--

Giant-Vac 3031644

Large Wiring Harness Slip-On Clip

$

$

Not available

--

Giant-Vac 3032012

3/8 Wiring Harness Bolt-On Clip

$

$

Currently unavailable

--

Giant-Vac 3031562

#12 x 3/4 Self-Taping Screw (Secures Bolt-On Clips to Frame)
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

25

Giant-Vac 3032090

#10 x 1/2 Self-Taping Screw (Tail Light Ground)

$

$

Currently unavailable

26

Giant-Vac 3031752

License Bracket

$

$

Currently unavailable

27

Giant-Vac 3031751

License Light

$

$

Currently unavailable

28

Giant-Vac 3031444

1/4-20 x 1 Hex Bolt (Bolts License Light Assembly to Frame)

$

$

Not available

--

Giant-Vac 3031013

1/4 Lock Washer
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

--

Giant-Vac 3031030

1/4-20 Hex Nut

$

$

Currently unavailable

29

Giant-Vac 3031125

3/8 x 4-1/2 Clevis Pin

$

$

Not available

30

Giant-Vac 3031126

Bridge Pin

$

$

Not available
