TLB25-49KBD - Scag Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel (SN: R2600001 - R2699999) IMPELLER HOUSING AND TRAILER ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel

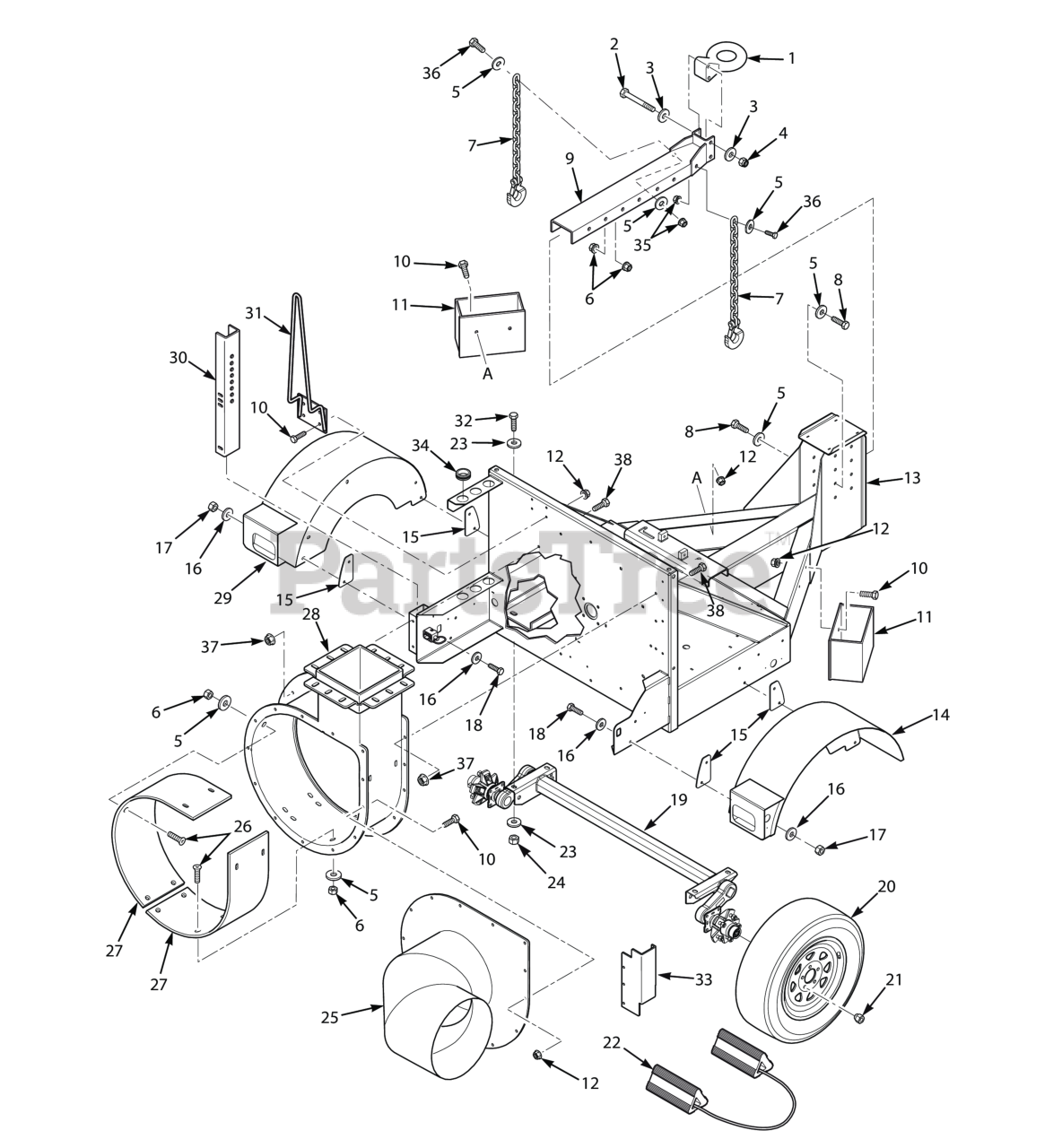

IMPELLER HOUSING AND TRAILER ASSEMBLY Parts Diagram

  • Title

1

Scag 485105

Pintle Ring, 3" (optional)

$142.99

$

Usually ships in 2-12 days

0

Scag 485104

Ball Coupler, 2-5/16"

$211.99

$

Usually ships in 2-12 days

0

2

Scag 04001-204

Bolt, Hex Head 5/8-11 x 4-3/4" Grade 8

$9.99

$

Usually ships in 2-12 days

0

3

Scag 04043-09

FW, 5/8 -.656X1.312X.095 HD

$0.99

$

Usually ships in 2-12 days

0

4

Scag 04021-23

Nut, Center Lock 5/8-11

$1.49

$

In Stock, Qty 5

0

5

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

7

Scag 485064

Safety Chain

$68.99

$

Usually ships in 2-12 days

0

8

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

9

Scag 462690

Draw Bar w/Decal

$627.99

$

Usually ships in 2-12 days

0

10

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

11

Scag 452519

Chock Box

$80.99

$

Usually ships in 2-12 days

0

12

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

13

Scag 463251

Base and Frame w/Decal

$5013.99

$

Usually ships in 2-12 days

0

14

Scag 452545

Fender Weldment, RH

$211.99

$

Usually ships in 2-12 days

0

15

Scag 426421

Spacer, Fender

$14.99

$

Usually ships in 2-12 days

0

16

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

17

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

18

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

19

Scag 485081

Axle, 3500 LBS. (incl. #18)

$1675.99

$

Usually ships in 2-12 days

0

20

Scag 484948

Wheel Assembly, 205/75D15 - 6 Ply

$407.99

$

Usually ships in 2-12 days

0

Scag 485091

Rim, 15 x 5 - 5 Lug

$145.99

$

Usually ships in 2-12 days

0

Scag 485092

Tire, 205/75D15 - 6 Ply

$286.99

$

Usually ships in 2-12 days

0

21

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

22

Scag 485103

Wheel Chocks w/Rope

$169.99

$

Usually ships in 2-12 days

0

23

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

24

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 20+

0

25

Scag 452492

Intake Elbow, TLB25

$844.99

$

Usually ships in 2-12 days

0

26

Scag 04014-05

Capscrew, 1/2-13 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

27

Scag 462579

Wear Liner Kit w/Hardware, TLB25 (incl. #5, 6, 26)

$572.99

$

Usually ships in 2-12 days

0

28

Scag 462709

Impeller Housing Assembly- TLB25 (incl. # 6, 7, 8, 9, 12)

$861.99

$

Usually ships in 2-12 days

0

29

Scag 452544

Fender Weldment, LH

$211.99

$

Usually ships in 2-12 days

0

30

Scag 426208

Support Channel

$114.99

$

Usually ships in 2-12 days

0

31

Scag 485109

Holder, Traffic Cone

$118.99

$

Usually ships in 2-12 days

0

Scag 485079

Traffic Cone (not shown)

$69.99

$

Usually ships in 2-12 days

0

32

Scag 04001-131

Bolt, Hex Head, 5/8-11 x 1-3/4"

$2.49

$

Usually ships in 2-12 days

0

33

Scag 426209

Bracket, Hose Protector

$35.99

$

Usually ships in 2-12 days

0

34

Scag 485080

Grommet, Rubber

$2.99

$

Usually ships in 2-12 days

0

35

Scag 04113-04

LKNUT, M12-1.75 ELAS STOP

$1.49

$

Usually ships in 2-12 days

0

36

Scag 04002-30

HHCS, M12-1.75 X 40 LG

$1.49

$

Usually ships in 2-12 days

0

37

Scag 04019-05

HEX NUT, 7/16-14 SERRATED FLANGE

$0.99

$

In Stock, Qty 12

0

38

Scag 04017-53

Bolt, Hex Head 7/16-14 x 3/4"

$2.99

$

Usually ships in 2-12 days

0
