TLB25-49KBD - Scag Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel (SN: R2600001 - R2699999) IMPELLER DRIVE ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel

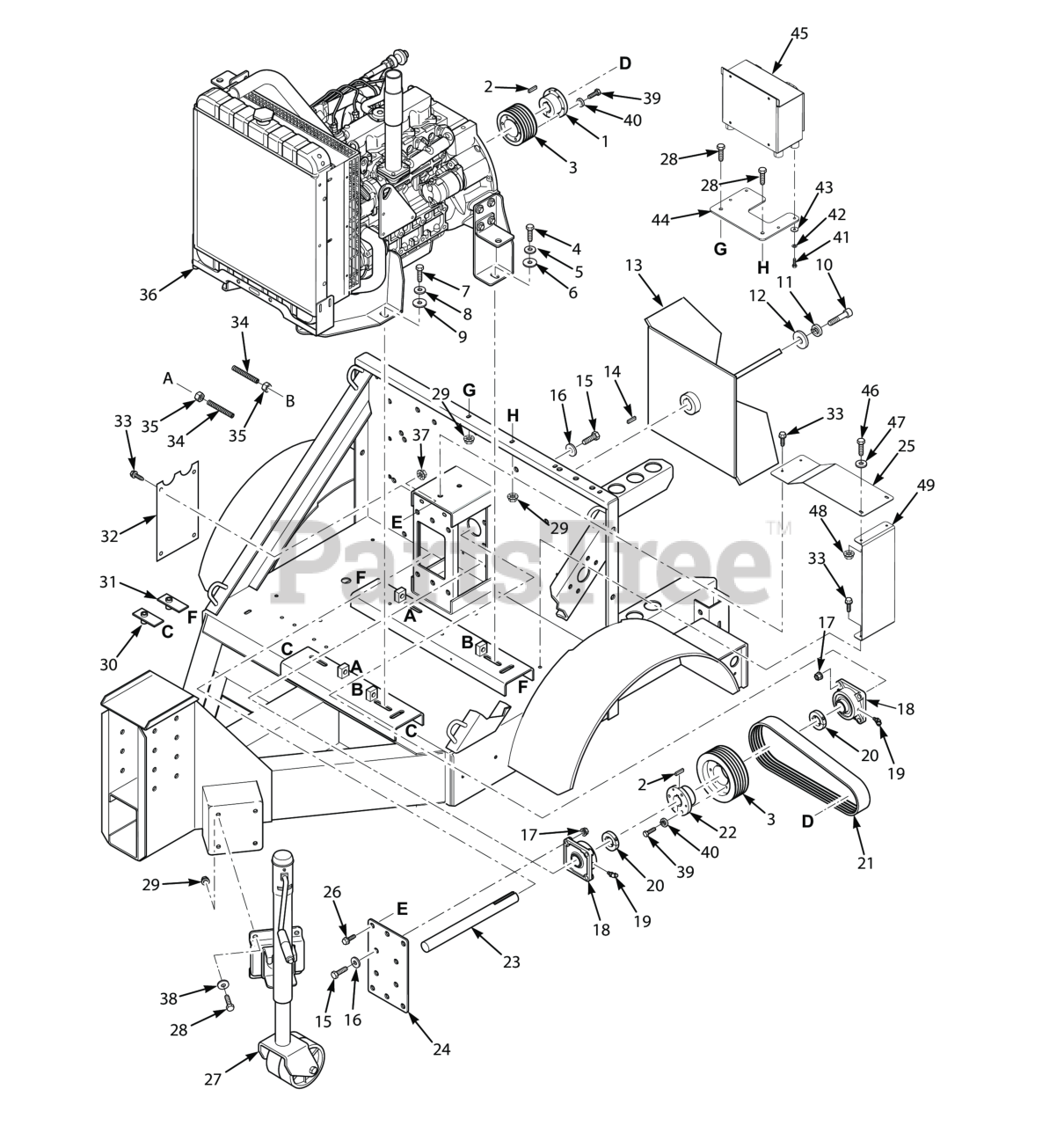

IMPELLER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Scag 484992

Bushing, Tapered Lock SK 1-1/2"

$69.99

$

Usually ships in 2-12 days

0

2

Scag 04063-34

Key, 3/8 x 3/8 x 2-1/4"

$2.49

$

Usually ships in 2-12 days

0

3

Scag 484991

Pulley, Sheave 3V6.5 x 5 SK

$214.99

$

Usually ships in 2-12 days

0

4

Scag 04001-131

Bolt, Hex Head, 5/8-11 x 1-3/4"

$2.49

$

Usually ships in 2-12 days

0

5

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

6

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

7

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

8

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

9

Scag 04043-08

Washer, Flat, 1/2-.562 x 1.375 x .109 HD

$1.49

$

In Stock, Qty 9

0

10

Scag 04015-23

SHCS, 5/8-18 x 2-1/2"

$4.99

$

Usually ships in 2-12 days

0

11

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

12

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

13

Scag 452445

Impeller, STL 4 Blade - 24-3/4" OD

$969.99

$

Usually ships in 2-12 days

0

14

Scag 04063-33

Key, 3/8 x 3/8 x 4-1/2"

$17.99

$

Usually ships in 2-12 days

0

15

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

16

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

18

Scag 484909

Bearing, Flange Mount

$249.99

$

Usually ships in 2-12 days

0

19

Scag 48114-07

Grease Fitting

$2.99

$

In Stock, only 1 left!

0

20

Scag 485096

Collar. 2 pc 1-7/16

$34.99

$

Usually ships in 2-12 days

0

21

Scag 485069

Belt, R3V x 425-5

$182.99

$

Usually ships in 2-12 days

0

22

Scag 484993

Bushing, Taper - SK 1-7/16" (incl. hardware)

$69.99

$

Usually ships in 2-12 days

0

23

Scag 43942

Shaft, Impeller

$128.99

$

Usually ships in 2-12 days

0

24

Scag 426424

Bearing Mount Plate

$28.99

$

Usually ships in 2-12 days

0

25

Scag 427997

Shield, Top

$38.99

$

Usually ships in 2-12 days

0

26

Scag 04017-36

Capscrew, 1/2-13 x 1" Serrated Flange Hex Head

$2.99

$

In Stock, only 2 left!

0

27

Scag 484848

Jack, Trailer 2-Wheel

$302.99

$

Usually ships in 2-12 days

0

28

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

29

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

30

Scag 452533

Nut Plate Weldment, 1/2-13

$62.99

$

Usually ships in 2-12 days

0

31

Scag 452532

Nut Plate Weldment, 5/8-11

$68.99

$

Usually ships in 2-12 days

0

32

Scag 426402

Belt Cover, RH Diesel

$19.99

$

Usually ships in 2-12 days

0

33

Scag 04011-12

Screw, Hex Head 5/16-18 x 3/4" Self Tap

$0.99

$

In Stock, only 1 left!

0

34

Scag 04012-13

SET SCREW, 1/2-13 X 4 HEX SOCK

$9.49

$

Usually ships in 2-12 days

0

35

Scag 04020-07

NUT, HEX #10-32

$0.99

$

In Stock, only 3 left!

0

36

Scag 486473

Engine, Kubota 49hp Diesel (not avail. thru Scag)

$

$

Currently unavailable

37

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

38

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-218

CAPSCREW, HEXHEAD 7/16-14 X 1.50

$1.99

$

Usually ships in 2-12 days

0

40

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

41

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

42

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

43

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

44

Scag 427999

Mounting Bracket, Control Box

$18.99

$

Usually ships in 2-12 days

0

45

Scag 486685

Control Panel

$1339.99

$

Usually ships in 2-12 days

0

46

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

47

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

48

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

49

Scag 427998

Shield, Side

$30.99

$

Usually ships in 2-12 days

0
