TLB25-49KBD - Scag Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel (SN: R2600001 - R2699999) FUEL AND ELECTRICAL SYSTEM Parts Diagram

Industrial Tow-Behind Truck Loader, 49hp Kubota Diesel

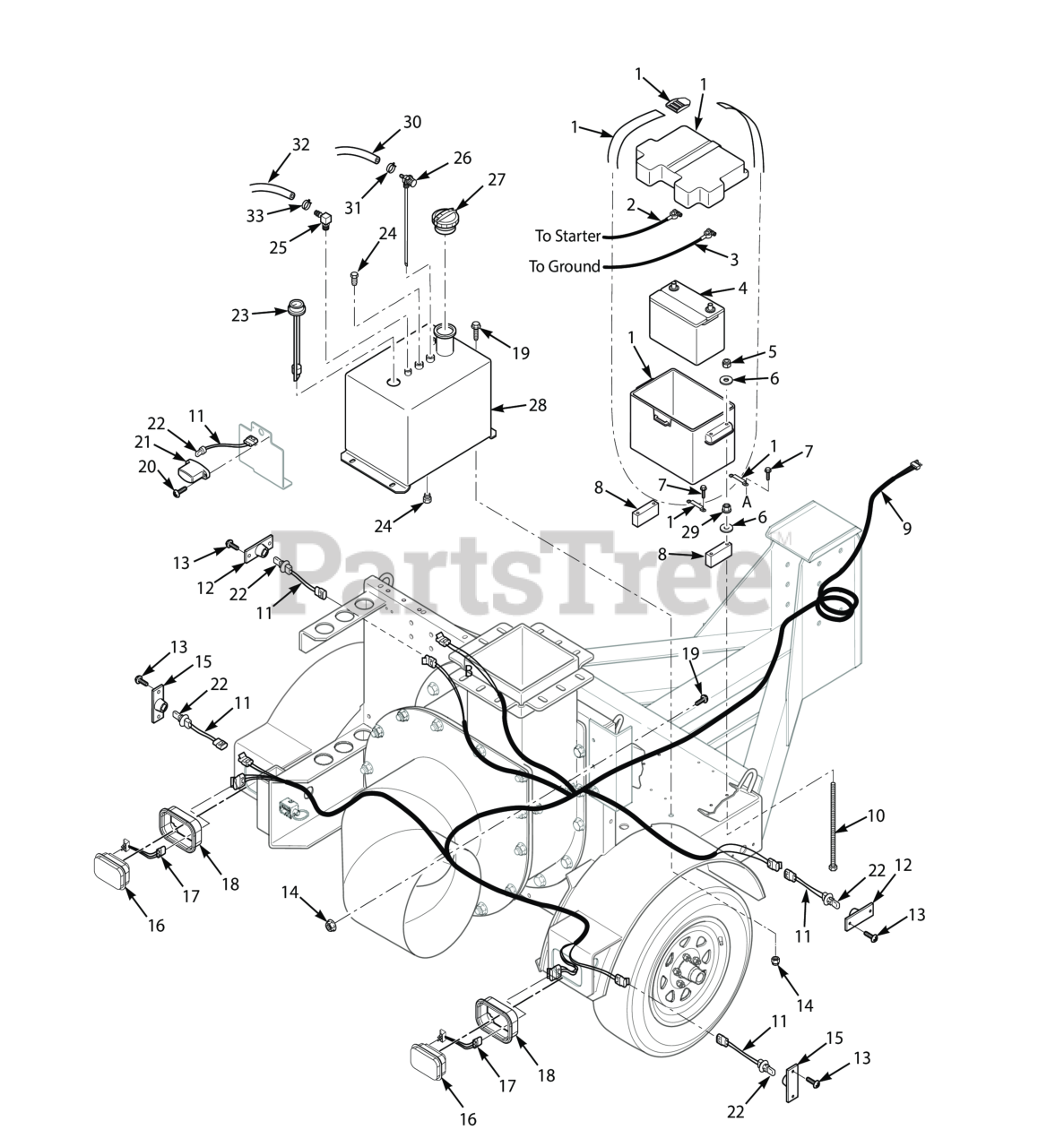

FUEL AND ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484989

Battery Box, GRP24

$53.99

$

Usually ships in 2-12 days

0

Scag 485107

Pad, Battery Hold Down

$13.99

$

Usually ships in 2-12 days

0

2

Scag 481176-06

Cable, Positive Battery

$44.99

$

Usually ships in 2-12 days

0

3

Scag 481176-13

Battery Cable, Black

$74.99

$

Usually ships in 2-12 days

0

4

Scag 482283

Battery (Not Avail. through Scag, Exide P/N 26R)

$

$

Currently unavailable

5

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

6

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

7

Scag 04011-11

Screw, #10-32 x .563 Shakeproof

$0.99

$

In Stock, Qty 8

0

8

Scag 485053

Spacer, Battery Bob (x6)

$5.99

$

Usually ships in 2-12 days

0

9

Scag 485043

Wire Harness, TL

$303.99

$

Usually ships in 2-12 days

0

10

Scag 04003-30

Bolt, Carriage 1/4-20 x 7-1/2"

$4.49

$

Usually ships in 2-12 days

0

11

Scag 485112

Pigtail, Side Marker Light

$21.99

$

Usually ships in 2-12 days

0

12

Scag 485041

Side Marker Light, Yellow (does not include #42)

$10.99

$

Usually ships in 2-12 days

0

13

Scag 04011-23

Screw, #8-18 x 3/4" Self Tap

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

15

Scag 485040

Side Marker Light, Red (does not include #42)

$10.99

$

Usually ships in 2-12 days

0

16

Scag 485039

Stop / Turn / Tail Light

$23.99

$

Usually ships in 2-12 days

0

17

Scag 485111

Pigtail, Tail Light

$28.99

$

Usually ships in 2-12 days

0

18

Scag 485072

Grommet, Tail Light

$7.49

$

Usually ships in 2-12 days

0

19

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

20

Scag 04011-06

SCREW, 10-32 X 3/4" SELF TAP

$0.99

$

Usually ships in 2-12 days

0

21

Scag 485077

Light, License Plate (includes #42)

$15.99

$

Usually ships in 2-12 days

0

22

Scag 485086

Light Bulb, 194

$2.99

$

Usually ships in 2-12 days

0

23

Scag 484323

Fuel Gauge Assembly

$96.99

$

In Stock, only 4 left!

0

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

24

Scag 481652-02

Plug, 1/4" NPT Socket Head

$2.49

$

Usually ships in 2-12 days

0

25

Scag 485102

Fuel Return Line Fitting

$39.99

$

Usually ships in 2-12 days

0

26

Scag 485101

Fuel Pick Up Tube

$35.99

$

Usually ships in 2-12 days

0

27

Scag 485084

Fuel Cap, Steel Tank - Diesel

$36.99

$

Usually ships in 2-12 days

0

28

Scag 492356

Fuel Tank Assembly (incl. #23, 24, 25, 26, 27)

$793.99

$

Usually ships in 2-12 days

0

29

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

30

Scag 483620

Fuel Hose, 5/16" I.D. Non-Perm (791DFI) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

31

Scag 48059-04

Clamp, Fuel Hose 5/16" I.D. (791DFI)

$0.99

$

Usually ships in 2-12 days

0

32

Scag 481179

Hose, 3/16" I.D. (order by inch)

$0.99

$

Usually ships in 2-12 days

0

33

Scag 48059-03

Clamp, Fuel Return Hose

$

$

Not available

Scag 485042

Reflector, Red

Note: Item Not Shown

$3.49

$

Usually ships in 2-12 days

0
