TLB25-35BV - Scag Industrial Tow-Behind Truck Loader, 35hp Vanguard (SN: P5200001 - P5299999) TRAILER ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 35hp Vanguard

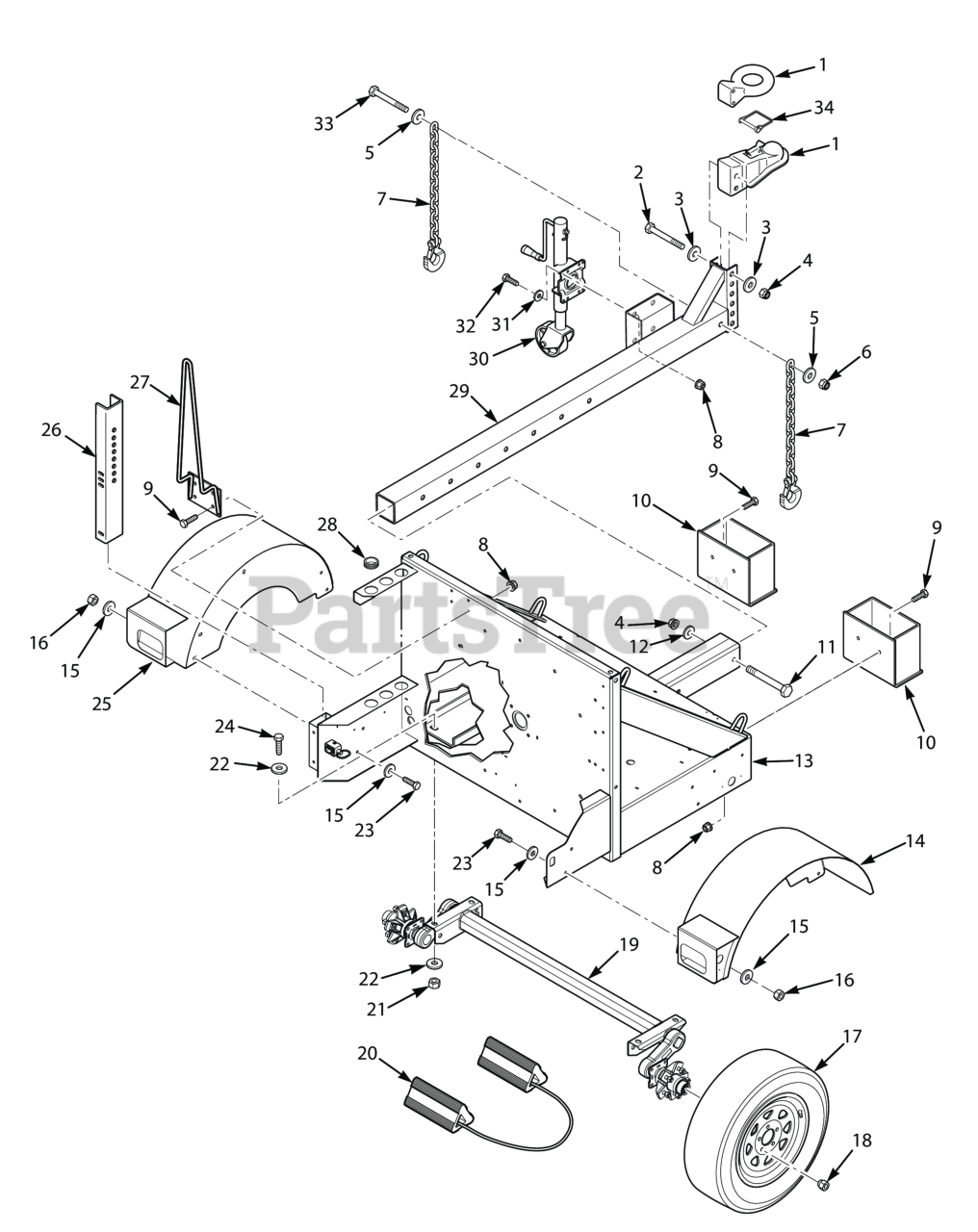

TRAILER ASSEMBLY Parts Diagram

  • Title

1

Scag 485104

Ball Coupler, 2-5/16"

$211.99

$

Usually ships in 2-12 days

0

Scag 485105

Pintle Ring, 3" (optional)

$142.99

$

Usually ships in 2-12 days

0

2

Scag 04001-204

Bolt, Hex Head 5/8-11 x 4-3/4" Grade 8

$9.99

$

Usually ships in 2-12 days

0

3

Scag 04043-09

FW, 5/8 -.656X1.312X.095 HD

$0.99

$

Usually ships in 2-12 days

0

4

Scag 04021-23

Nut, Center Lock 5/8-11

$1.49

$

In Stock, Qty 5

0

5

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04113-04

LKNUT, M12-1.75 ELAS STOP

$1.49

$

Usually ships in 2-12 days

0

7

Scag 485064

Safety Chain

$68.99

$

Usually ships in 2-12 days

0

8

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

9

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

10

Scag 452519

Chock Box

$80.99

$

Usually ships in 2-12 days

0

11

Scag 04001-119

BOLT, HEX HEAD, 5/8-11 X 5-1/2

$6.49

$

Usually ships in 2-12 days

0

12

Scag 04040-10

Flatwasher, 5/8 - (..688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

13

Scag 462656

Base and Frame w/Decals

$2237.99

$

Usually ships in 2-12 days

0

14

Scag 452545

Fender Weldment, RH

$211.99

$

Usually ships in 2-12 days

0

15

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

16

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

17

Scag 484948

Wheel Assembly, 205/75D15 - 6 Ply

$407.99

$

Usually ships in 2-12 days

0

Scag 485091

Rim, 15 x 5 - 5 Lug

$145.99

$

Usually ships in 2-12 days

0

Scag 485092

Tire, 205/75D15 - 6 Ply

$286.99

$

Usually ships in 2-12 days

0

18

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

19

Scag 485081

Axle, 3500 LBS. (incl. #18)

$1675.99

$

Usually ships in 2-12 days

0

20

Scag 485103

Wheel Chocks w/Rope

$169.99

$

Usually ships in 2-12 days

0

21

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 20+

0

22

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

23

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

24

Scag 04001-131

Bolt, Hex Head, 5/8-11 x 1-3/4"

$2.49

$

Usually ships in 2-12 days

0

25

Scag 452544

Fender Weldment, LH

$211.99

$

Usually ships in 2-12 days

0

26

Scag 426208

Support Channel

$114.99

$

Usually ships in 2-12 days

0

27

Scag 485109

Holder, Traffic Cone

$118.99

$

Usually ships in 2-12 days

0

Scag 485079

Traffic Cone (not shown)

$69.99

$

Usually ships in 2-12 days

0

28

Scag 485080

Grommet, Rubber

$2.99

$

Usually ships in 2-12 days

0

29

Scag 492357

Drawbar Assembly w/Decal, TLB25 (INCL. 1,2, 3,4,5,6,7,8,30,31,32,33,34,Decal-485126)

$

$

Currently unavailable

30

Scag 484849

Jack, Single Wheel

$445.99

$

Usually ships in 2-12 days

0

31

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

33

Scag 04002-29

HHCS, M12-1.75 X 140 LG

$6.99

$

Usually ships in 2-12 days

0

34

Scag 485110

Pin, Snapper

$3.49

$

Usually ships in 2-12 days

0
