TLB25-35BV - Scag Industrial Tow-Behind Truck Loader, 35hp Vanguard (SN: P5200001 - P5299999) INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

Industrial Tow-Behind Truck Loader, 35hp Vanguard

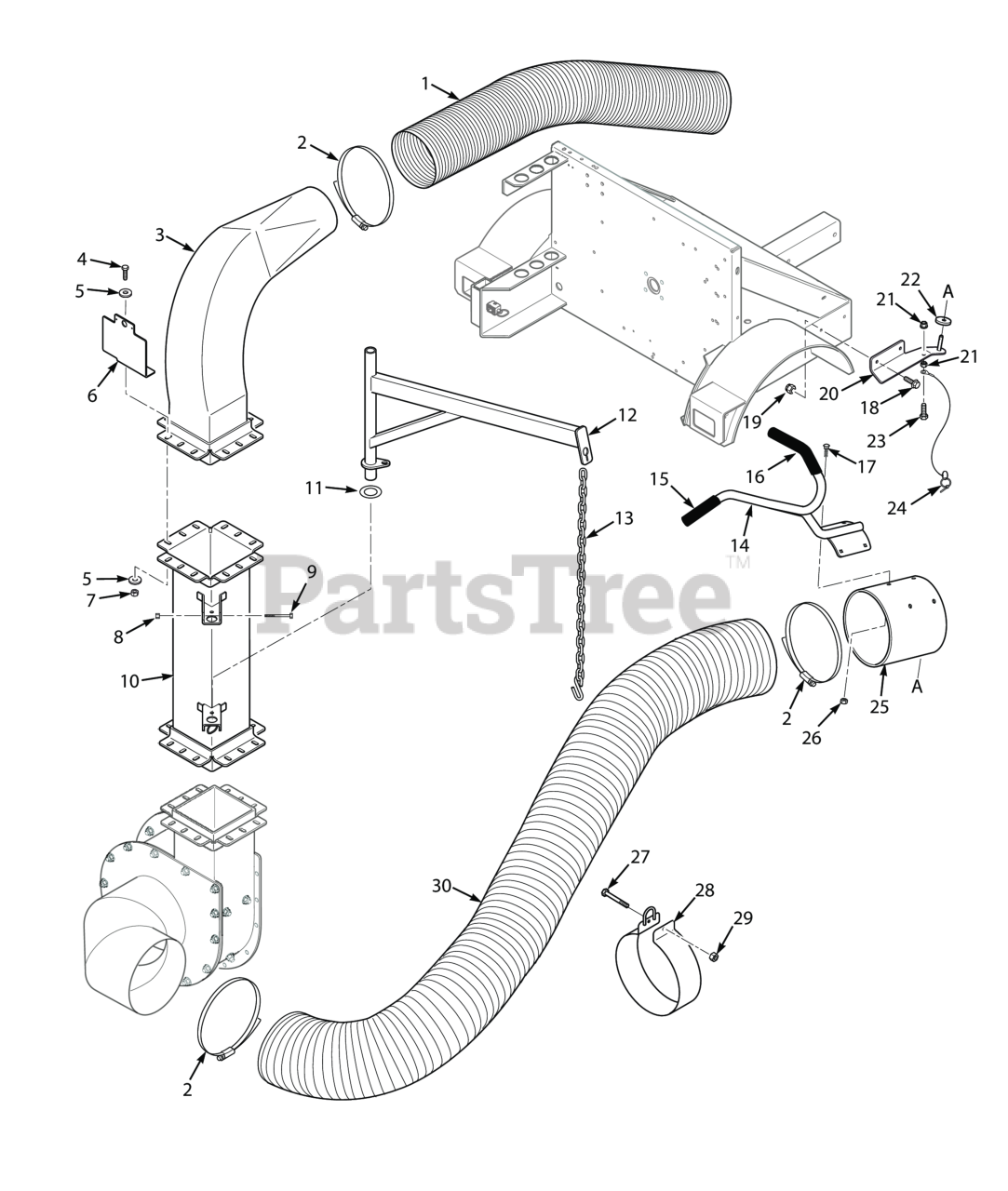

INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 48135-58

Hose, Clear Poly 12" x 84"

$664.99

$

Usually ships in 2-12 days

0

2

Scag 486044-01

Strap, Ratchet- 66 x 1"

$15.99

$

Usually ships in 2-12 days

0

3

Scag 452529

Elbow, Exhaust - TLB25

$1082.99

$

Usually ships in 2-12 days

0

4

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2", (STT-52 & STTII-52)

$1.49

$

In Stock, only 4 left!

0

5

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

6

Scag 426327

Bracket, License Plate

$30.99

$

Usually ships in 2-12 days

0

7

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

9

Scag 04001-203

Bolt, Hex Head 1/4-20 x 4"

$0.99

$

Usually ships in 2-12 days

0

10

Scag 462633

Stack Assembly w/Decals
(Superseded to 463107)

$918.99

$

Usually ships in 2-12 days

0

11

Scag 484947

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

12

Scag 452517

Boom Weldment

$339.99

$

Usually ships in 2-12 days

0

13

Scag 484894

Chain w/2-Hooks

$21.99

$

Usually ships in 2-12 days

0

14

Scag 462612

Handle w/Grips

$304.99

$

Usually ships in 2-12 days

0

15

Scag 485075

Grip, Handle 1-1/4" x 6"

$10.99

$

Usually ships in 2-12 days

0

16

Scag 485076

Grip, Handle 1-1/4" x 20"

$17.99

$

Usually ships in 2-12 days

0

17

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

18

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

19

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

20

Scag 452536

Hose Holder Weldment

$66.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

22

Scag 485050

Washer, Rubber

$5.49

$

Usually ships in 2-12 days

0

23

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

24

Scag 485062

Quick Pin Assembly w/Lanyard

$21.99

$

Usually ships in 2-12 days

0

25

Scag 462641

Nozzle w/Decal

$414.99

$

Usually ships in 2-12 days

0

26

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

28

Scag 452540

Band, Hose Support - 16"

$59.99

$

Usually ships in 2-12 days

0

29

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 48135-29

Hose, 16" x 84" - .045 P.U. w/Wire

$1118.99

$

Usually ships in 2-12 days

0
