TLB25-35BV - Scag Industrial Tow-Behind Truck Loader, 35hp Vanguard (SN: P5200001 - P5299999) IMPELLER HOUSING ASSEMBLY Parts Diagram
Industrial Tow-Behind Truck Loader, 35hp Vanguard

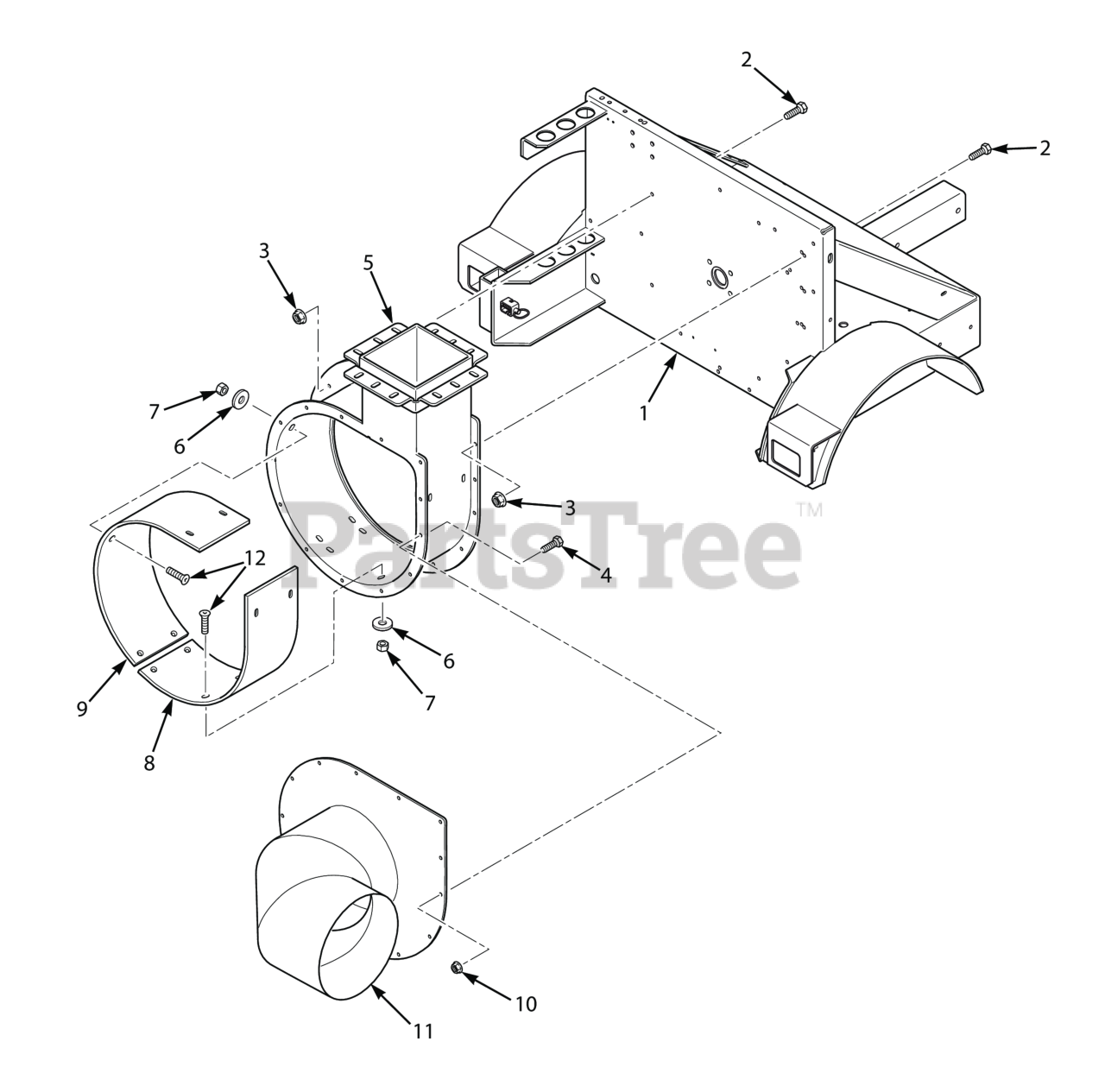

IMPELLER HOUSING ASSEMBLY Parts Diagram
Scag 462656
Base and Frame w/Decals
$2237.99
$
Usually ships in 2-12 days
Scag 04017-53
Bolt, Hex Head 7/16-14 x 3/4"
$2.99
$
Usually ships in 2-12 days
Scag 04019-05
HEX NUT, 7/16-14 SERRATED FLANGE
$0.99
$
In Stock, Qty 12
Scag 04017-26
Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"
$1.49
$
Usually ships in 2-12 days
Scag 462709
Impeller Housing Assembly- TLB25 (incl. # 6, 7, 8, 9, 12)
$861.99
$
Usually ships in 2-12 days
Scag 04040-13
Flat Washer, 1/2 (.562 x 1.375 x .109)
$0.99
$
In Stock, Qty 20+
Scag 04021-07
HEX LOCKNUT, ELASTIC STOP, 1/2-13
$0.99
$
In Stock, Qty 20+
Scag 426237
Wear Band, Long - TL25
$215.99
$
Usually ships in 2-12 days
Scag 426236
Wear Band, Short - TL25
$216.99
$
Usually ships in 2-12 days
Scag 04019-04
NUT, 3/8-16 SERRATED FLANGE HEX HEAD
$0.99
$
In Stock, Qty 20+
Scag 452492
Intake Elbow, TLB25
$844.99
$
Usually ships in 2-12 days
Scag 04014-05
Capscrew, 1/2-13 x 1-1/2"
$0.99
$
Usually ships in 2-12 days
