TL35251W (3800011) - Giant-Vac Trailer Mount Truck Loader Vacuum, 35hp Trailer Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 35hp

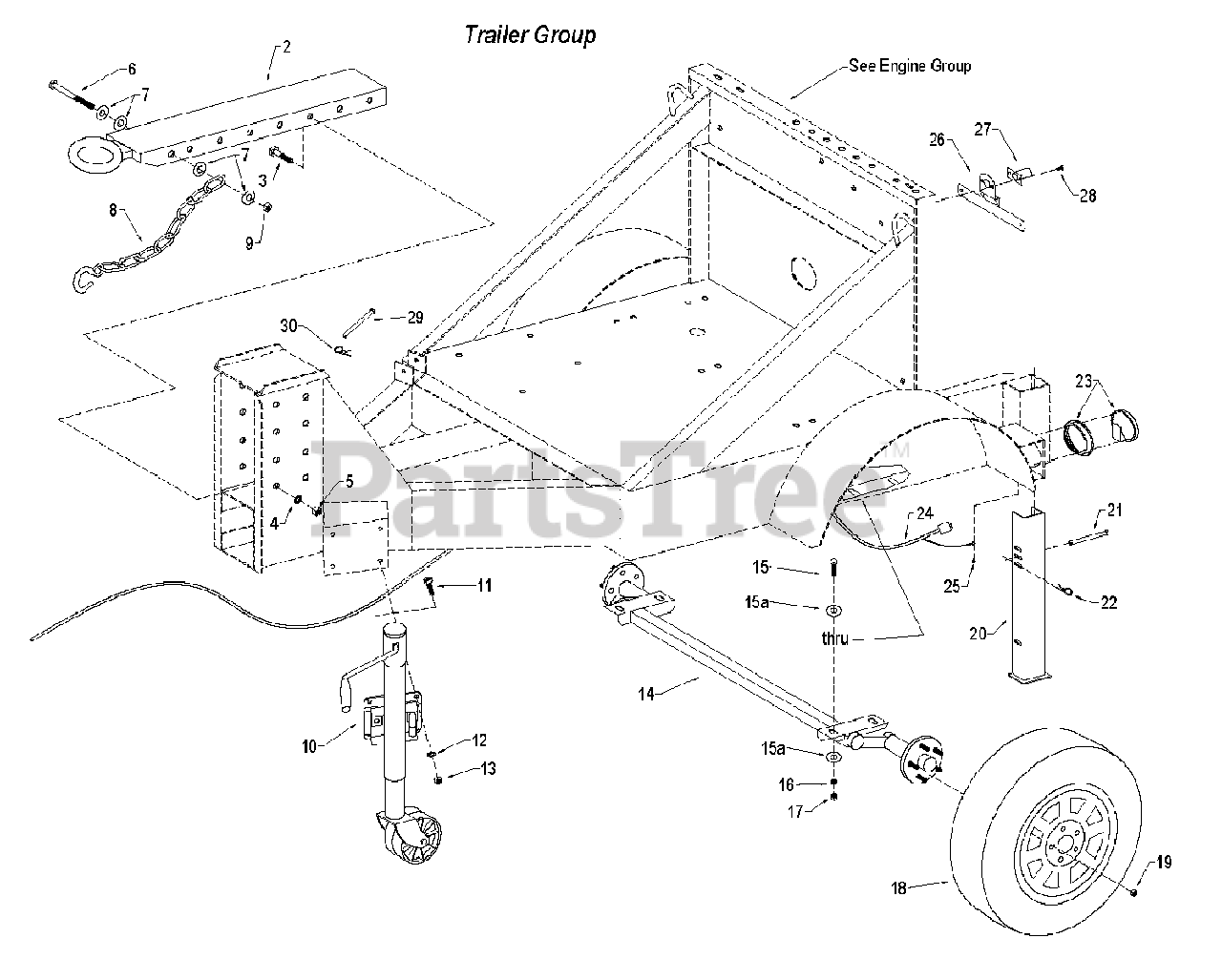

Trailer Group Parts Diagram

  • Title
1

--

Loader base and trailer frame (see engine group)

$

$

Not available

2

$

$

Currently unavailable

3

Giant-Vac 3031122

Bolt, hex - 1/2-13 x 1-1/4"
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

4

Giant-Vac 3031121

Washer, lock - 1/2

$

$

Currently unavailable

5

Giant-Vac 3031406

Nut, reverse lock - 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 2 left!

0

6

Giant-Vac 3031821

Bolt, hex - 1/2-13 x 7"

$

$

Not available

7

Giant-Vac 3031119

Washer, flat - 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

8

Giant-Vac 3031641

Chain, safety towing

$

$

Currently unavailable

9

Giant-Vac 3031406

Nut, lock - 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 2 left!

0

10

Giant-Vac 3033173

Jack, dual wheel support

$

$

Currently unavailable

11

Giant-Vac 3031114

Bolt, hex - 3/8-16 x 1"
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

12

Giant-Vac 3031115

Washer, lock - 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

13

Giant-Vac 3031116

Nut, lock - 3/8-16

$

$

Currently unavailable

14

Giant-Vac 3033297

Axle, Torflex

$

$

Currently unavailable

15

3032154

Bolt, hex, black oxide, 1/2-13 x 1-1/4 gr 5

$

$

Not available

15a

3032155

Washer, flat, 1/2"

$

$

Not available

16

Giant-Vac 3031121

Washer, lock - 1/2"

$

$

Currently unavailable

17

Giant-Vac 3032156

Nut, hex end lock – 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

18

Giant-Vac 3033051

Tire and wheel assy

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Giant-Vac 3040105

Leg, support

$

$

Currently unavailable

21

Giant-Vac 3031125

Pin, clevis - 3/8 x 4-1/2"

$

$

Not available

22

Giant-Vac 3031126

Pin, bridge

$

$

Not available

23

Giant-Vac 3031639

Light, tail/stop assy

$

$

Currently unavailable

24

Giant-Vac 3031822

Harness, wiring

$

$

Currently unavailable

Giant-Vac 3031644

Clip, wiring harness, slip-on – large

$

$

Not available

Giant-Vac 3032012

Clip, wiring harness, bolt-on – 3/8 nom

$

$

Currently unavailable

Giant-Vac 3031562

Screw, self-tapping - #12 x 3/4 (secures bolt-on clips to frame)
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

25

Giant-Vac 3032090

Screw, self-tapping - #10 x 1/2 (taillight ground)

$

$

Currently unavailable

26

Giant-Vac 3031752

Bracket, license

$

$

Currently unavailable

27

Giant-Vac 3031751

Light, license

$

$

Currently unavailable

28

Giant-Vac 3031444

Bolt, hex - 1/4-20 x 1 – bolts license light assy to frame

$

$

Not available

Giant-Vac 3031013

Washer, lock - 1/4"
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031030

Nut, hex - 1/4-20

$

$

Currently unavailable

29

Giant-Vac 3031125

Pin, clevis - 3/8 x 4-1/2"

$

$

Not available

30

Giant-Vac 3031126

Pin, bridge

$

$

Not available
