TL35251W (3800011) - Giant-Vac Trailer Mount Truck Loader Vacuum, 35hp Engine Group Parts Diagram

Trailer Mount Truck Loader Vacuum, 35hp

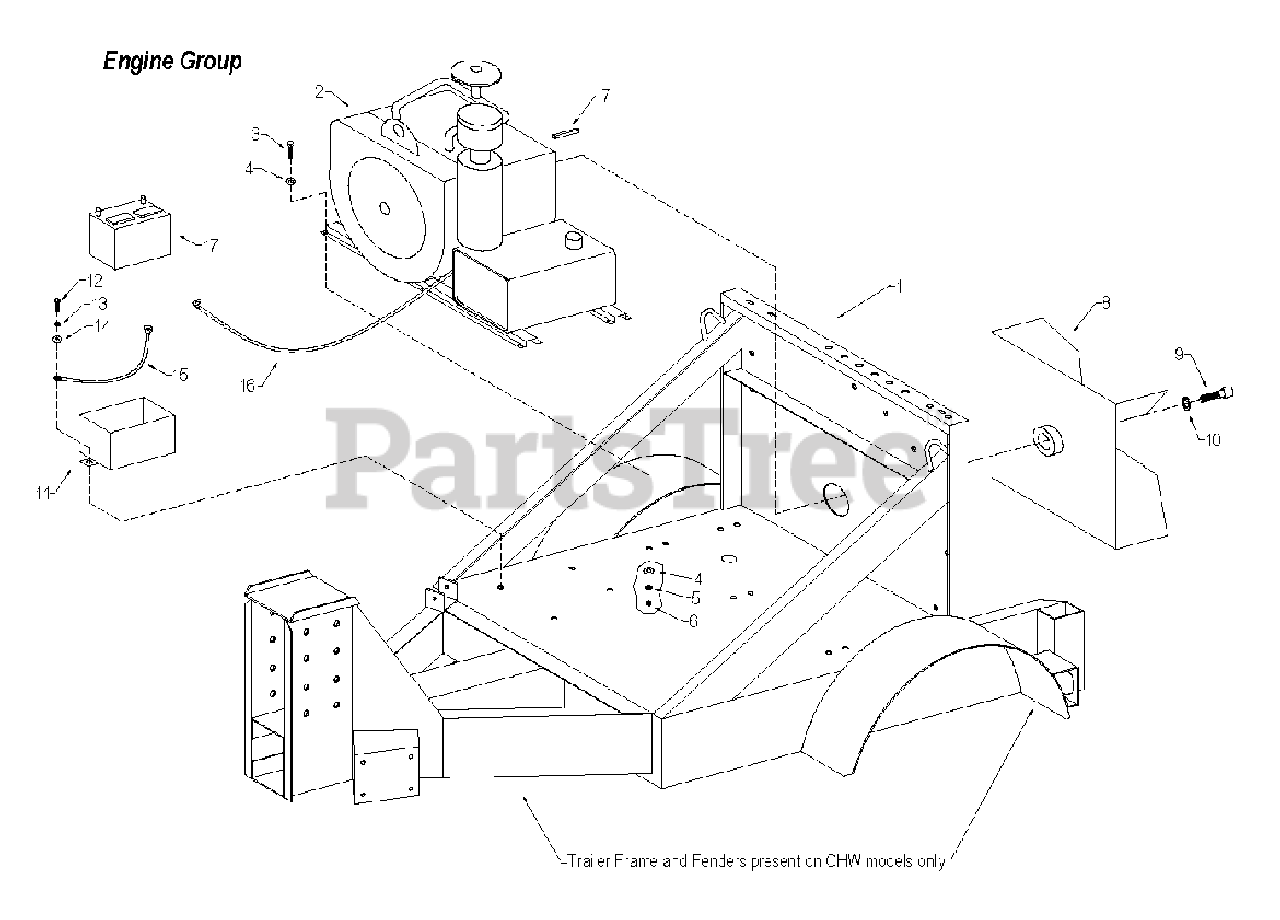

Engine Group Parts Diagram

  • Title

1

Giant-Vac 3010185

Loader base – skid mount model

$

$

Currently unavailable

1

Giant-Vac 3010186

Loader base and trailer frame – CHW model

$

$

Currently unavailable

2

--

* 30 HP Wisconsin engine

$

$

Not available

3

Giant-Vac 3031123

3/8-16 x 1-1/4 hex bolt (engine mounting bolt)
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

4

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Giant-Vac 3031115

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

6

Giant-Vac 3031116

3/8-16 hex nut

$

$

Currently unavailable

7

3031127

Impeller key

$

$

Not available

8

Giant-Vac 3021518

Impeller

$

$

Currently unavailable

9-10

Giant-Vac 3031327

5/8-11 x 1-3/4 impeller bolt and lock washer group

$

$

Currently unavailable

11

Giant-Vac 3040100

Battery box

$

$

Currently unavailable

12

Giant-Vac 3031123

3/8 x 1-1/4 hex bolt (bolts battery box to base)
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

13

Giant-Vac 3031115

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

3031763

Battery cable, ground – 16S

$

$

Not available

Giant-Vac 3031839

Cover, battery terminal - black

$

$

Currently unavailable

16

Giant-Vac 3031818

Battery cable, positive – 42S

$

$

Currently unavailable

Giant-Vac 3031838

Cover, battery terminal – red

$

$

Currently unavailable

17

Giant-Vac 3039021

Battery

$

$

Currently unavailable
