Scag TL20W-29BV - Scag Tow-Behind Truck Loader, 29hp Vanguard (SN: P5000001 - P5099999) TRAILER ASSEMBLY Parts Lookup with Diagrams

1

Scag 485078

Ball Hitch, 2"

$95.99

$

Usually ships in 2-12 days

Scag 485105

Pintle Ring, 3" (optional)

$142.99

$

Usually ships in 2-12 days

2

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

3

Scag 04002-29

HHCS, M12-1.75 X 140 LG

$6.99

$

Usually ships in 2-12 days

4

Scag 04113-04

LKNUT, M12-1.75 ELAS STOP

$1.49

$

Usually ships in 2-12 days

5

Scag 485064

Safety Chain

$68.99

$

Usually ships in 2-12 days

6

Scag 484849

Jack, Single Wheel

$445.99

$

Usually ships in 2-12 days

7

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

8

Scag 492384

Draw Bar Assembly w / Decals (INCL. 1,2,3,4,5,6,7,17,23,24,34,35,36,39,40,41,Decal-485126)

$

Currently unavailable 

9

Scag 484990

Battery Box w/Strap

$53.99

$

Usually ships in 2-12 days

10

Scag 485053

Spacer, Battery Bob (x6)

$5.99

$

Usually ships in 2-12 days

11

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 10

12

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

13

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

14

Scag 426207

Fuel Tank Mount

$108.99

$

Usually ships in 2-12 days

15

Scag 426326

Bracket, Cannister Mount

$19.99

$

Usually ships in 2-12 days

16

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

17

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

18

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

19

Scag 485062

Quick Pin Assembly w/Lanyard

$21.99

$

Usually ships in 2-12 days

20

Scag 485050

Washer, Rubber

$5.49

$

Usually ships in 2-12 days

21

Scag 452513

Weldment, Hose Holder

$96.99

$

Usually ships in 2-12 days

22

Scag 04001-119

BOLT, HEX HEAD, 5/8-11 X 5-1/2

$6.49

$

Usually ships in 2-12 days

23

Scag 04001-202

Bolt, Hex Head 5/8-11 x 5" Grade 8

$

Currently unavailable 

24

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 20+

25

Scag 452490

Fender Weldment, RH

$196.99

$

Usually ships in 2-12 days

26

Scag 484948

Wheel Assembly, 205/75D15 - 6 Ply

$407.99

$

Usually ships in 2-12 days

Scag 485091

Rim, 15 x 5 - 5 Lug

$145.99

$

Usually ships in 2-12 days

Scag 485092

Tire, 205/75D15 - 6 Ply

$286.99

$

Usually ships in 2-12 days

27

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

28

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 20+

29

Scag 484783

Axle, 2000 LBS - 5 Lug, 47"

$1319.99

$

Usually ships in 2-12 days

30

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2", (STT-52 & STTII-52)

$1.49

$

In Stock, only 4 left!

31

Scag 452489

Fender Weldment, LH

$196.99

$

Usually ships in 2-12 days

32

Scag 485080

Grommet, Rubber

$2.99

$

Usually ships in 2-12 days

33

Scag 426208

Support Channel

$114.99

$

Usually ships in 2-12 days

34

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 2 left!

35

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

36

Scag 452488

Ball Hitch Mount

$83.99

$

Usually ships in 2-12 days

37

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 10

38

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

39

Scag 426293

Plate, Spacer

$11.99

$

Usually ships in 2-12 days

40

Scag 485110

Pin, Snapper

$3.49

$

Usually ships in 2-12 days

41

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 12

42

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

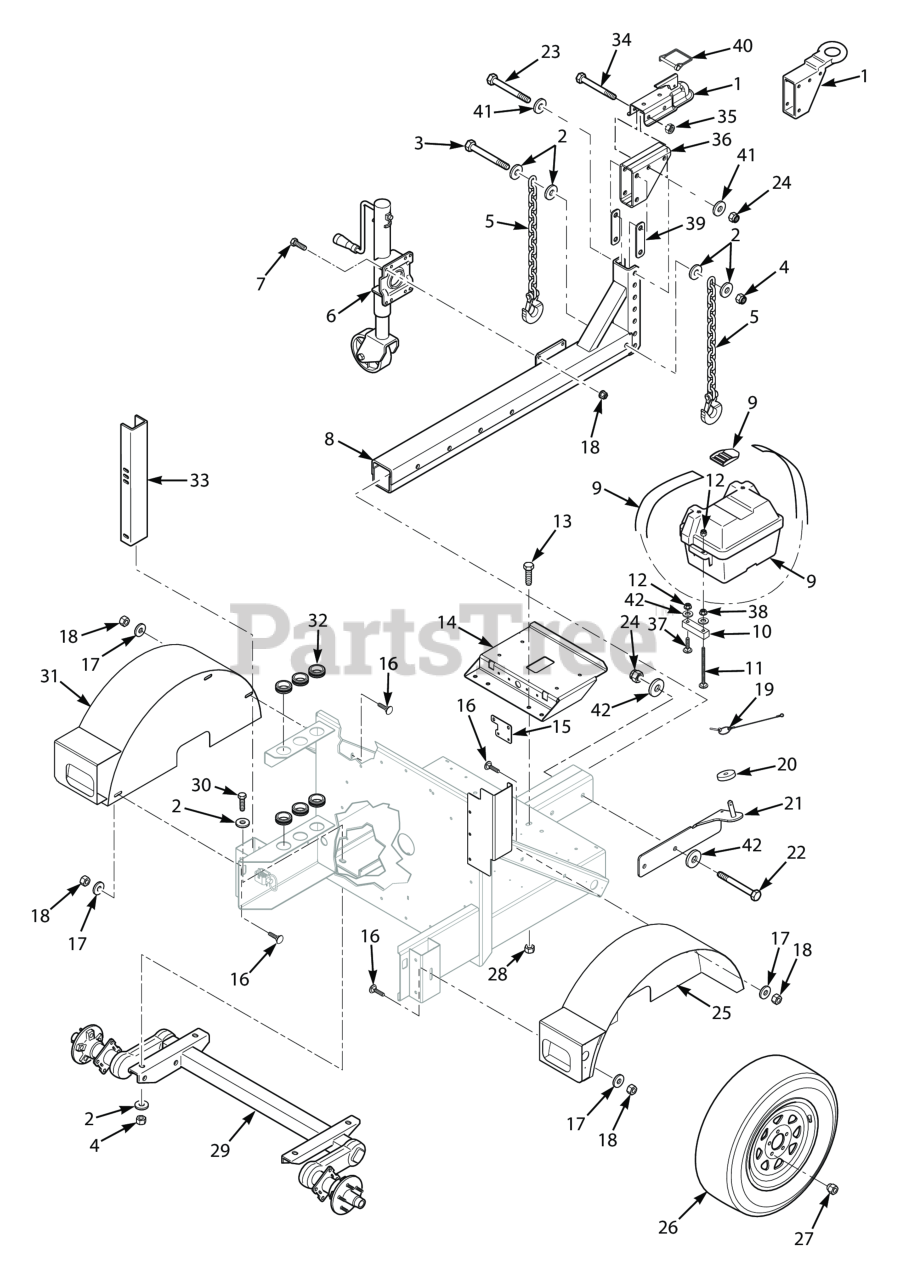

TL20W-29BV - Scag Tow-Behind Truck Loader, 29hp Vanguard (SN: P5000001 - P5099999) TRAILER ASSEMBLY Parts Diagram

TRAILER ASSEMBLY Parts Diagram
