TL20W-29BV - Scag Tow-Behind Truck Loader, 29hp Vanguard (SN: P5000001 - P5099999) INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

Tow-Behind Truck Loader, 29hp Vanguard

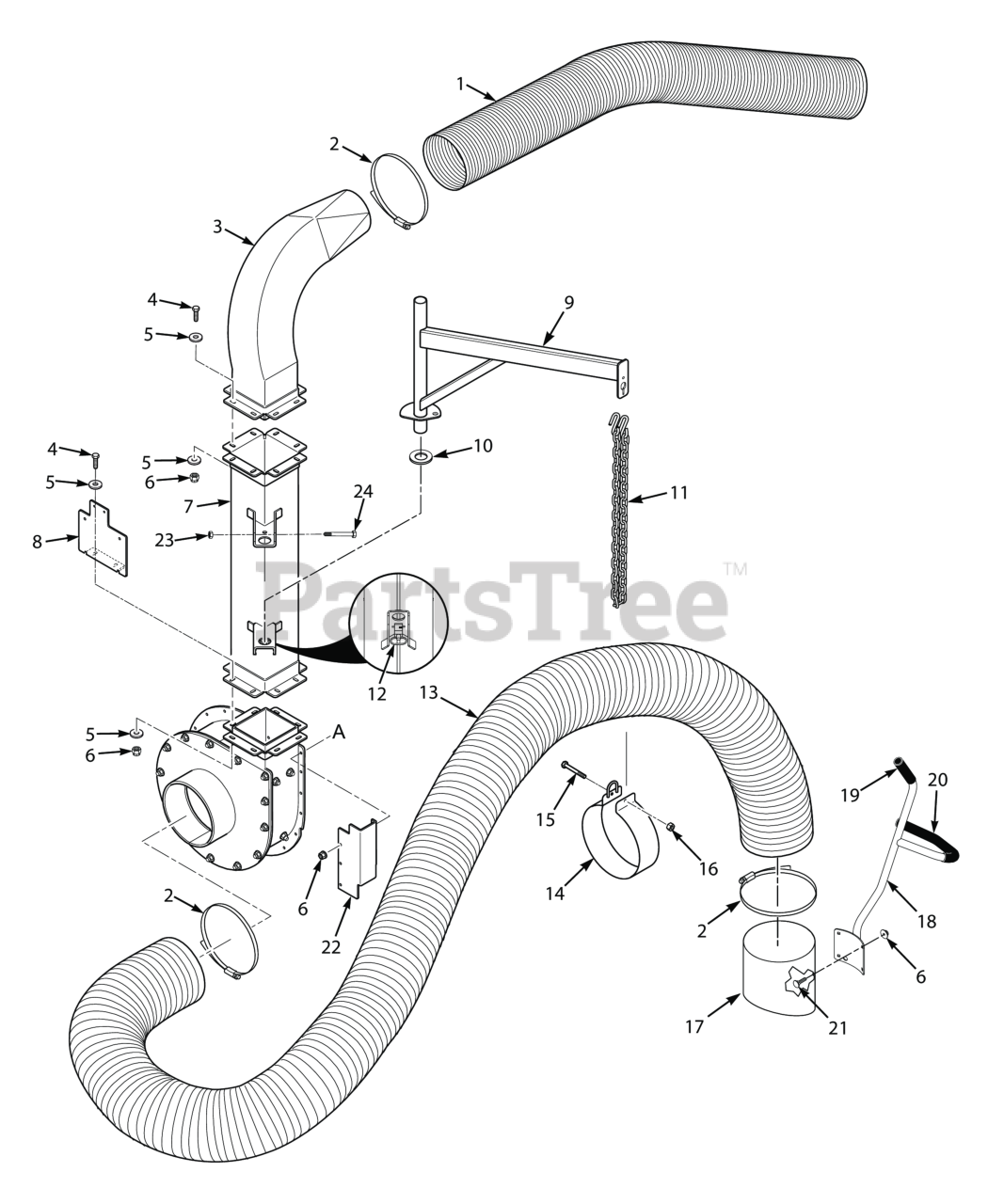

INTAKE AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 48135-57

Hose, Clear Poly 8" Dia. x 60"

$314.99

$

Usually ships in 2-12 days

0

2

Scag 486044-01

Strap, Ratchet- 66 x 1"

$16.99

$

Usually ships in 2-12 days

0

3

Scag 452479

Elbow, Exhaust - TL20W

$753.99

$

Usually ships in 2-12 days

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 462617

Discharge Stack w/ Decal - TL20W

$715.99

$

Usually ships in 2-12 days

0

8

Scag 426327

Bracket, License Plate

$31.99

$

Usually ships in 2-12 days

0

9

Scag 452477

Boom Weldment

$392.99

$

Usually ships in 2-12 days

0

10

Scag 484947

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

11

Scag 484894

Chain w/2-Hooks

$21.99

$

Usually ships in 2-12 days

0

12

Scag 485065

Spring

$38.99

$

Usually ships in 2-12 days

0

13

Scag 48135-28

Hose, 12" OD x 120" - .045 w/Wearstrip

$767.99

$

Usually ships in 2-12 days

0

14

Scag 452440

Band, Hose Support

$140.99

$

Usually ships in 2-12 days

0

15

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

16

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 426312

Nozzle, 12"

$162.99

$

Usually ships in 2-12 days

0

18

Scag 462612

Handle w/Grips

$311.99

$

Usually ships in 2-12 days

0

19

Scag 485075

Grip, Handle 1-1/4" x 6"

$11.99

$

Usually ships in 2-12 days

0

20

Scag 485076

Grip, Handle 1-1/4" x 20"

$18.99

$

Usually ships in 2-12 days

0

21

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

22

Scag 426209

Bracket, Hose Protector

$35.99

$

Usually ships in 2-12 days

0

23

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

24

Scag 04001-203

Bolt, Hex Head 1/4-20 x 4"

$0.99

$

Usually ships in 2-12 days

0
