TL20W-29BV - Scag Tow-Behind Truck Loader, 29hp Vanguard (SN: P5000001 - P5099999) ELECTRICAL SYSTEM Parts Diagram

Tow-Behind Truck Loader, 29hp Vanguard

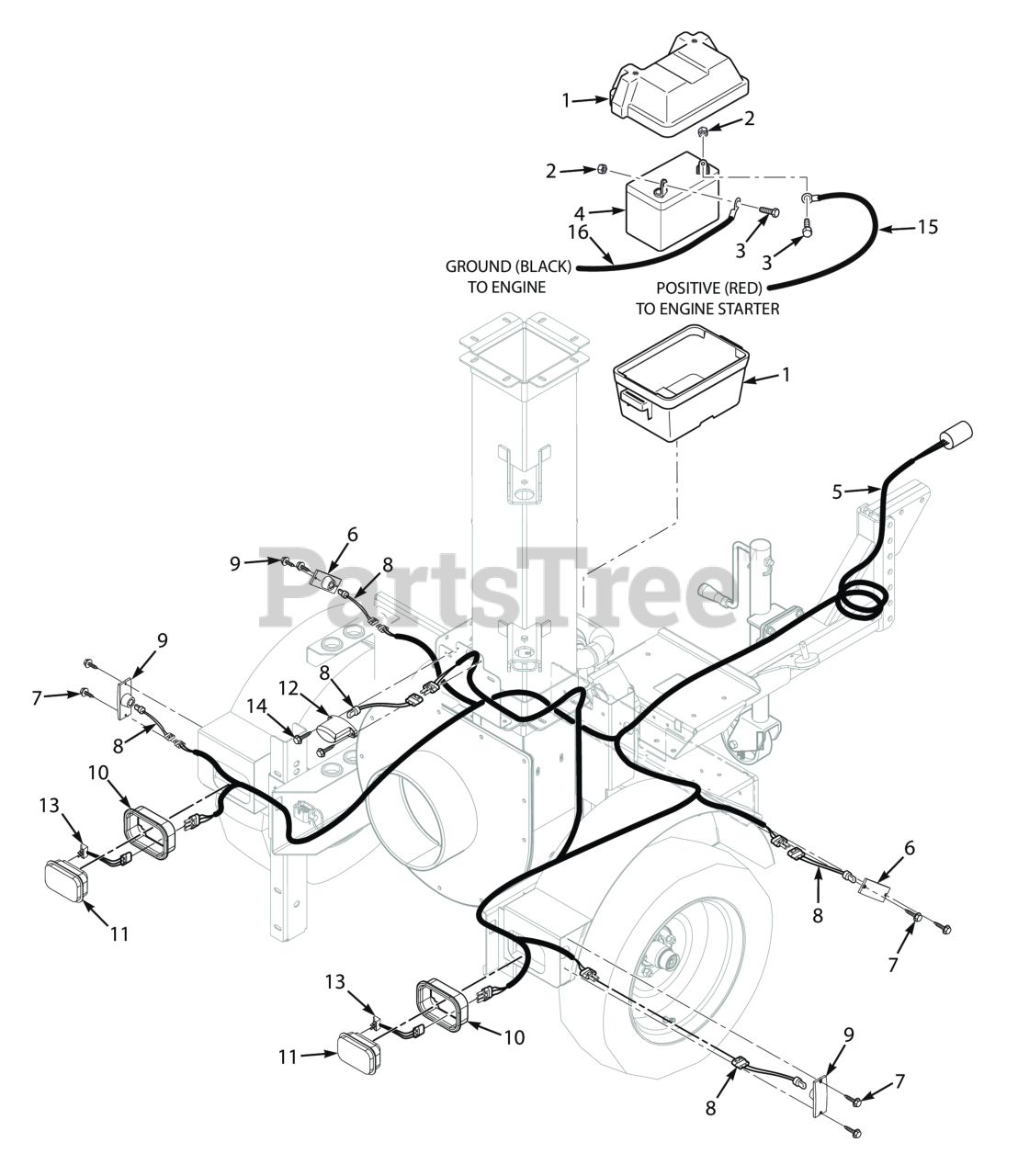

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484990

Battery Box w/Strap

$53.99

$

Usually ships in 2-12 days

0

2

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

4

Battery (not available through Scag Power Equipment)

$

$

Not available

5

Scag 485043

Wire Harness, TL

$303.99

$

Usually ships in 2-12 days

0

6

Scag 485041

Side Marker Light, Yellow (does not include #42)

$10.99

$

Usually ships in 2-12 days

0

7

Scag 04011-23

Screw, #8-18 x 3/4" Self Tap

$0.99

$

Usually ships in 2-12 days

0

8

Scag 485112

Pigtail, Side Marker Light

$21.99

$

Usually ships in 2-12 days

0

9

Scag 485040

Side Marker Light, Red (does not include #42)

$10.99

$

Usually ships in 2-12 days

0

10

Scag 485072

Grommet, Tail Light

$7.49

$

Usually ships in 2-12 days

0

11

Scag 485039

Stop / Turn / Tail Light

$23.99

$

Usually ships in 2-12 days

0

12

Scag 485077

Light, License Plate (includes #42)

$15.99

$

Usually ships in 2-12 days

0

13

Scag 485111

Pigtail, Tail Light

$28.99

$

Usually ships in 2-12 days

0

14

Scag 04011-06

SCREW, 10-32 X 3/4" SELF TAP

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48029-27

Battery Cable, Red 32" w/Conduit

$27.99

$

Usually ships in 2-12 days

0

16

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

In Stock, only 1 left!

0
