Tiller - BCS America Tiller Attachment for 745 Tractor (1984 - 1994) Tines & Depth Control (SN: 10001 & Above) Parts Diagram

745 Rotary Tiller Attachment

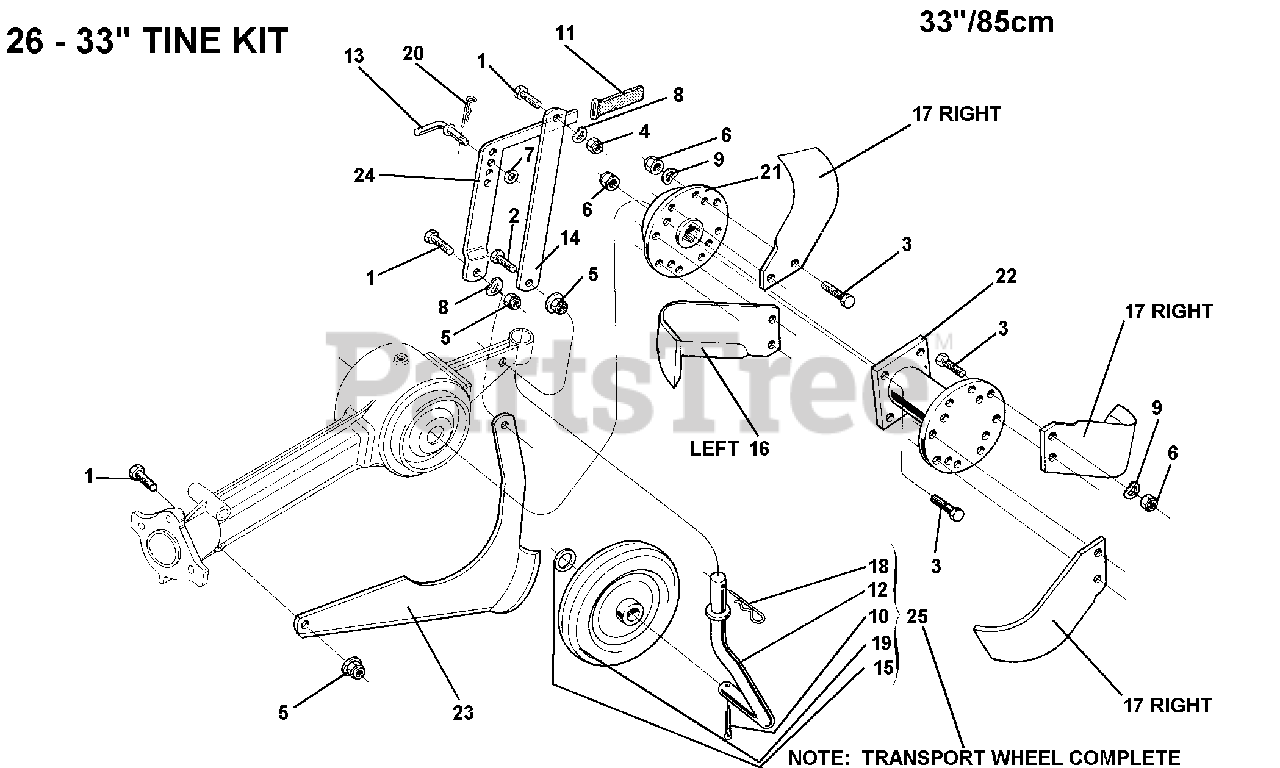

Tines & Depth Control (SN: 10001 & Above) Parts Diagram

  • Title

1

BCS America 311.12211

SCREW M10 X 30

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12212

SCREW TE M10 X 35 UNI 5739-8G

$1.99

$

In Stock, only 1 left!

0

3

BCS America 311.12264

SCREW TE M12 X 35 UNI 5739-8G

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

5

BCS America 312.41104

NUT

$5.99

$

Usually ships in 5-8 days

0

6

31241120

NUT, SELF LOCKING M12

$

$

Not available

7

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 5

0

8

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

9

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, Qty 5

0

10

BCS America 341.10042

PIN, COTTER A 4 X 30 UNI 1336

$0.99

$

Usually ships in 5-8 days

0

11

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

12

BCS America 561.42467

WHEEL SUPPORT PIN

$

$

Currently unavailable

13

BCS America 561.48625

ADJUSTMENT PIN

$32.99

$

Usually ships in 5-8 days

0

14

BCS America 561.49705

CHAIN ROD

$18.99

$

Usually ships in 5-8 days

0

15

BCS America 562.02628

SPACER RING

$10.99

$

Usually ships in 5-8 days

0

16

BCS America 565.49707

LEFT KNIFE

$32.99

$

In Stock, Qty 5

0

17

BCS America 565.49708

RIGHT KNIFE, WIDE

$32.99

$

In Stock, Qty 5

0

18

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

19

BCS America 580.42468

RUBBER WHEEL D 22

$

$

Currently unavailable

20

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

21

BCS America 590.49687

BLADE HOLDER FLANGE

$177.99

$

Usually ships in 5-8 days

0

22

BCS America 59049690

KNIFE SPACER

$168.99

$

In Stock, only 2 left!

0

23

BCS America 590.49702

CENTRAL KNIFE

$242.99

$

Usually ships in 5-8 days

0

24

BCS America 590.49734

KNIVE ROD

$65.99

$

Usually ships in 5-8 days

0

25

BCS America 922.42465

TRANSPORT WHEEL ASSEMBLY

$

$

Currently unavailable

26

BCS America T33W

33" TINE KIT

$394.50

$

Usually ships in 5-8 days

0
