Tiller - BCS America Tiller Attachment for 700/800 Series Tractors (1995 & After) Gear Box (SN: 77651 - 458699) Parts Diagram

3-Dog PTO Rotary Tiller Attachment

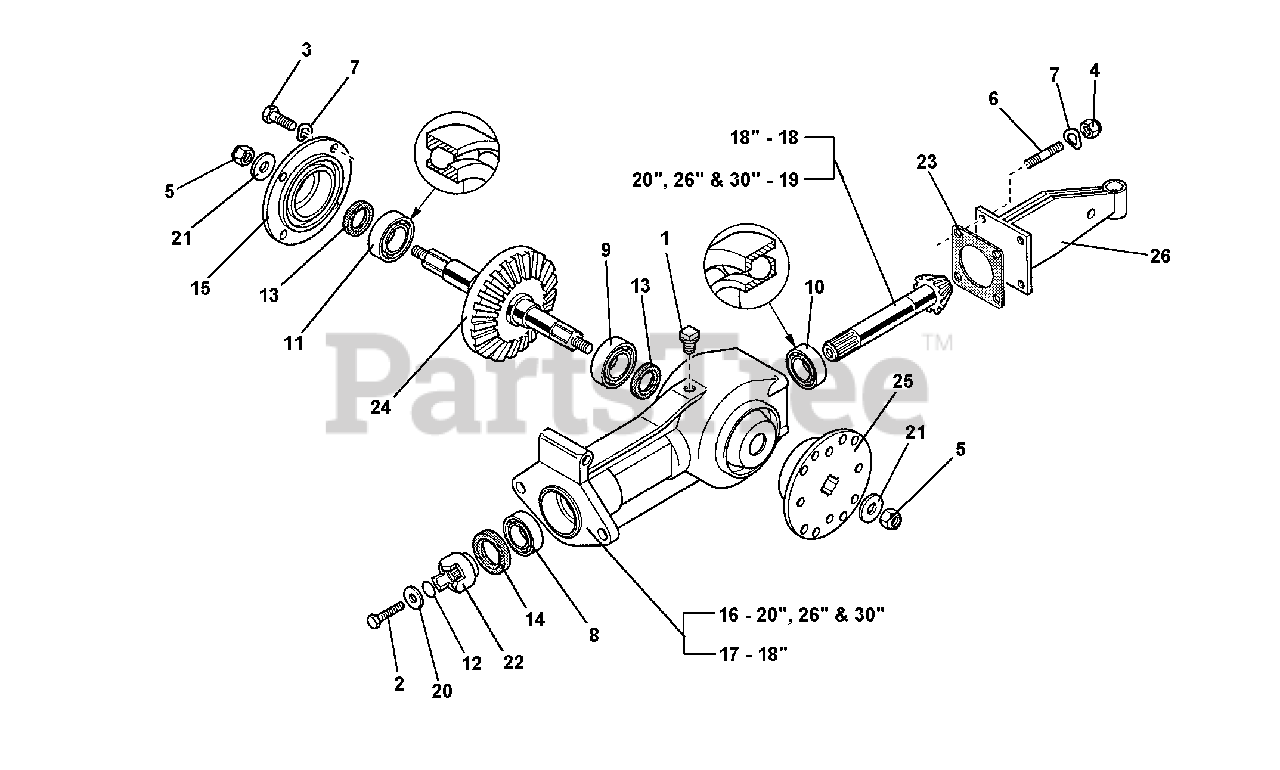

Gear Box (SN: 77651 - 458699) Parts Diagram

  • Title

$5.49

$

In Stock, only 2 left!

0

2

BCS America 311.12093

SCREW, M6X20

$0.99

$

In Stock, only 3 left!

0

3

BCS America 311.12151

SCREW, M8X25

$1.49

$

In Stock, Qty 5

0

4

BCS America 312.41085

NUT, SELF LOCKING, M8

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 312.41141

NUT, SELF LOCKING, M14

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12078

STUD, M8X32X14X14

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.21083

WASHER, LOCKING, M8.4

$1.49

$

In Stock, Qty 7

0

8

BCS America 371.11200

BEARING, M20X42X12

Note:

$16.99

$

In Stock, only 2 left!

0

9

BCS America 371.11255

BEARING, M25X52X15

$15.99

$

In Stock, only 1 left!

0

10

BCS America 371.41201

BEARING, M20X47X14

$85.99

$

Usually ships in 5-8 days

0

11

BCS America 371.11255

BEARING, M25X52X15

$15.99

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, Qty 5

0

13

$

$

Currently unavailable

14

BCS America 382.12842

OIL SEAL, 28X42X7

$11.99

$

In Stock, only 1 left!

0

15

$144.99

$

Usually ships in 5-8 days

0

16

BCS America 512.48405

GEAR CASE HOUSING

$

$

Currently unavailable

17

BCS America 512.59225

GEAR CASE HOUSING, 18" TILLER

$576.99

$

Usually ships in 5-8 days

0

18

BCS America 524.59226

PINION SHAFT, 18" TILLER

$182.99

$

Usually ships in 5-8 days

0

19

BCS America 524.59230

PINION SHAFT, 20" - 30" TILLER

Note:

$171.99

$

In Stock, only 1 left!

0

$1.99

$

Usually ships in 5-8 days

0

$

$

Not available

22

BCS America 564.58941

PTO COUPLER

$66.99

$

In Stock, only 1 left!

0

23

BCS America 580.49859

BACK COVER GASKET

$6.49

$

In Stock, only 1 left!

0

24

BCS America 590.48408

TINE SHAFT AND GEAR

$357.99

$

Usually ships in 5-8 days

0

25

BCS America 590.48435

BLADE HOLDER FLANGE

$156.99

$

Usually ships in 5-8 days

0

26

BCS America 590.49853

REAR COVER FOR TILLER

$77.99

$

Usually ships in 5-8 days

0

27

BCS America 592.90859

GEARBOX COMPLETE 20", 26", 30"

Note: Excludes ref #25

$990.99

$

Usually ships in 5-8 days

0

28

BCS America 592.90858

GEARBOX COMPLETE 18"

Note: Excludes ref #25

$930.99

$

Usually ships in 5-8 days

0
