Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1984 - 1994) Tines & Depth Control (SN: 10000 - 12500) Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

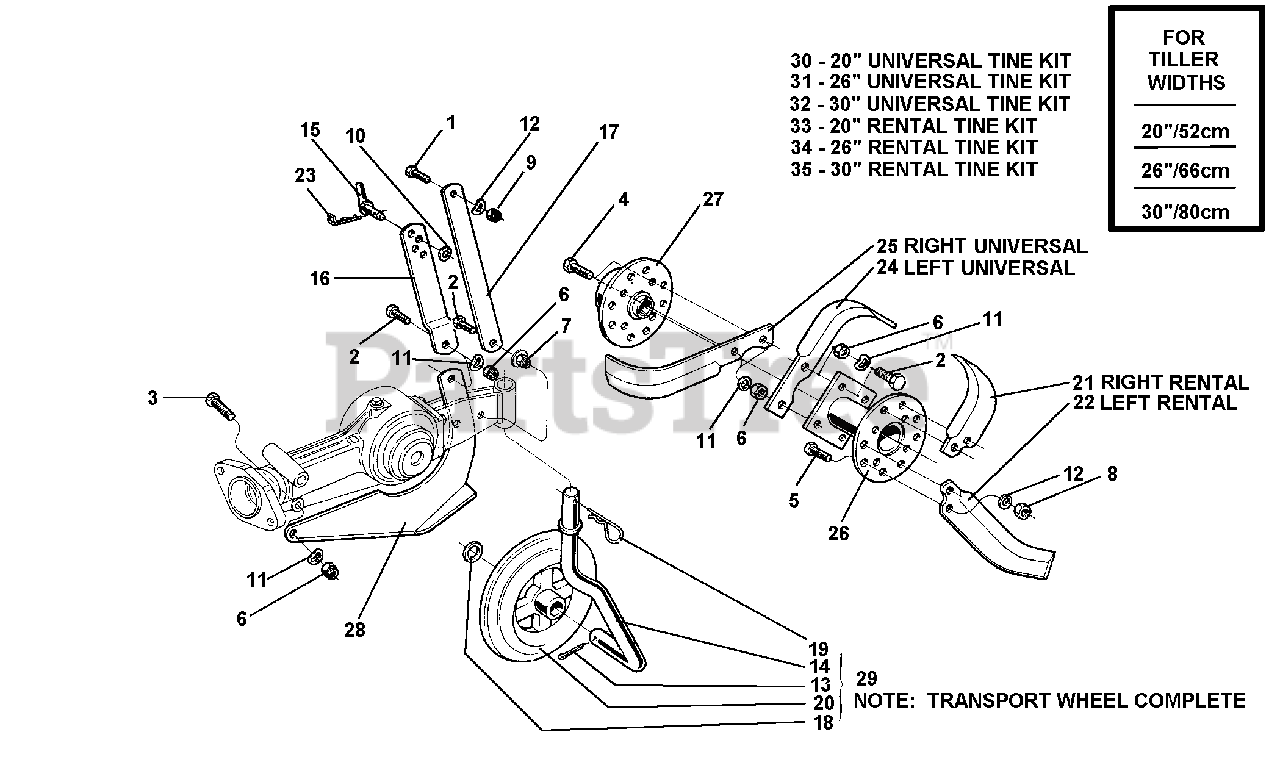

Tines & Depth Control (SN: 10000 - 12500) Parts Diagram

  • Title

1

BCS America 311.11212

SCREW TE M10 X 25

$

$

Currently unavailable

2

BCS America 311.12151

SCREW M8 X 25

$1.49

$

In Stock, Qty 5

0

3

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

In Stock, only 4 left!

0

4

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, only 2 left!

0

5

BCS America 311.12219

SCREW TE M10 X 25 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

7

BCS America 312.41084

NUT

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

9

BCS America 312.41101

NUT, SELF LOCKING M10 LOW

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 5

0

11

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

12

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

13

BCS America 341.10042

PIN, COTTER A 4 X 30 UNI 1336

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 561.42467

WHEEL SUPPORT PIN

$

$

Currently unavailable

15

BCS America 561.48625

ADJUSTMENT PIN

$32.99

$

Usually ships in 5-8 days

0

16

BCS America 561.49854

ROTARY HOE KNIFE ROD

$

$

Currently unavailable

17

BCS America 561.49855

ROTARY HOE HOOD ROD

$20.99

$

Usually ships in 5-8 days

0

18

BCS America 562.02628

SPACER RING

$10.99

$

Usually ships in 5-8 days

0

19

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

20

BCS America 580.42468

RUBBER WHEEL D 22

$

$

Currently unavailable

21

BCS America 58048460

RENTAL RIGHT KNIFE

$21.99

$

Usually ships in 5-8 days

0

22

BCS America 580.48461

RENTAL LEFT KNIFE

$21.99

$

Usually ships in 5-8 days

0

23

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

24

BCS America 580.59275

UNIVERSAL LEFT KNIFE

$15.99

$

In Stock, Qty 10

0

25

BCS America 580.59276

UNIVERSAL RIGHT KNIFE

$15.99

$

In Stock, Qty 10

0

26

BCS America 590.48422

SPACER KNIVES

$113.99

$

In Stock, only 1 left!

0

27

BCS America 590.48435

BLADE HOLDER FLANGE D 25

$156.99

$

Usually ships in 5-8 days

0

28

BCS America 59049850

CENTRAL KNIFE

$149.99

$

In Stock, only 1 left!

0

29

BCS America 922.42465

TRANSPORT WHEEL ASSEMBLY

$

$

Currently unavailable

30

BCS America T20U

20" UNIVERSAL TINE KIT

$

$

Not available

31

BCS America T26U

26" UNIVERSAL TINE KIT

$184.99

$

In Stock, only 1 left!

0

32

BCS America T30U

30" UNIVERSAL TINE KIT

$234.00

$

Usually ships in 5-8 days

0

33

BCS America T20R

20" RENTAL TINE KIT

$287.78

$

Usually ships in 5-8 days

0

34

BCS America T26R

26" RENTAL TINE KIT

$319.50

$

Usually ships in 5-8 days

0

35

BCS America T30R

30" RENTAL TINE KIT

$

$

Not available
