Tiller - BCS America Spline Shaft PTO Rotary Tiller Attachment (1984 - 1994) Tiller Hood (SN: 10000 & Above) Parts Diagram

Spline Shaft PTO Rotary Tiller Attachment

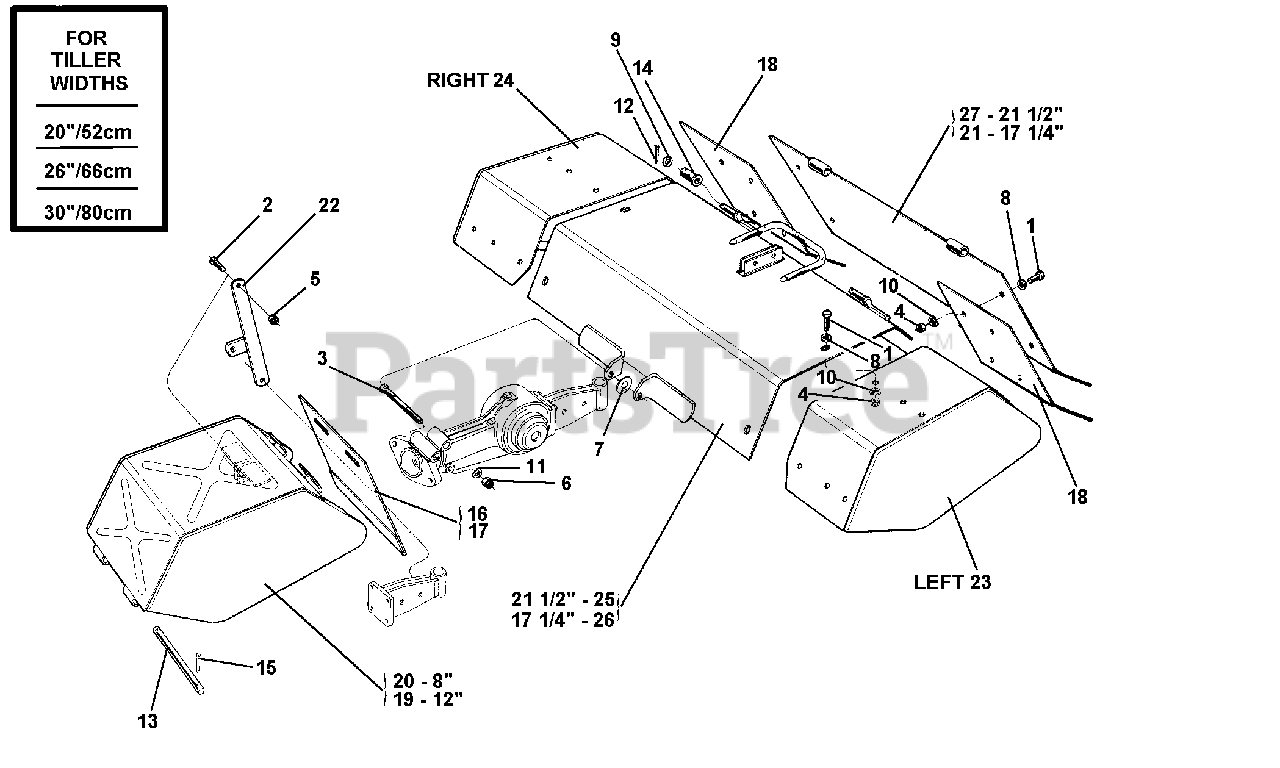

Tiller Hood (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.12151

SCREW M8 X 25

$1.49

$

In Stock, Qty 5

0

3

BCS America 311.12294

SCREW

$4.99

$

Usually ships in 5-8 days

0

4

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

6

31241120

NUT, SELF LOCKING M12

$

$

Not available

7

BCS America 314.10131

FLAT WASHER

$0.99

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 5

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, Qty 5

0

12

BCS America 341.10028

COTTER PIN Z 3 X 15 UNI 1336 AC.

$0.99

$

In Stock, only 2 left!

0

13

BCS America 341.10041

PIN, COTTER 4 X 25

$1.49

$

Usually ships in 5-8 days

0

14

BCS America 551.42109

BUSH

$2.99

$

Usually ships in 5-8 days

0

15

561.43449

PIN, HOOD

$

$

Not available

16

561.43458

FLAP, HOOD L 300

$

$

Not available

17

561.43463

FLAP, HOOD L 200

$

$

Not available

18

561.49867

SIDE FLAP

$

$

Not available

19

590.43456

ROTARY HOE COVER

$

$

Not available

20

590.43461

ROTARY HOE COVER

$

$

Not available

21

590.49865

CENTRAL FLAP

$

$

Not available

22

590.49871

COVER ROD

$

$

Not available

23

590.49888

LEFT SIDE

$

$

Not available

24

590.49889

RIGHT SIDE

$

$

Not available

25

590.49892

80 CM COVER CENTRAL CASING

$

$

Not available

26

590.49893

COVER CENTRAL CASING

$

$

Not available

27

590.49894

HOE CENTRAL FLAP

$

$

Not available
