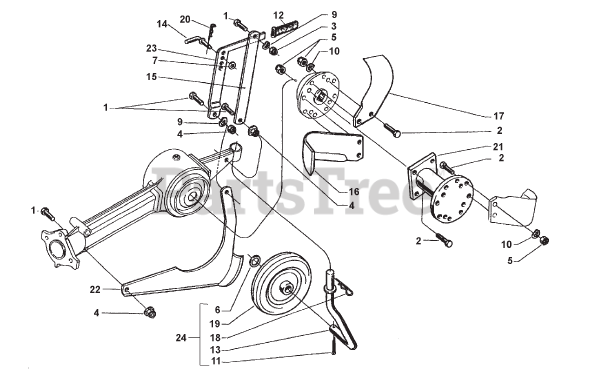

Tiller - BCS America 33" Tiller Attachment for 946 & 948 Tractors Tines & Depth Control Parts Diagram

946 & 948 Tiller Attachment

Tines & Depth Control Parts Diagram

  • Title

1

BCS America 311.12211

CAPSCREW M10X30

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12264

CAPSCREW M12X35

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 31241100

LOCKNUT M10 STANDARD

$1.49

$

In Stock, only 2 left!

0

4

BCS America 312.41105

LOCKNUT M10 DEFORMED

$1.99

$

Usually ships in 5-8 days

0

5

31241120

NUT SELF LOCKING M12

$

$

Not available

6

BCS America 314.00181

WASHER

$

$

Currently unavailable

7

BCS America 314.11104

WASHER FLAT M10.5X18

$0.99

$

In Stock, only 4 left!

0

8

BCS America 314.21253

WASHER SUPER M18

$9.49

$

Usually ships in 5-8 days

0

9

BCS America 314.23105

WASHER WAVEY B M10.5

$1.49

$

In Stock, Qty 5

0

10

BCS America 31423130

WASHER WAVY LOCK B M13

$1.49

$

In Stock, only 3 left!

0

11

BCS America 341.10042

PIN COTTER A 4X30

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

13

BCS America 561.42467

AXLE SUPPORT

$

$

Currently unavailable

14

BCS America 561.48625

PIN ADJUSTMENT

$32.99

$

Usually ships in 5-8 days

0

15

BCS America 561.49705

BAR

$18.99

$

Usually ships in 5-8 days

0

16

BCS America 565.49707

TINE WIDE LEFT

$32.99

$

In Stock, Qty 5

0

17

BCS America 565.49708

TINE WIDE RIGHT

$32.99

$

In Stock, Qty 5

0

18

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

19

BCS America 580.42468

RUBBER WHEEL

$

$

Currently unavailable

20

BCS America 580.50533

CLIP

$1.99

$

In Stock, only 2 left!

0

21

BCS America 59049690

SPINDLE

$168.99

$

In Stock, only 2 left!

0

22

BCS America 590.49702

KNIFE, CENTER

$242.99

$

Usually ships in 5-8 days

0

23

BCS America 590.49734

KNIFE ROD

$65.99

$

Usually ships in 5-8 days

0

24

BCS America 922.42465

TILLER TRANSPORT WHEEL

$

$

Currently unavailable
