Tiller 2 (2B) - Cub Cadet Tiller Attachment Implement Handle Helper Spring B Parts Diagram

Tiller Attachment

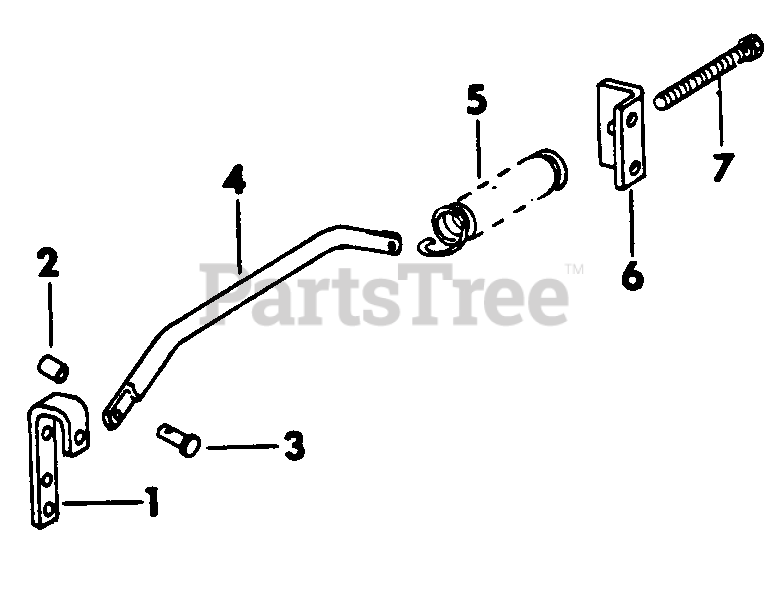

Implement Handle Helper Spring B Parts Diagram

  • Title

Cub Cadet 548-380-R91

Parts Accessory, Implement Handle Helper Spring

$

$

Currently unavailable

1

Cub Cadet 548-381-R1

Lever, Helper Spring

$

$

Currently unavailable

Cub Cadet IH-180078

Screw, 5/16-18 X 7/8 Znd Hex-Hd Cap
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 878-986-R1

Spacer, 1/4 X 5/8 Std Pipe

$

$

Currently unavailable

3

Cub Cadet 21-941-R1

Pin, 5/16 X 1-7/8 Znd Std-Hd

$

$

Currently unavailable

Cub Cadet 12-235-R1

Pin, 1/8 X 5/8 C-Z Cot

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

4

Cub Cadet 548-382-R1

Rod, Helper Spring

$

$

Currently unavailable

5

Cub Cadet 485-298-R1

Spring, Tension

$

$

Currently unavailable

6

Cub Cadet 548-383-R1

Bracket, Helper Spring

$

$

Currently unavailable

Cub Cadet IH-180120

Screw, 3/8-16 X 3/4 Znd Hex-Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 385-351-R1

Bolt, Adjustment

$

$

Currently unavailable
