Tiller 1A - Cub Cadet Tiller Attachment Tines & Related Parts Parts Diagram

Tiller Attachment

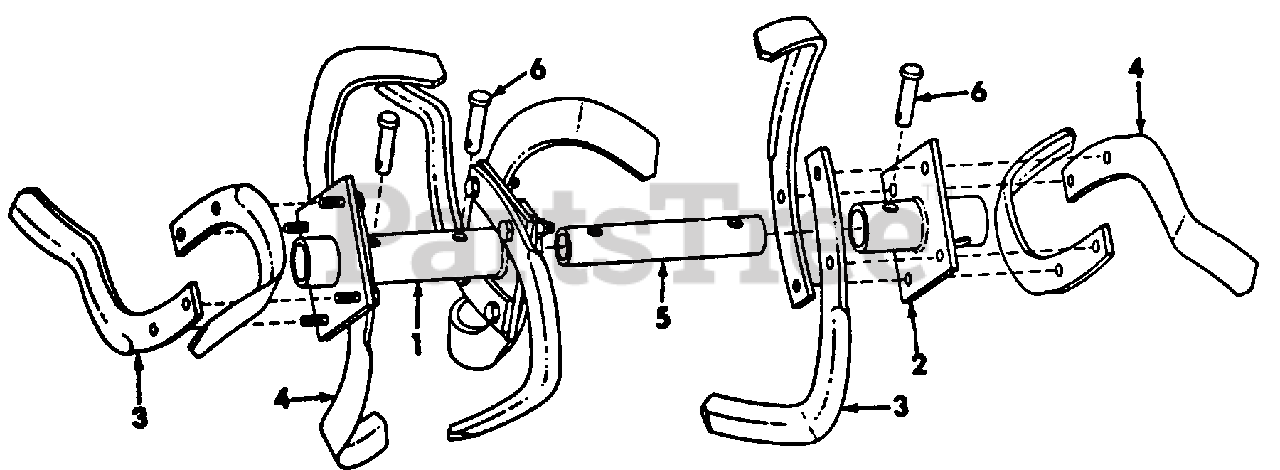

Tines & Related Parts Parts Diagram

  • Title

1

Cub Cadet 485-272-R1

Mounting, Tine - Long

$

$

Currently unavailable

2

Cub Cadet 485-273-R1

Mounting, Tine -Short -Used w/extension

$

$

Currently unavailable

3

Cub Cadet 485-348-R1

Tine, LH -12 used w/Extension

$

$

Currently unavailable

4

Cub Cadet 485-349-R1

Tine, RH -12 used w/Extension

$

$

Currently unavailable

Cub Cadet 274-636

Nut, 7/16-20 Cdp Hex Lock -24 used w/Extension

$

$

Currently unavailable

Cub Cadet 181-670

Screw, 7/16-20 X 1-1/2 C-Z Hex-Hd Cap -24 used w/Extension

$

$

Currently unavailable

5

Cub Cadet 485-274-R1

Shaft, Extension -2 Used w/Extension

$

$

Currently unavailable

6

Cub Cadet 362-840-R1

Pin, Shear -6 used w/Extension

$

$

Currently unavailable

Cub Cadet IH-120169

Pin, 5/32 X 1 C-Z Cot -6 used w/Extension

$

$

Not available

Cub Cadet 485-287-R1

Tooth, Center

$

$

Currently unavailable

Cub Cadet 17-351-R1

Bolt, 3/8-16 X 1 C-Z Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-274993

Nut, 3/8-16 Cdp Hex Lock
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6
